Peluso Microphone Lab, LLC

Peluso P-12 Large Diaphragm Condenser Tube Microphone

Regular price $1,749.00 USD
Regular price Sale price $1,749.00 USD
Shipping calculated at checkout.

Description

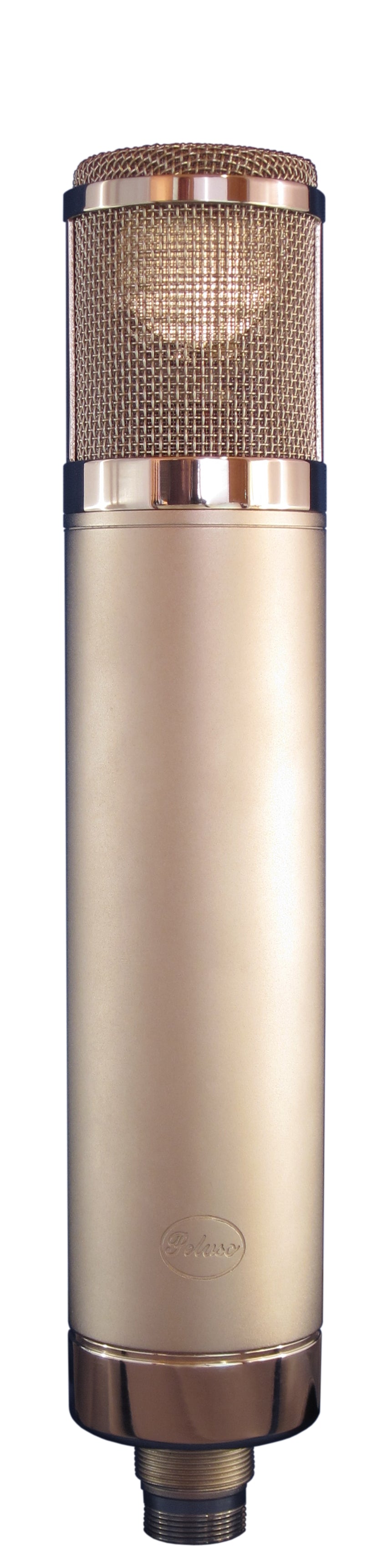

The Peluso P-12 Tube Microphone is styled after AKG's legendary "C 12". Produced from 1953 to 1963, the C 12 is considered one of history's finest microphones. It was one of the first condenser microphones to provide remote switching between nine polar patterns. The dual blackplate of the 34mm edge-terminated CK12 (CEK12) capsule enabled this advancement. The heart of its amplifier stage is the warm and quiet 6072A glass triode vacuum tube. The amplifier circuitry and output transformer of our P-12 have been designed to match the vintage C 12. Carefully selected components, thorough testing, and attention to detail all come together in this beautiful full-bodied classic tube microphone. The P-12 faithfully reproduces the clarity, openness, and top-end air that made the C 12 one of the world's finest vocal microphones!

The P-12 is paired with the Peluso MX-56 power supply. The dual sided capsule in the P-12 enables the power supply to feature 9 polar patterns in an array from omni-directional to cardioid to figure eight.

The P-12 features our heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.

Acoustically matched pairs are available upon special request. Simply add two microphones to the shopping cart and then also add the Peluso Precision Acoustic Stereo Matching item to the cart. Peluso would then do the matching work and ship two acoustically matched microphones straight to you.

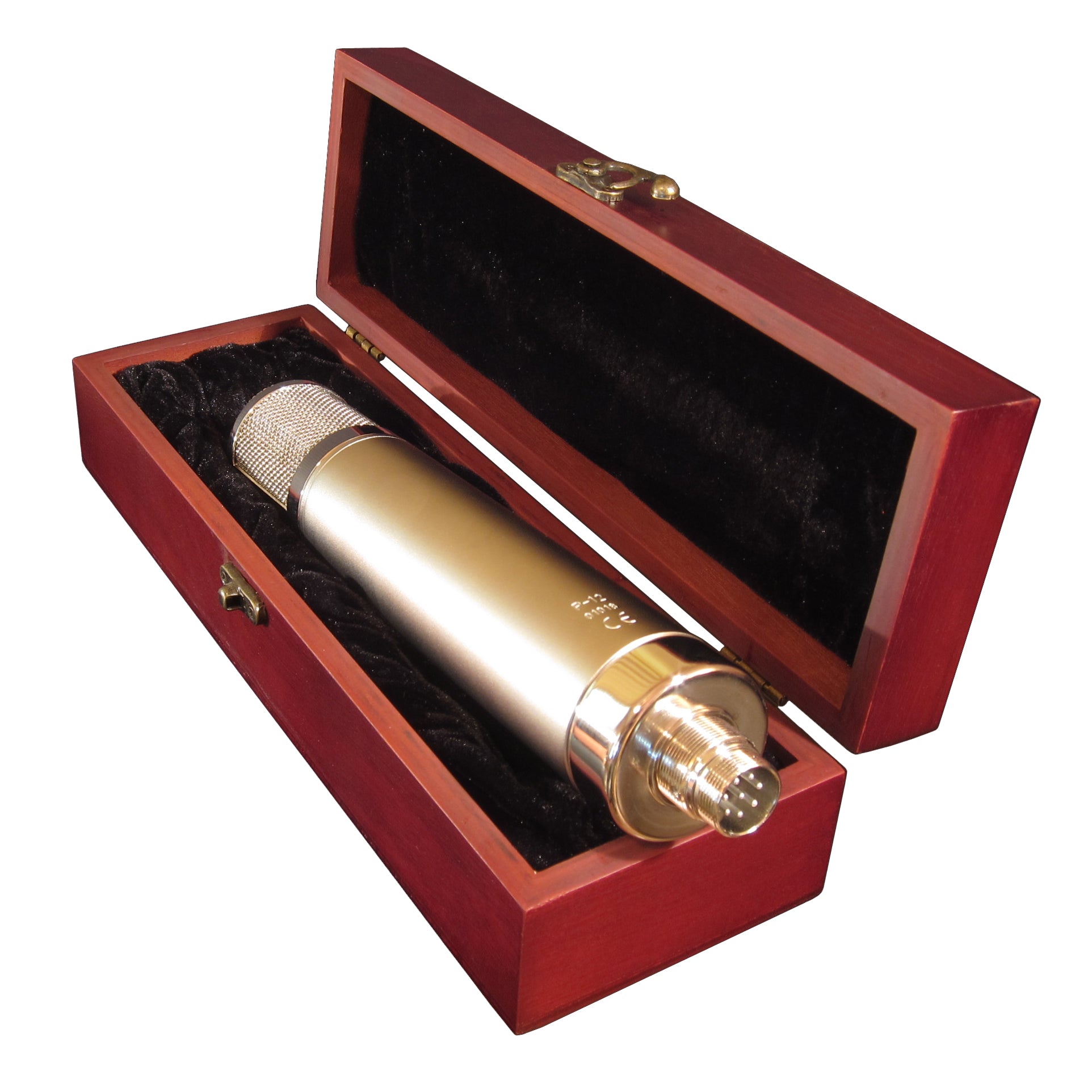

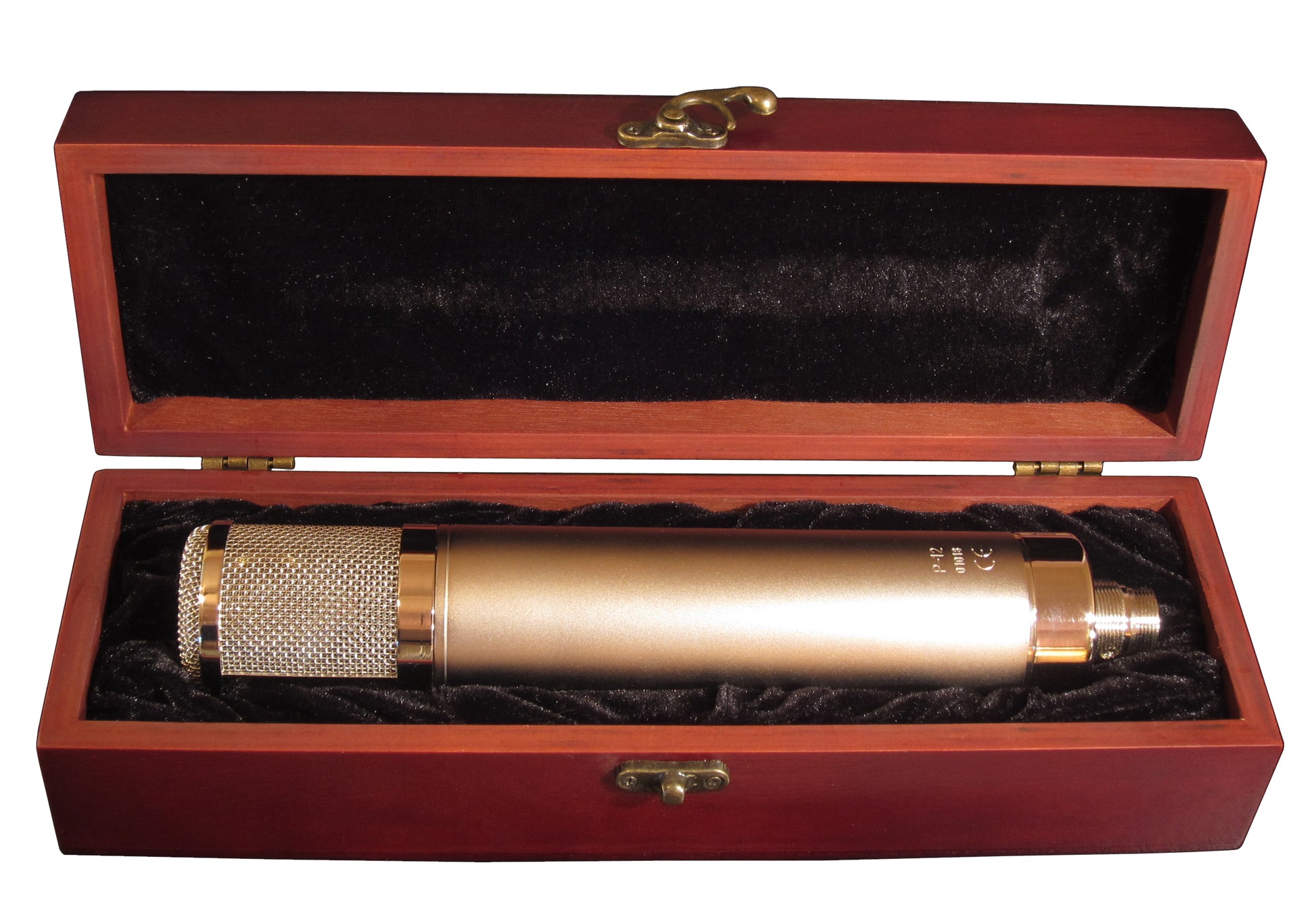

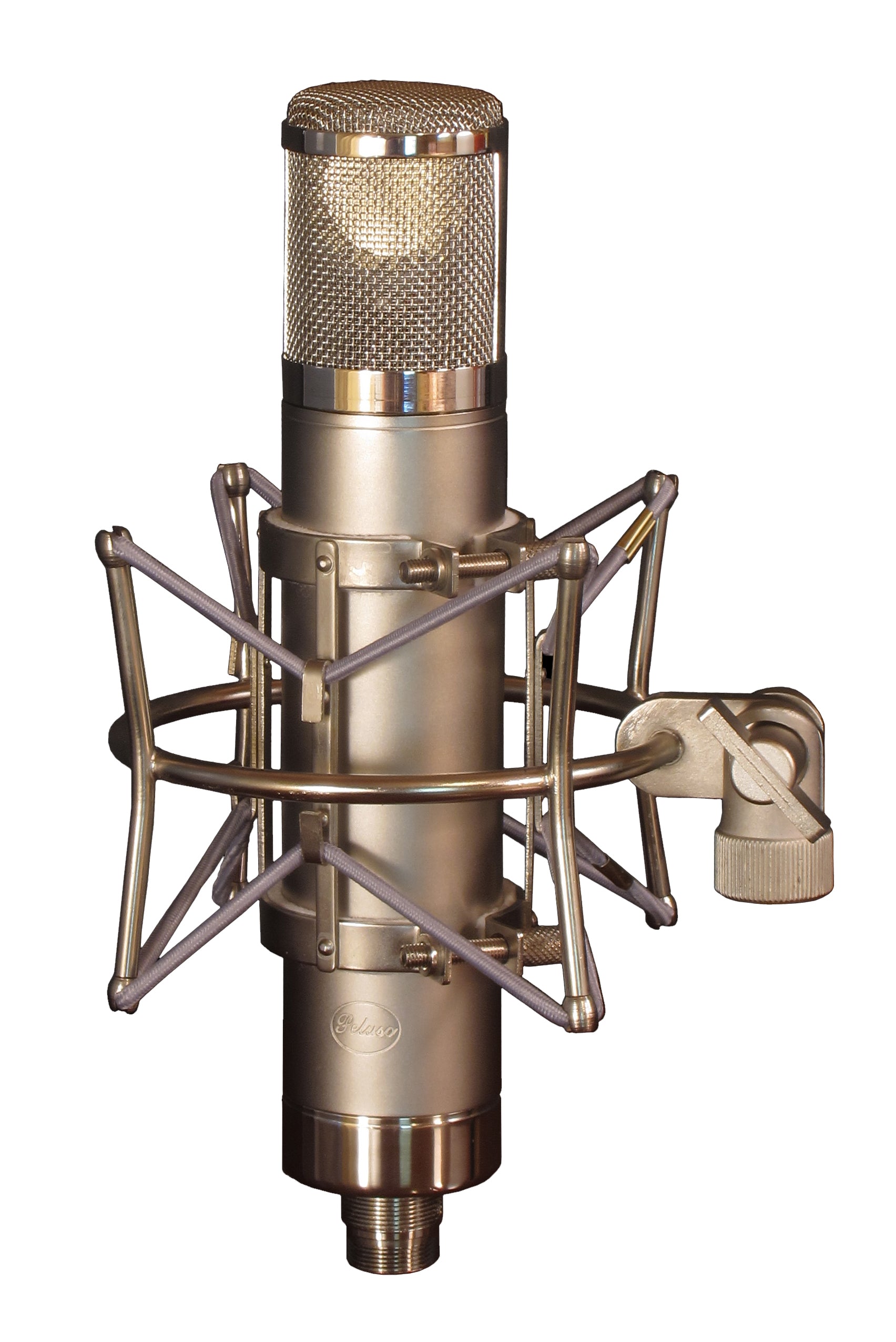

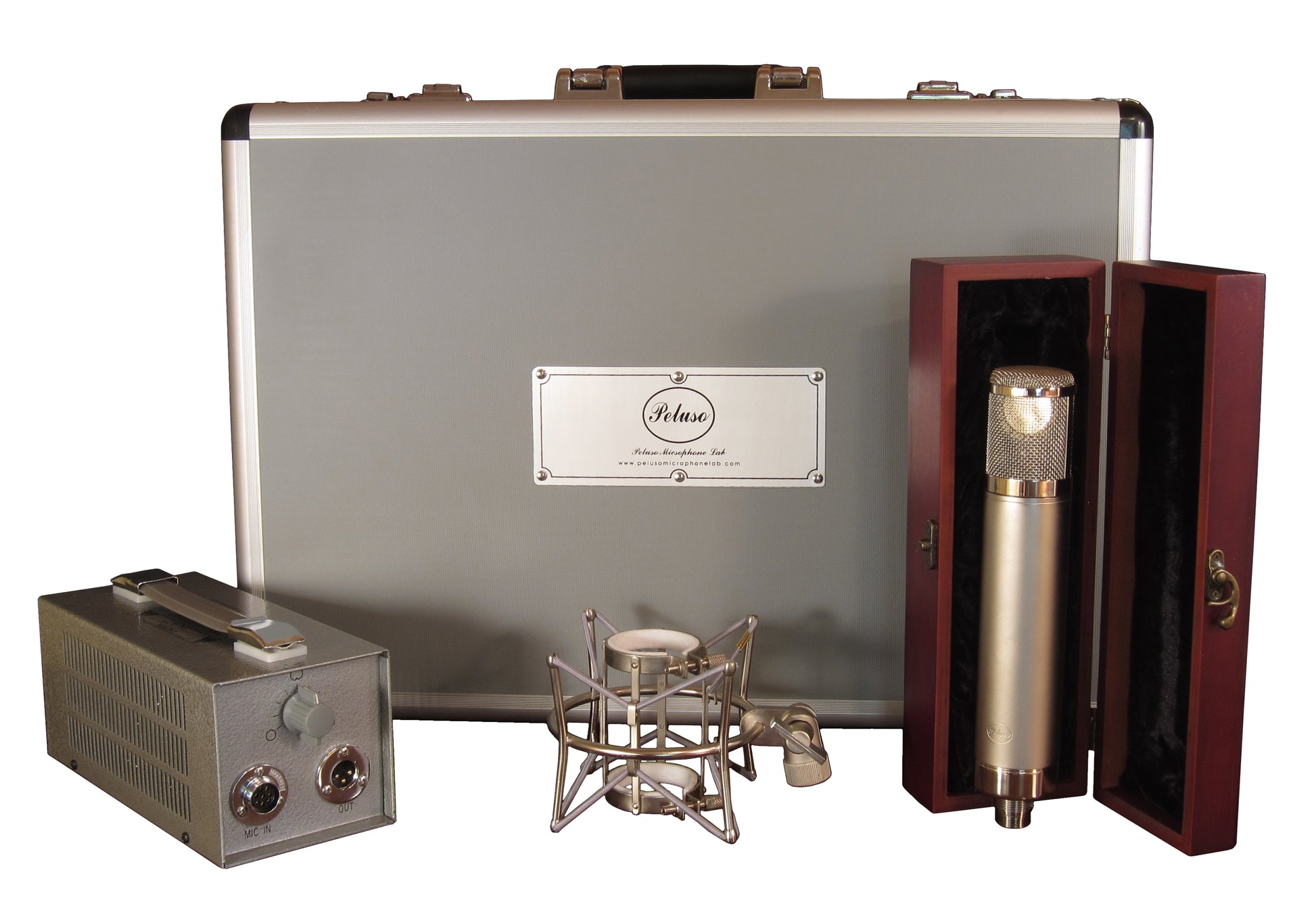

Microphone kit comes as a complete system including: P-12 Microphone in a Wood Box, MX-56 Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.

Technical Data

Capsule Type: Condenser Pressure Gradient w/ 34mm edge-terminated capsule
Frequency Range: 20Hz/24Khz
Polar Pattern: 9 - Switchable from omni- to bi-directional
Sensitivity: 11 mv/pa
Impedance: 200 ohms
SPL: 138 dB
Equivalent Noise: 15 dB(A)
Tube Type: 6072A-M
Power Requirements: Dedicated Power Supply, 115V or 230V AC
Size: 45mm x 240mm
Weight: 750g
