Peluso TR-14 Tube Ribbon Microphone

Peluso TR-14 Tube Ribbon Microphone

Regular price $949.00 USD
Regular price Sale price $949.00 USD
Sale Sold out
Shipping calculated at checkout.


When designing the R 14, TR 14 and SR 14 microphones, Peluso wanted to create a classic vintage-style ribbon microphone in the vein of the early RCA microphones.

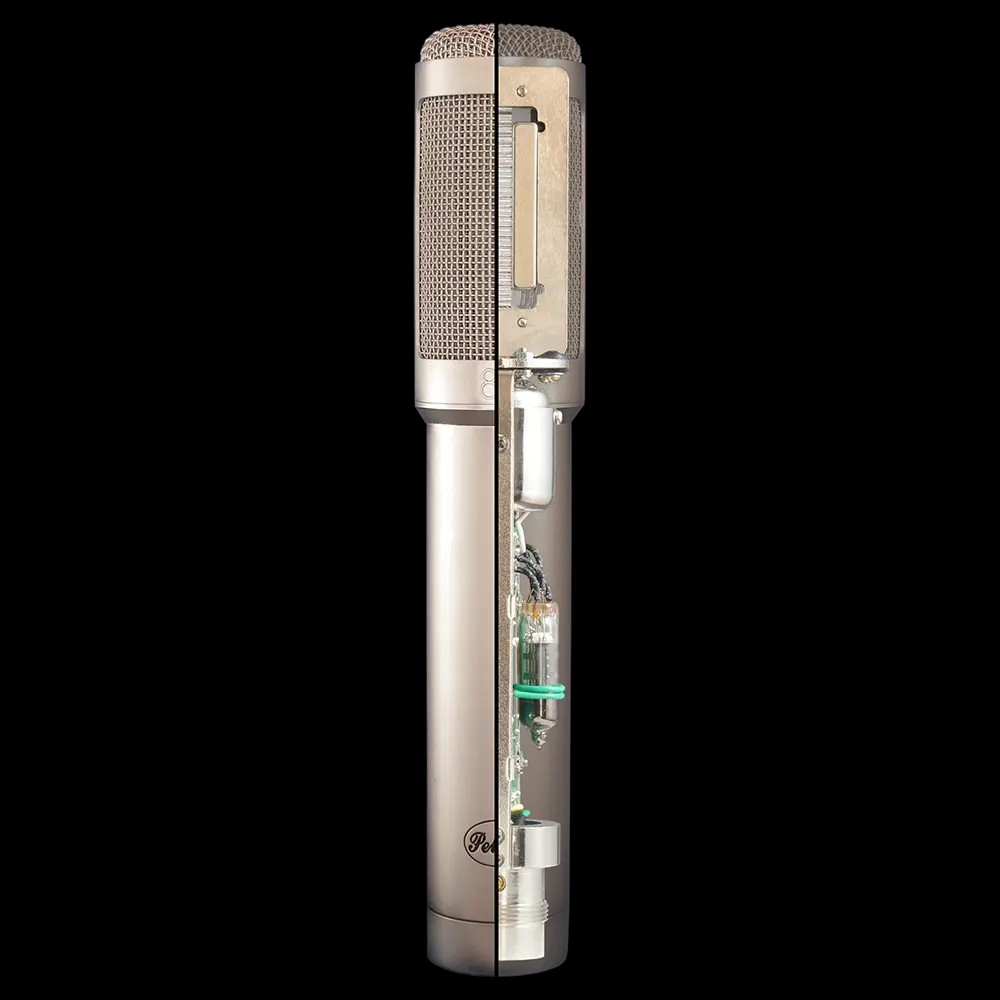

We used classic long ribbon geometry. Thin corrugated aluminum ribbon is tensioned between two rare earth neodymium magnets. As the ribbon moves with the ambient acoustic air pressure variation a current is induced in the ribbon itself. This current is the microphone's output signal. The ribbon is placed just forward of the magnet center. This provides a very slight low-end roll-off on the backside of the microphone, which can be very useful if proximity effect needs to be countered. To handle low-level sources and long cable runs transparently we added a tube gain stage in the Peluso TR 14 Tube Ribbon Microphone. The TR 14 delivers clean balanced output through the use of a custom output transformer. Sonically the TR 14 delivers added harmonic complexity from the tube to the rich, warm, and silky smooth sound and generous low end of a ribbon microphone. It is un-hyped, natural, and takes EQ very nicely. The TR 14 ribbon microphone is the perfect complement to the condensers in your microphone collection.
  • Long Geometry Ribbon
  • Great for long cable runs
  • Glass Tube Amplifier Stage
  • Custom Wound Output Transformer

MSRP $1,116 USD

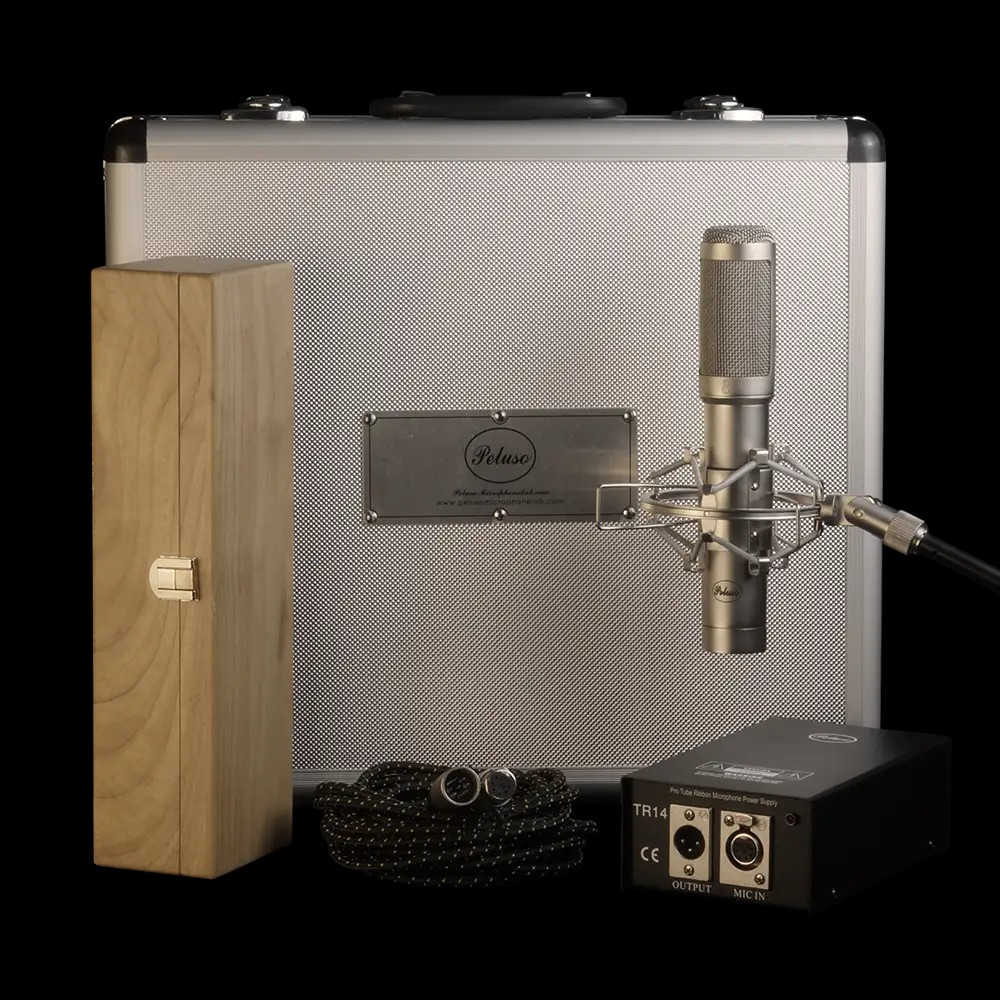

Microphone kit comes as a complete system including:

  • TR 14 Microphone
  • Wood Microphone Box
  • Power Supply
  • 7-Pin XLR Cable Assembly

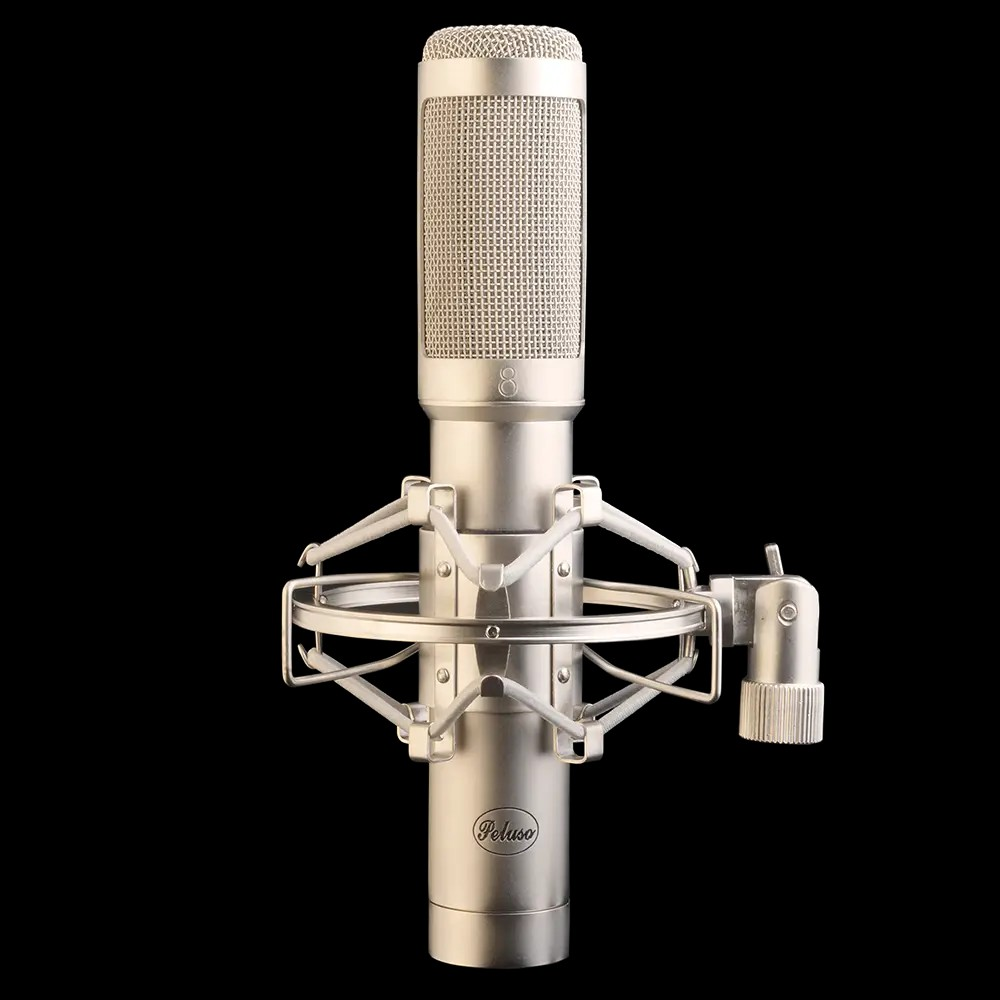

  • Shock Mount
  • Locking Padded Flight Case

TR 14 Technical Data

  • Type: Ribbon-Velocity Studio Microphone
  • Operating Principal: Electrodynamic Pressure Gradient
  • Magnets: Rare Earth Neodymium

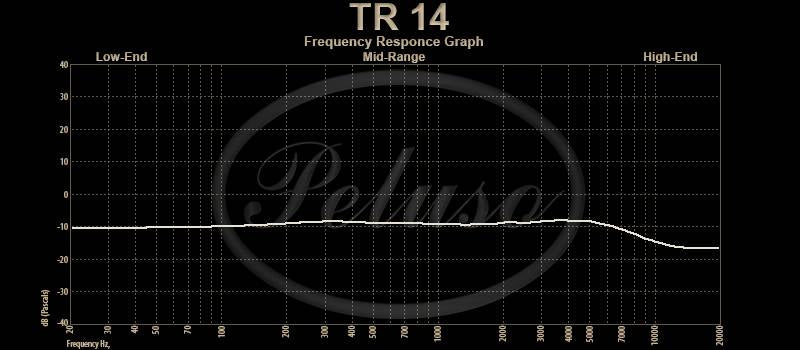

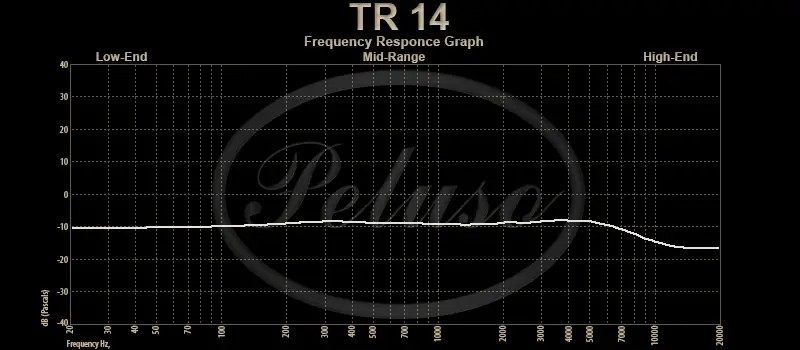

  • Frequency Range: 30Hz/16Khz
  • Polar Pattern: Figure of 8 (Bi-Directional)
  • Sensitivity: -35 dBV (re 1v/pa)
  • Impedance: 200 ohms
  • SPL: 149 dB
  • Equivalent Noise: 15 dB(A)
  • Tube Type: CK5784 / 6J1P sub-miniature glass tube
  • Power Requirements: Dedicated Power Supply, 115V or 230V AC
  • Size: 36mm x 210mm
  • Weight: 450g
