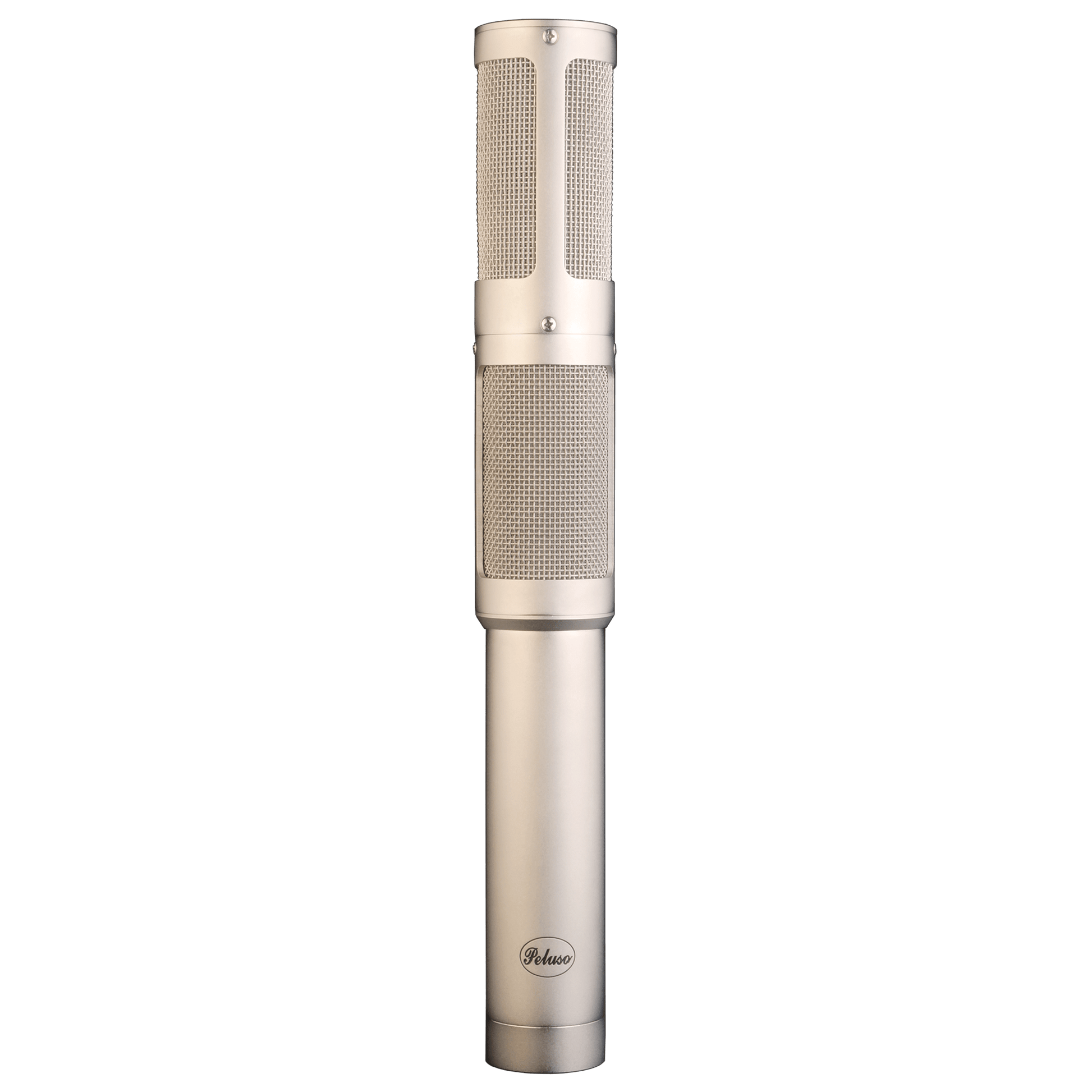

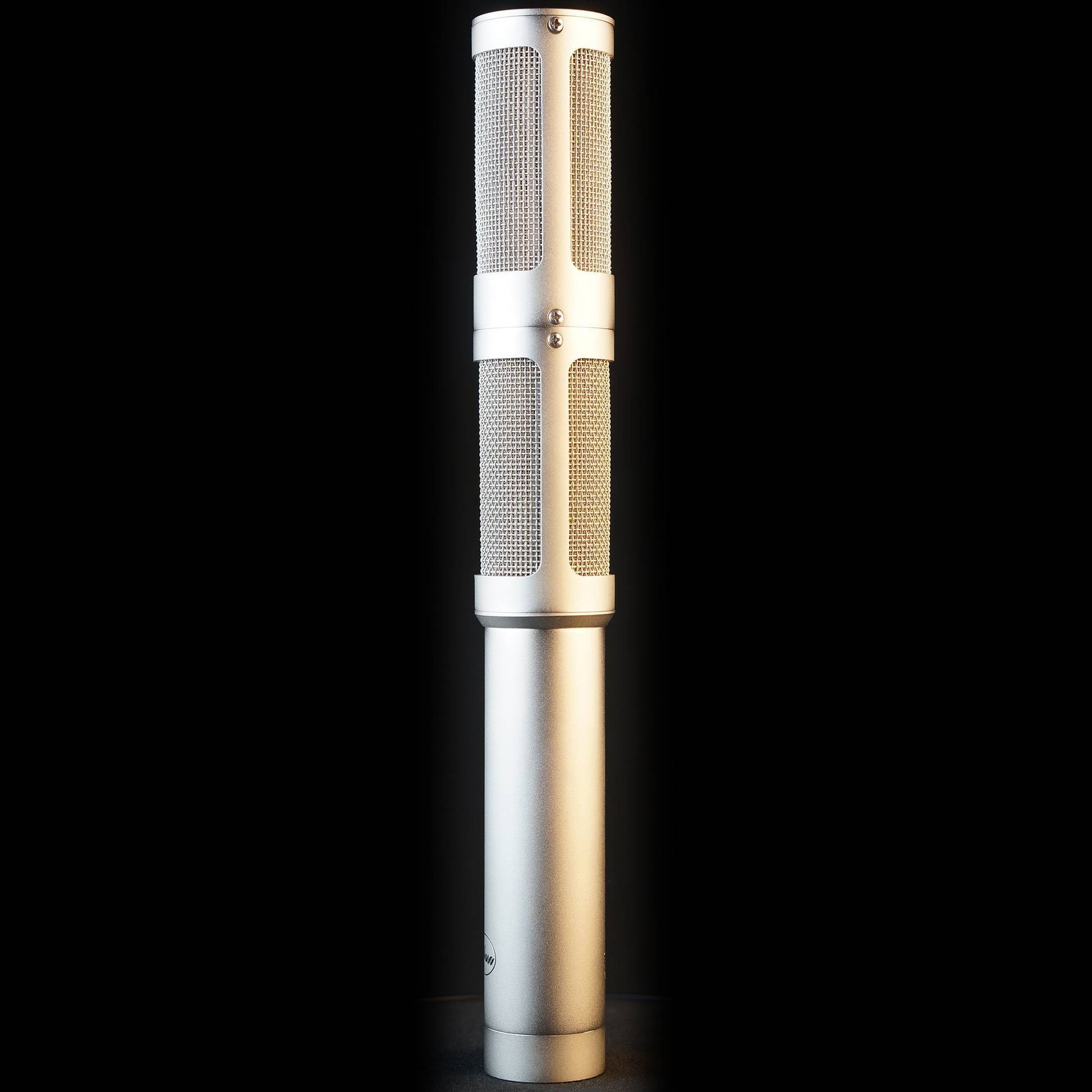

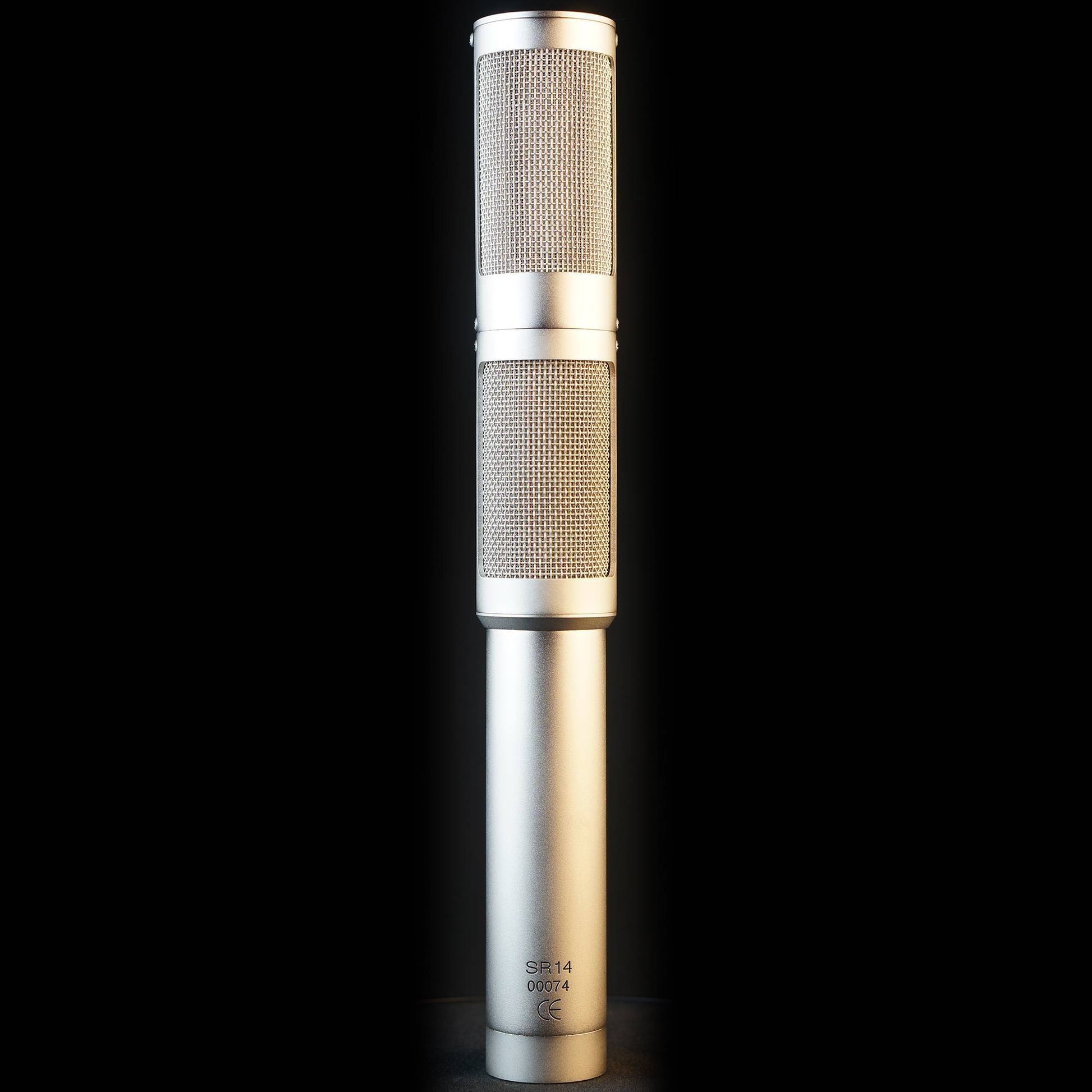

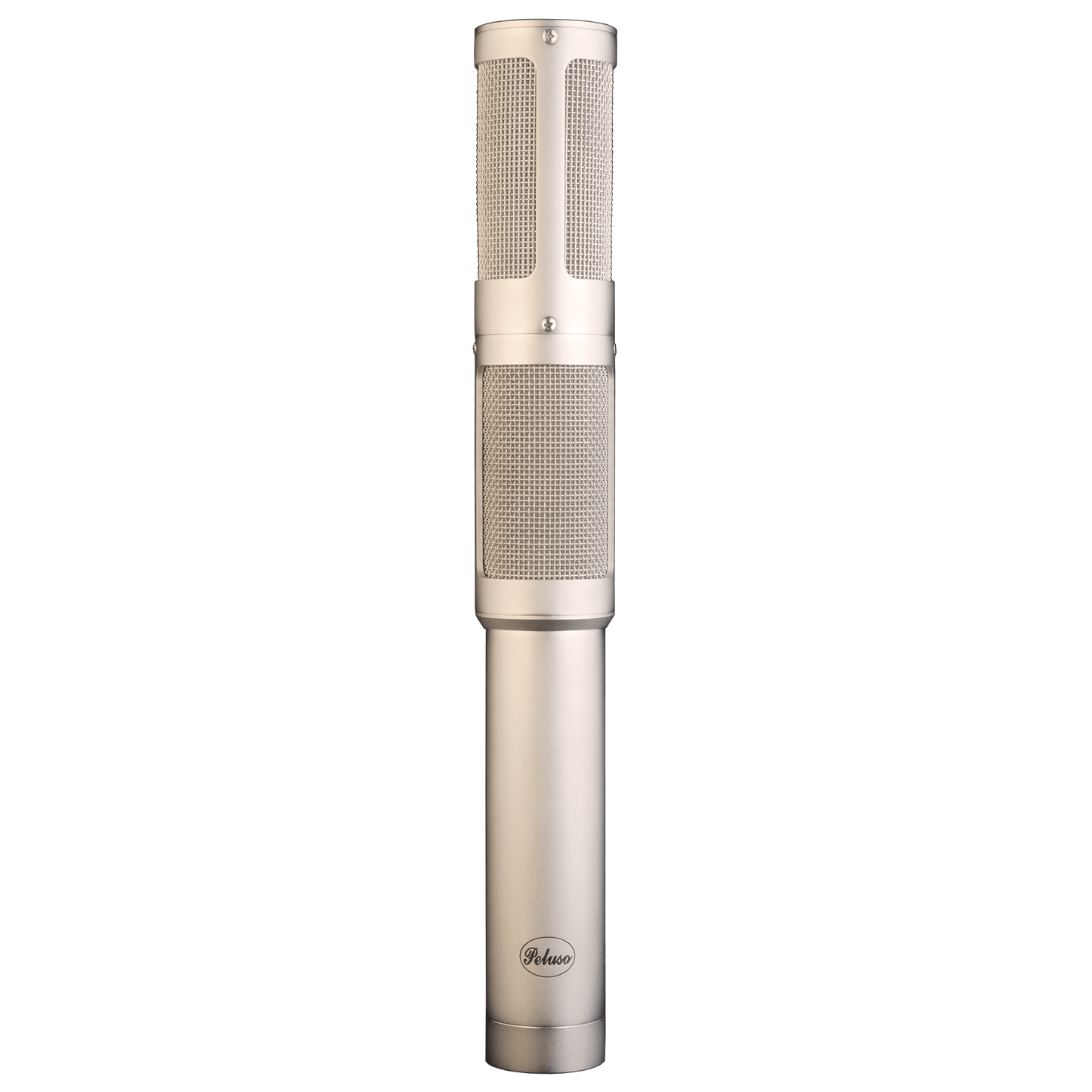

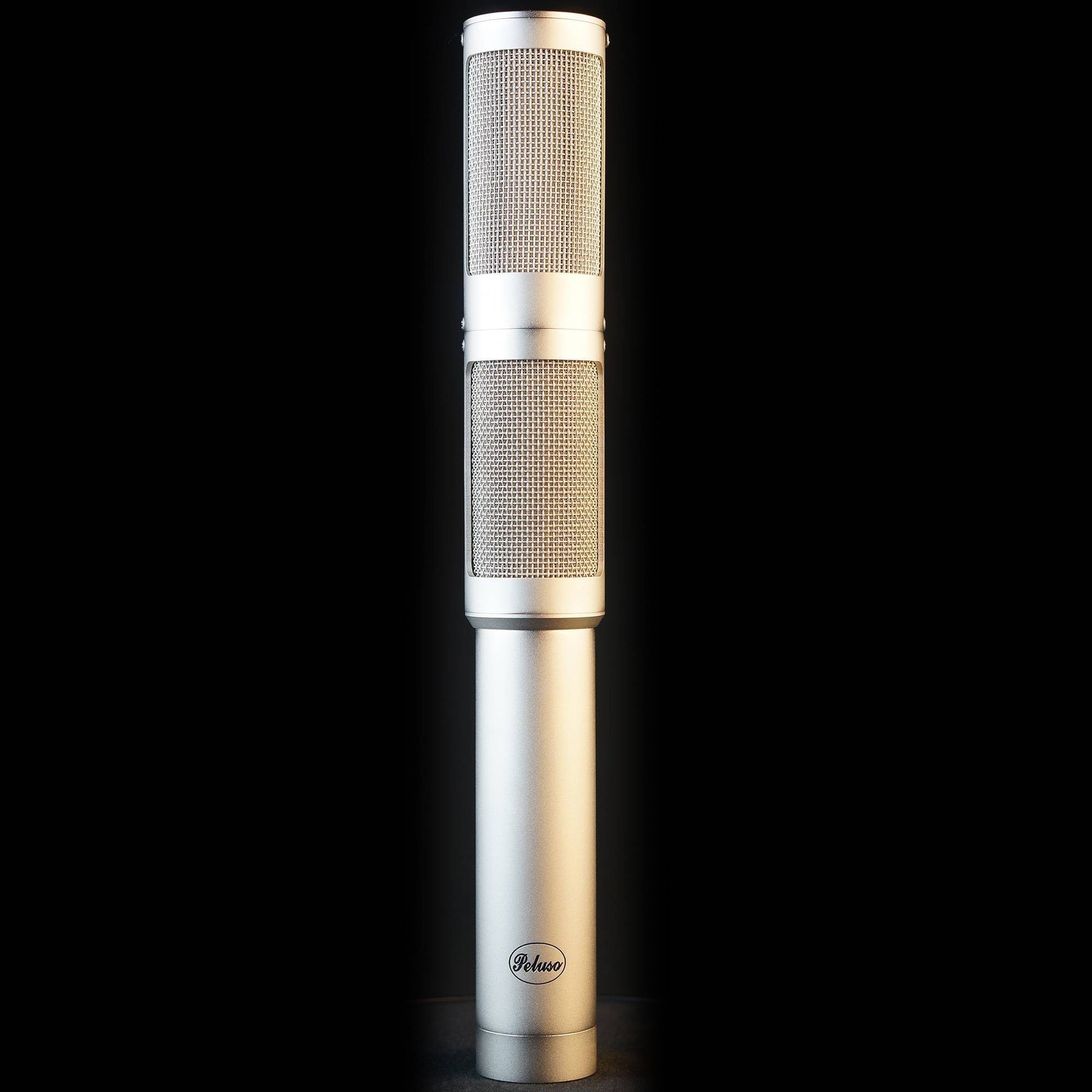

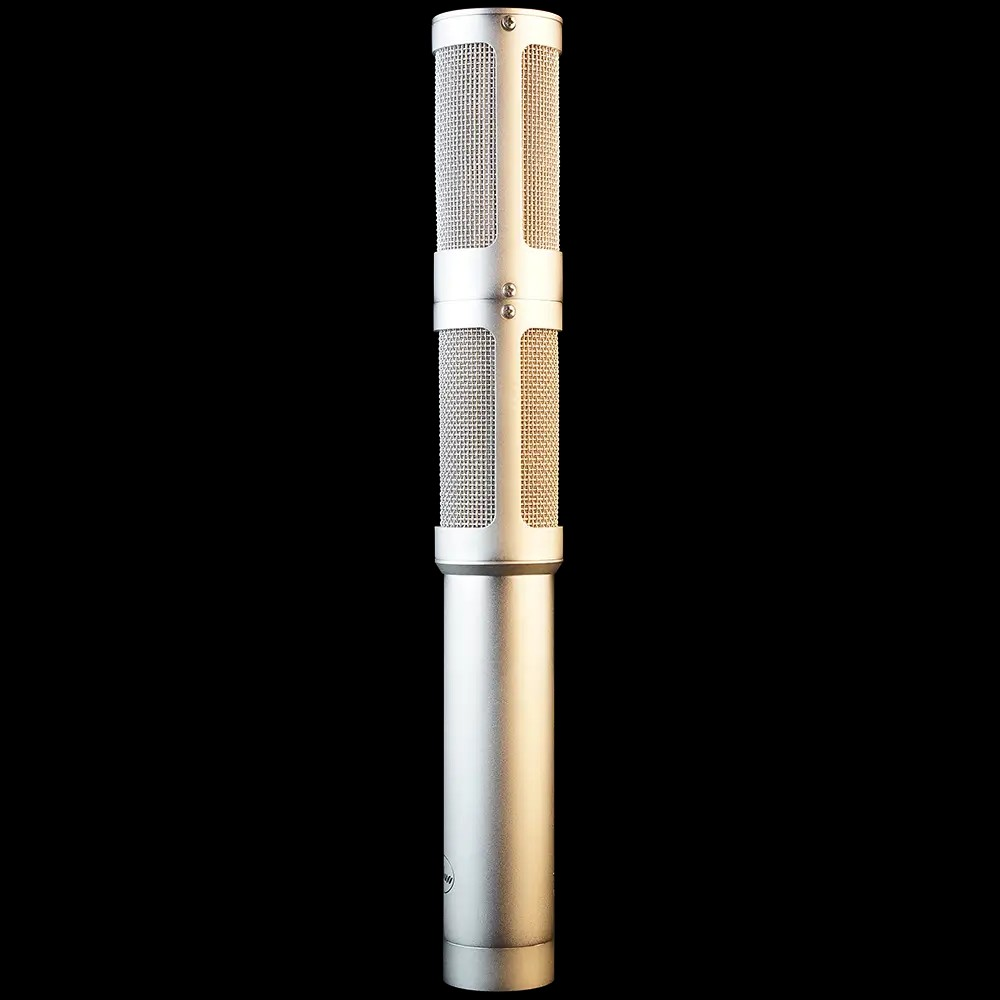

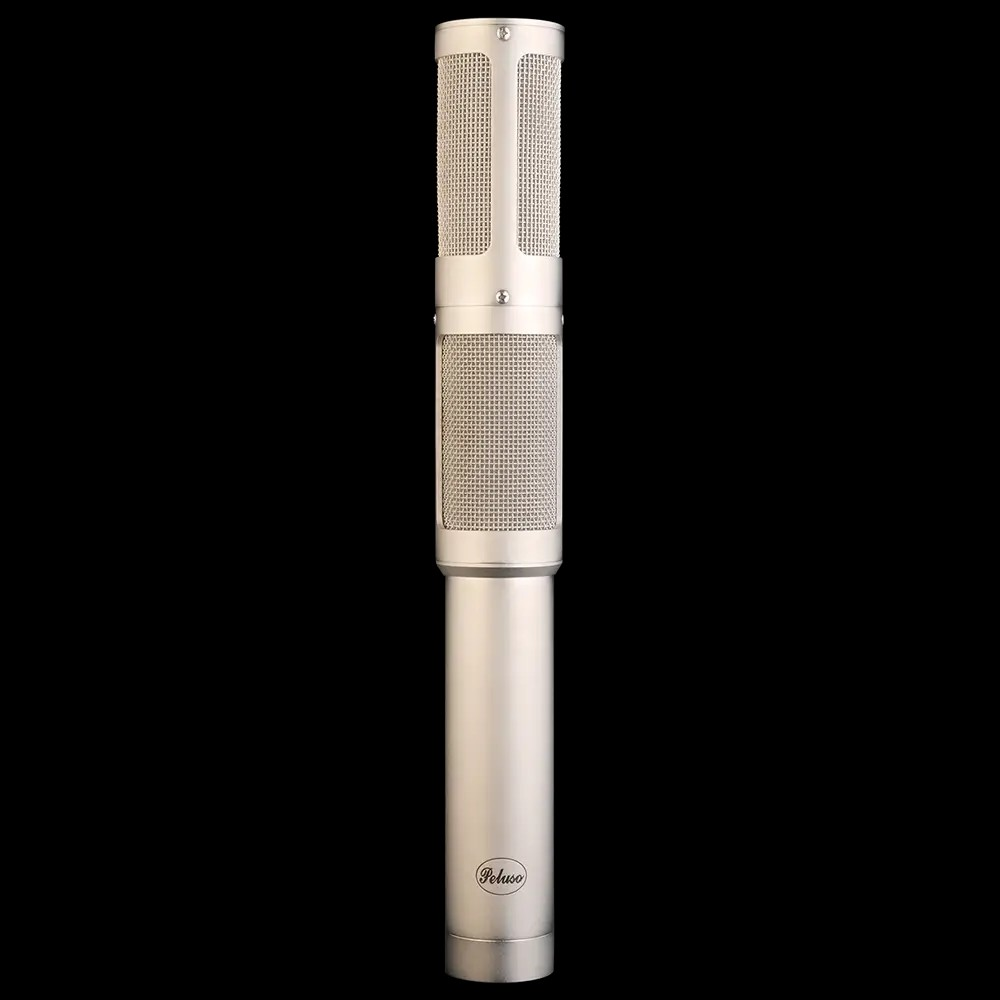

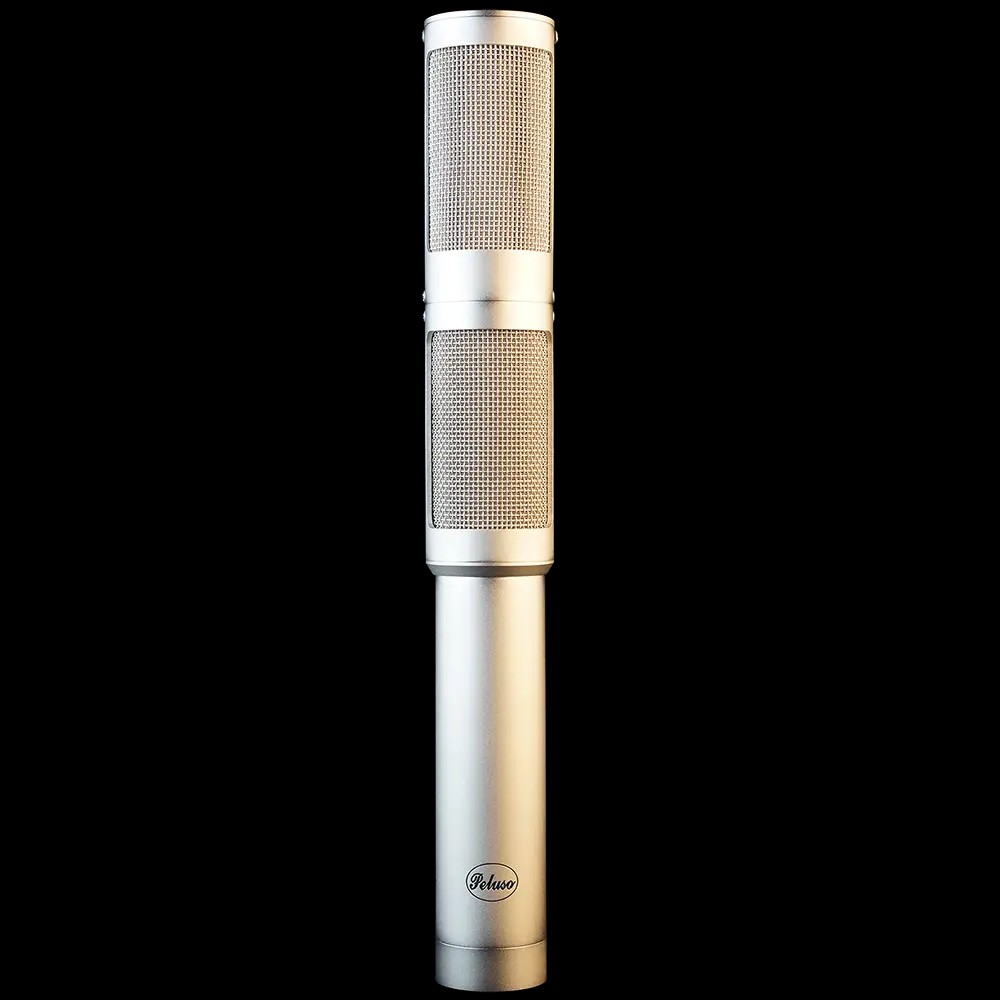

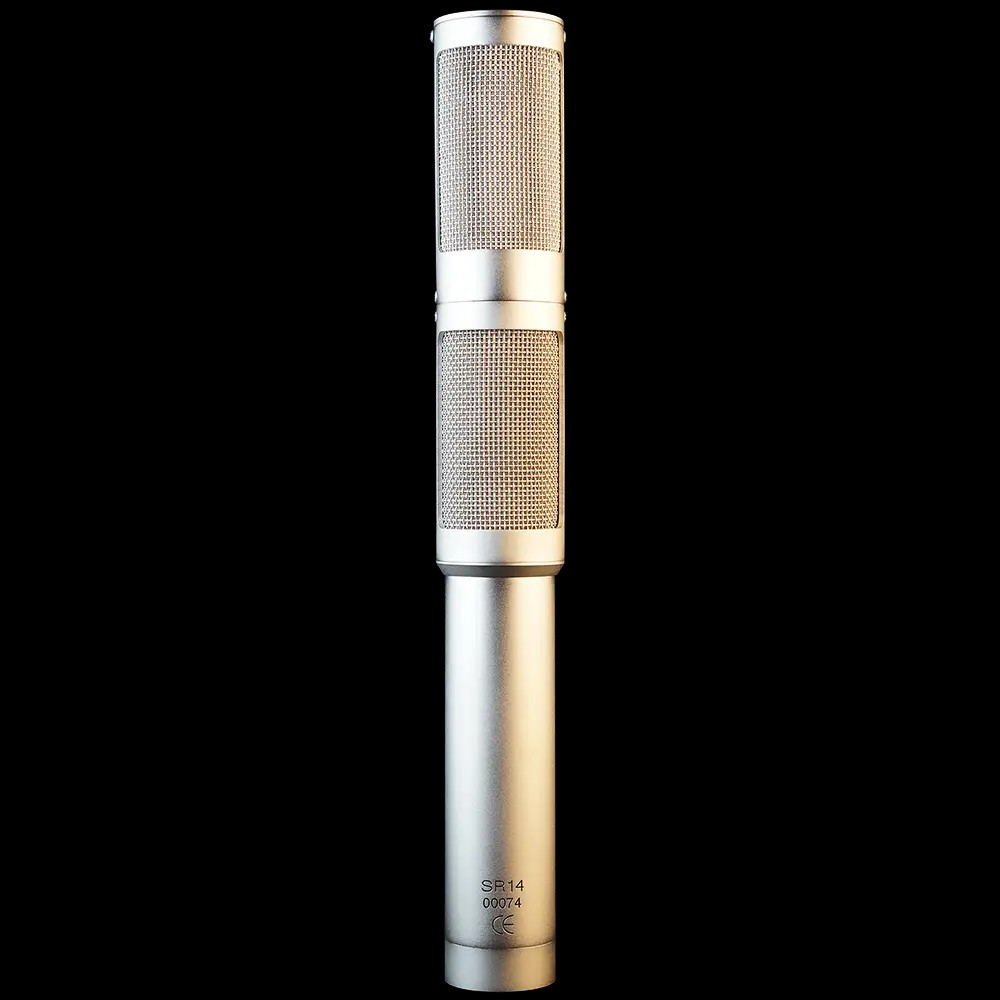

Peluso SR-14 Stereo Ribbon Microphone

Peluso SR-14 Stereo Ribbon Microphone

Regular price $1,249.00 USD
Regular price Sale price $1,249.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

When designing the R 14, TR 14 and SR 14 microphones we wanted to create a classic vintage-style ribbon microphone in the vein of the early RCA microphones.

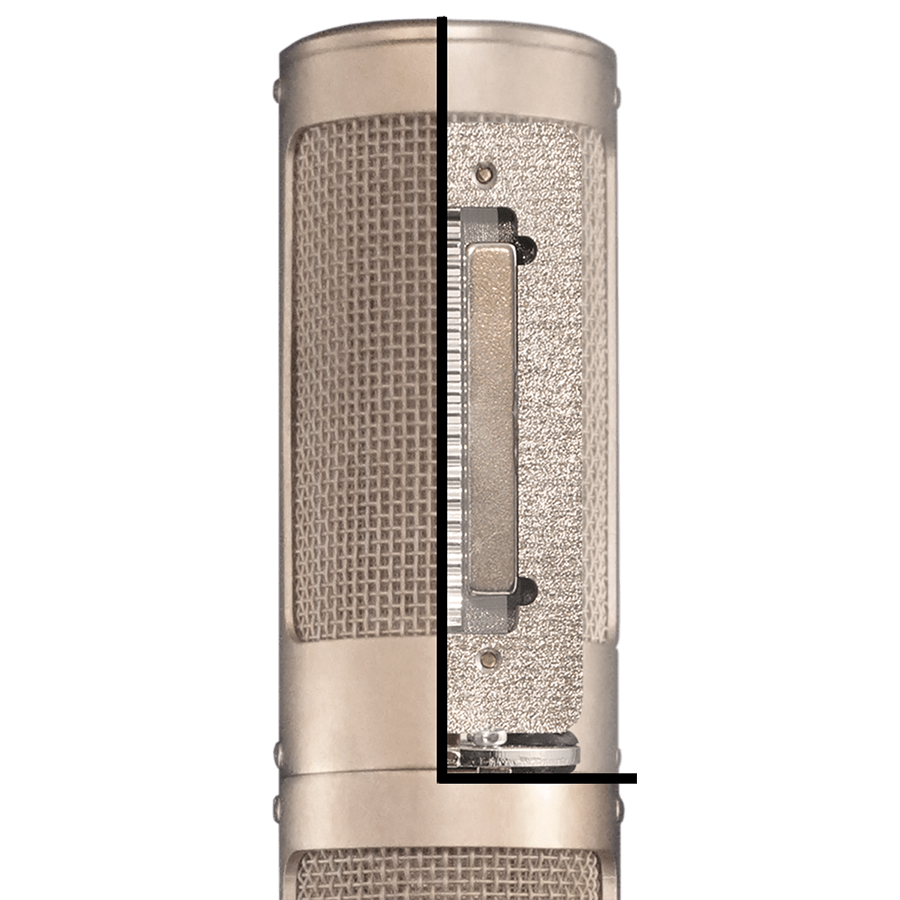

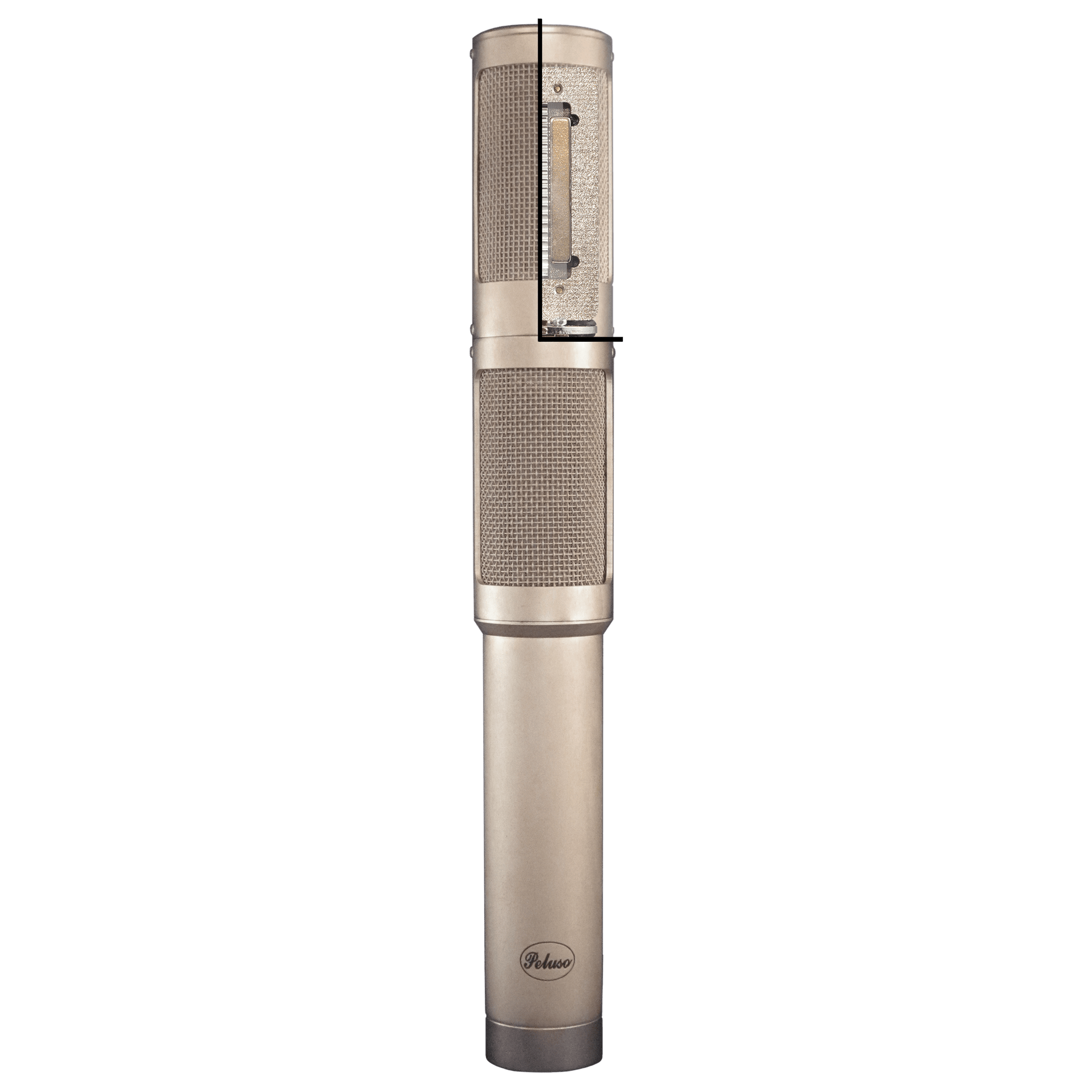

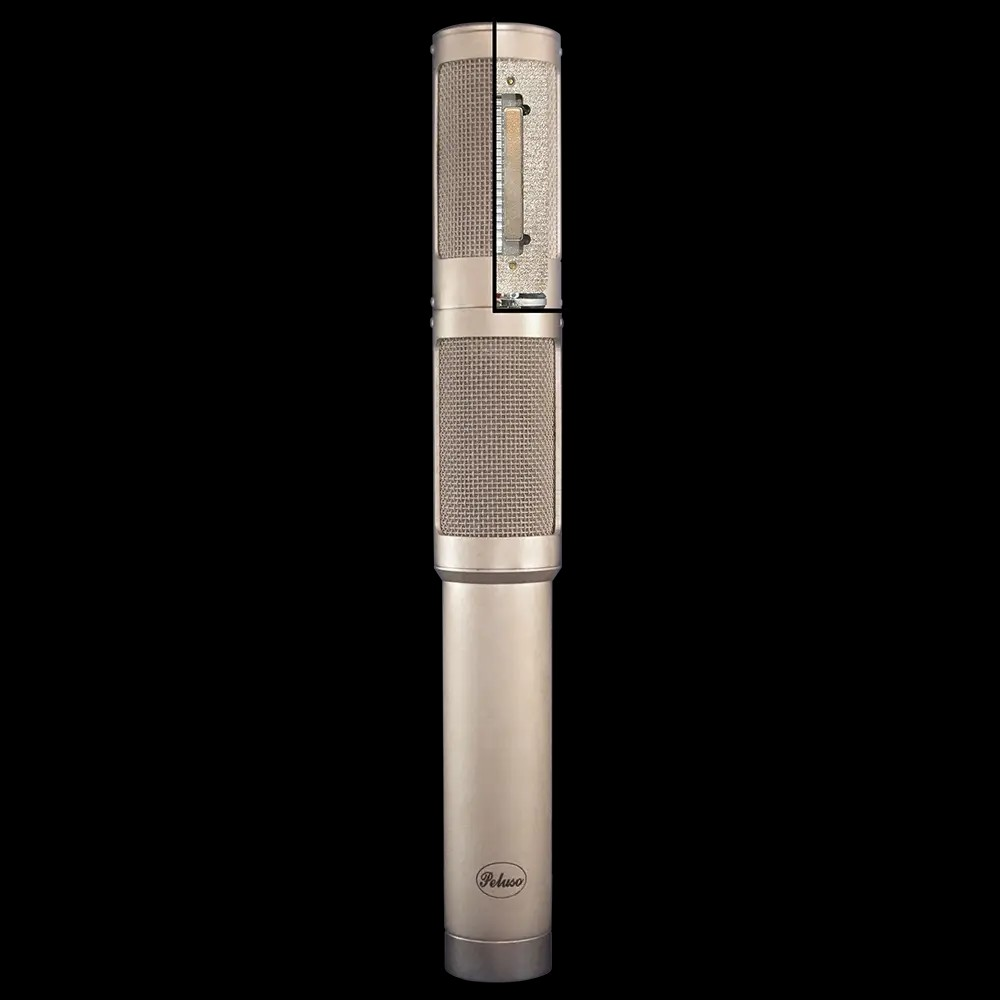

We used classic long ribbon geometry. Thin corrugated aluminum ribbon is tensioned between two rare earth neodymium magnets. As the ribbon moves with the ambient acoustic air pressure variation a current is induced in the ribbon itself. This current is the microphone's output signal. The ribbon is placed just forward of the magnet center. This provides a very slight low-end roll-off on the backside of the microphone, which can be very useful if proximity effect needs to be countered. We build our SR 14 with two complete R 14 microphones in one body with the upper ribbon element capable of up to a 90-degree rotation. This allows for the popular 'Blumlein technique', a mid-side set up, and other stereo recording techniques. The SR 14 delivers clean balanced output through the use of a custom output transformer. Sonically the SR 14 delivers the rich, warm, and silky smooth sound of a ribbon microphone with generous low end in a two channel stereo image. It is un-hyped, natural and takes EQ very nicely. The SR 14 ribbon microphone is the perfect stereo complement to the condensers in your microphone collection.
  • Long Geometry Ribbon
  • Classic Ribbon Sound
  • Very Low Self Noise
  • Handle Very High SPL
  • Custom Wound Output Transformer

MSRP $ 1,469USD

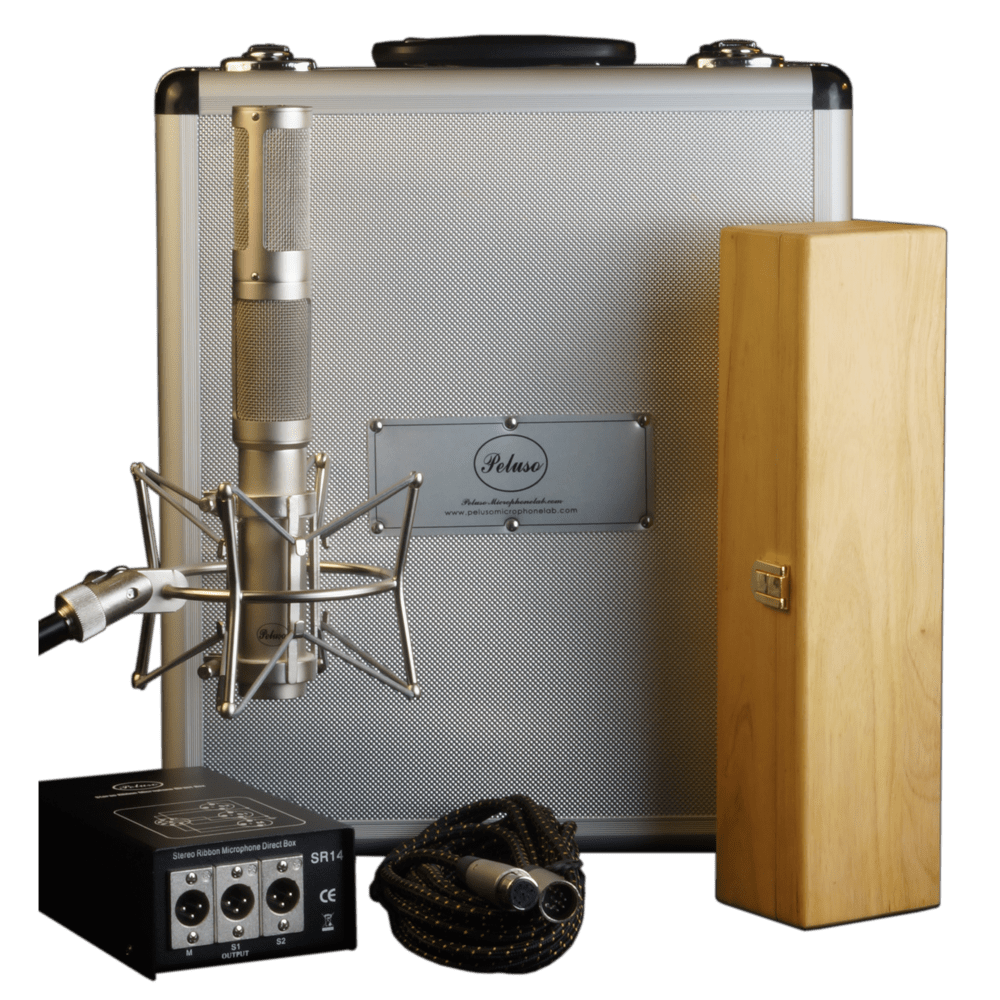

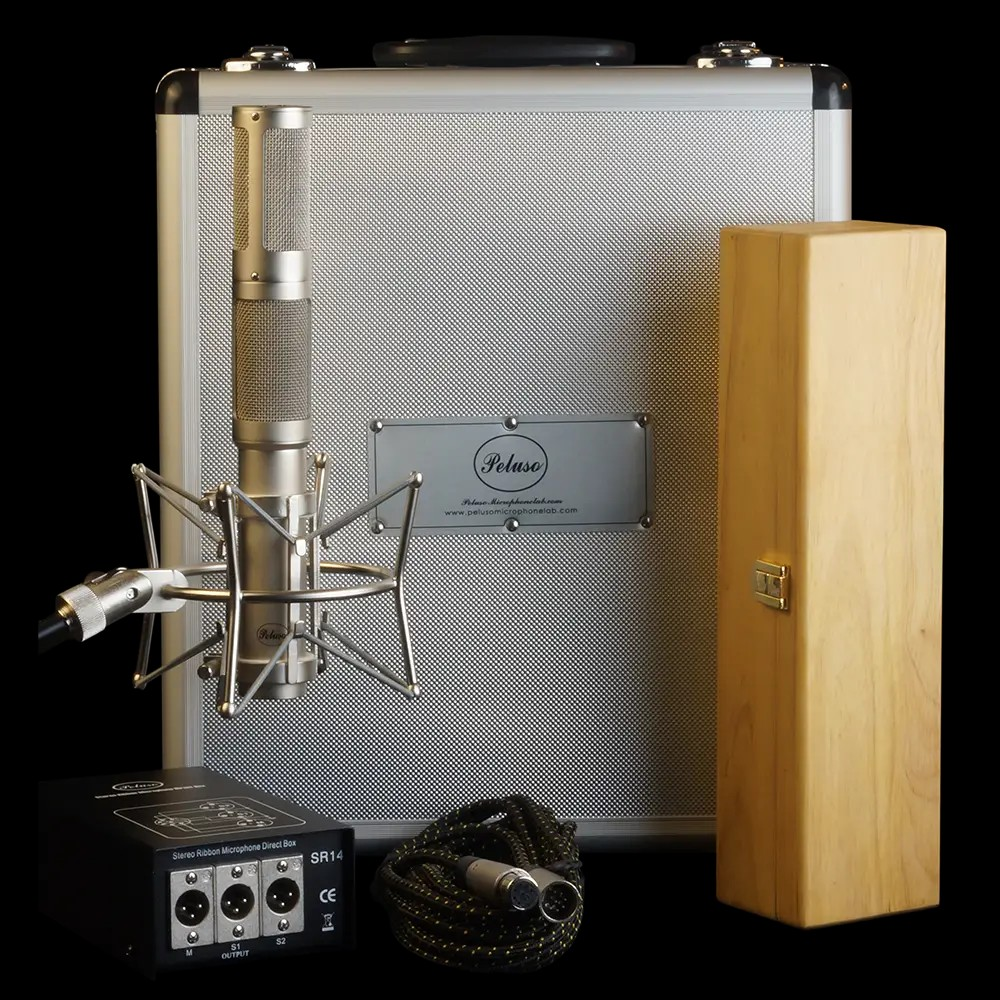

Microphone kit comes as a complete system including:

  • SR 14 Microphone
  • Wood Microphone Box

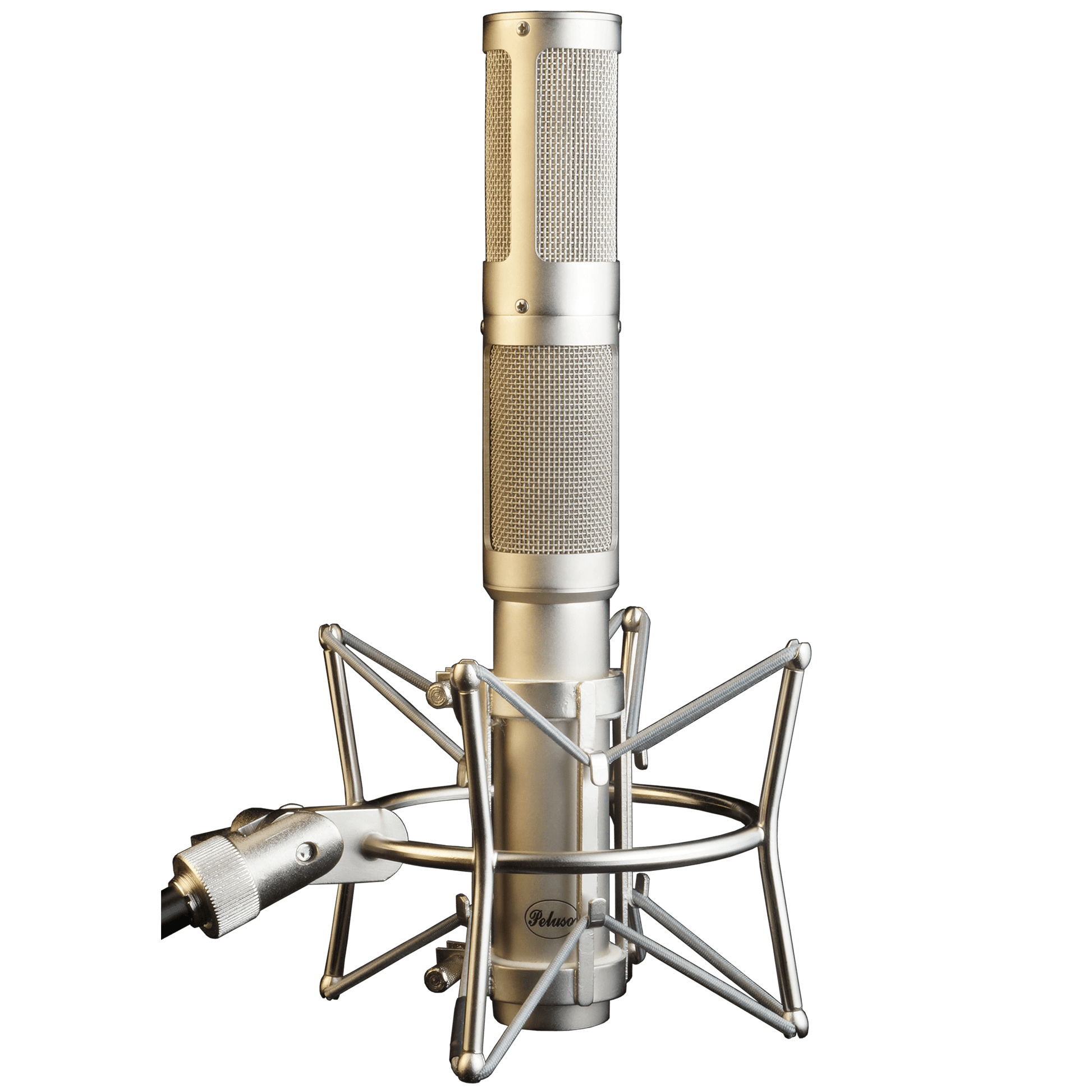

  • Shock Mount
  • Stereo Matrix
  • 7-Pin Cable
  • Locking Flight Case

SR 14 Technical Data

  • Type: Ribbon-Velocity Studio Microphone with Stereo Matrix
  • Operating Principal: Electrodynamic Pressure Gradient
  • Magnets: Rare Earth Neodymium

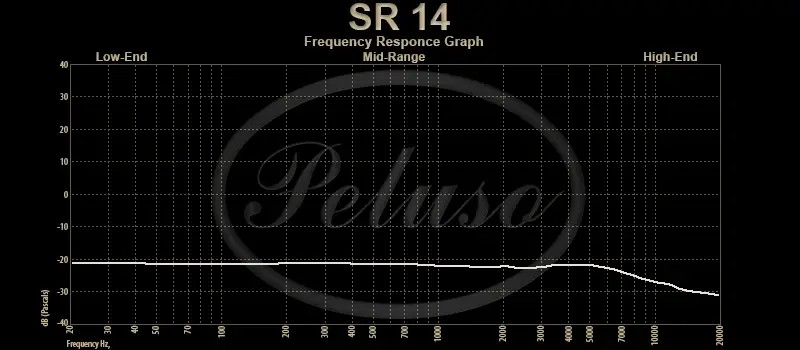

  • Frequency Range: 30Hz/16Khz
  • Polar Pattern: Figure of 8 (Bi-Directional) x2
  • Sensitivity: -52 dBV (re 1v/pa)
  • Impedance: 200 ohms
  • SPL: 149 dB
  • Equivalent Noise: 0 dB(A)
  • Power Requirements: none required or recommended
  • Size: 36mm x 281mm
  • Weight: 750g
