Bartolini

Bartolini Classic Dual Coil J-Bass 4-String Pickups

Bartolini Classic Dual Coil J-Bass 4-String Pickups

1 in stock

Regular price $92.00 USD
Regular price Sale price $92.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments.

When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.

If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.

Available in balanced specific bridge and neck versions which can be purchased individually or in these sets:

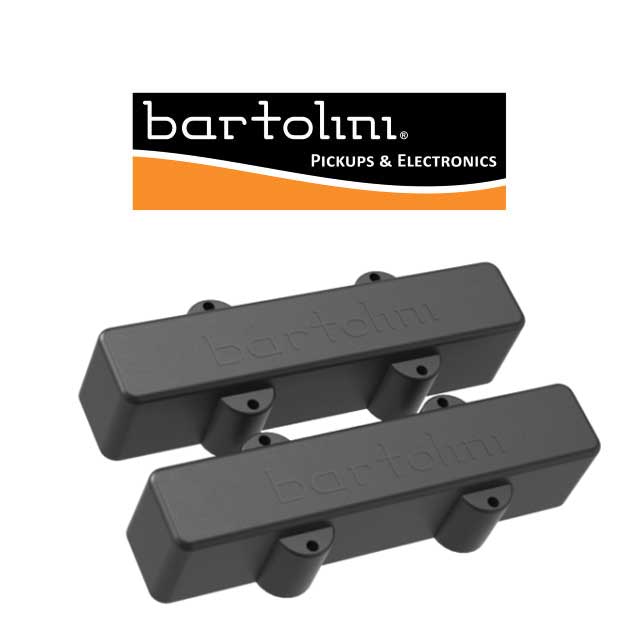

9CBJD L1/S1: Long bridge / short neck

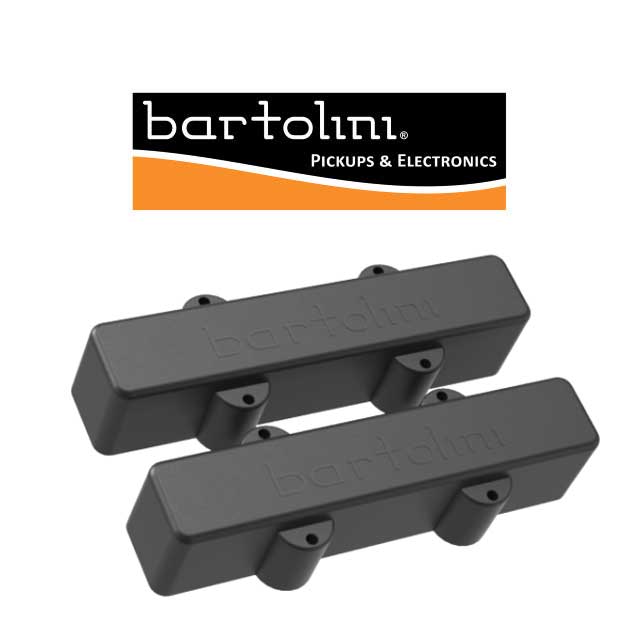

9CBJD L1/LN1: Long bridge / long neck

9CBJD S1/SB1: Short bridge / short neck

Technical Details

Coil Structure:

Dual Inline Hum-killing

Cable Type:

Shielded Coaxial Hot Core

Magnetic Circuit:

2 types of carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture
Opposite polarity for bass and treble coils for neck and bridge pickups

Coil Specs For Individual 9CBJD Pickups:

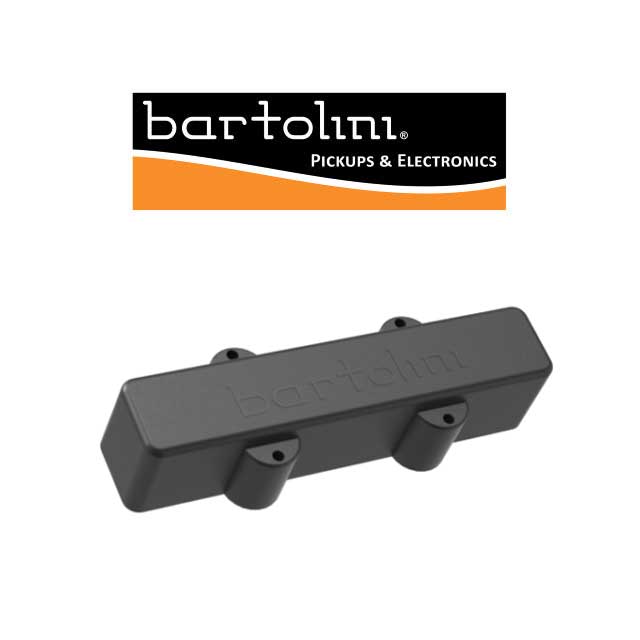

9CBJD-S1 - Neck

  • DC Resistance: ~8.2KΩ
  • Resonant Frequency: ~5.2KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

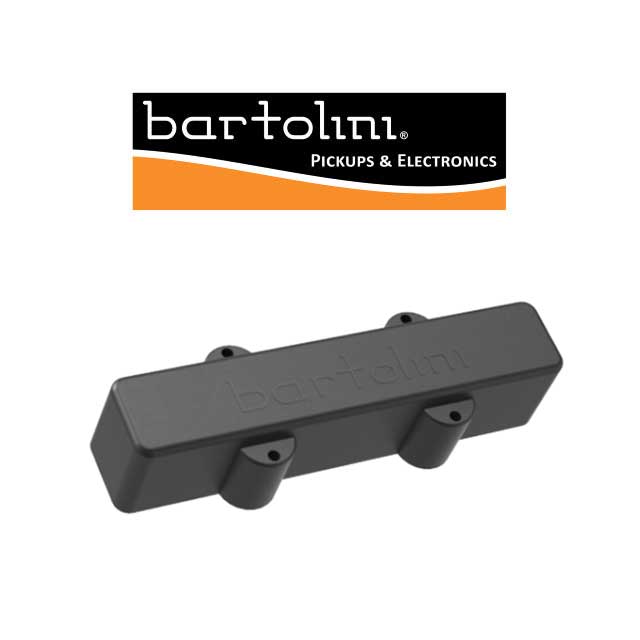

9CBJD-L1 - Bridge

  • DC Resistance: ~9.2KΩ
  • Resonant Frequency: ~4.4KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

9CBJD-LN1 - Neck

  • DC Resistance: ~8.2KΩ
  • Resonant Frequency: ~5.2KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

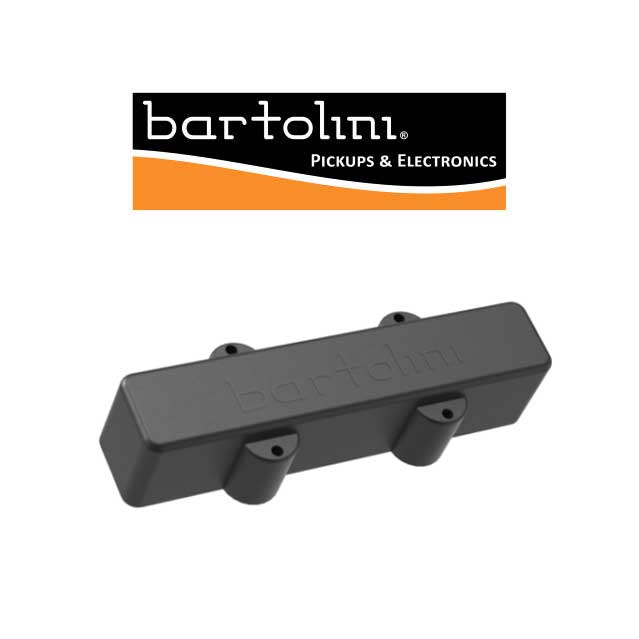

9CBJD-SB1 - Bridge

  • DC Resistance: ~9.2KΩ
  • Resonant Frequency: ~4.4KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

Shape Details

Standard Short J-Bass (-S and -SB)

3.6" [91.4mm] Long, 0.73" [18.5mm] Wide, 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable

4 Standard J Pickup Mounting ears for your #3 or #4 screws

Standard Long J-Bass (-L and -LN)

3.73" [94.7mm] Long, 0.73" [18.5mm] Wide, 0.82" [20.8mm] Thick + 0.11" [2.8mm] Cable

4 Standard J Pickup Mounting ears for your #3 or #4 screws

Documents

Bartolini Wiring Diagram PDF

Bartolini J-Bass Shell Sizes
