CIOKS DC10 Power Supply

Description

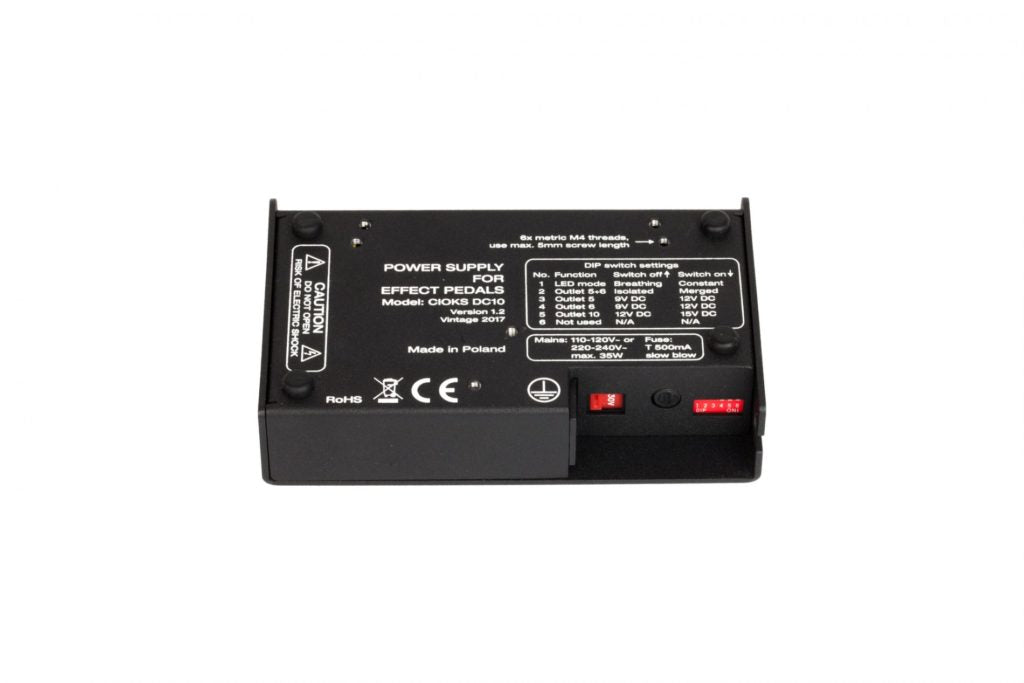

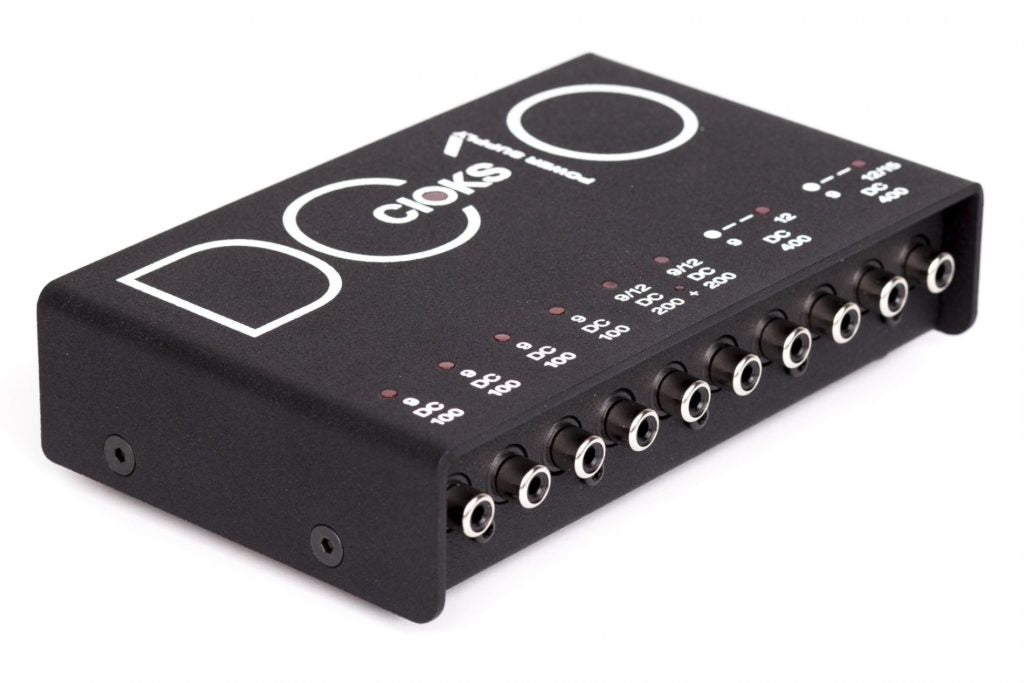

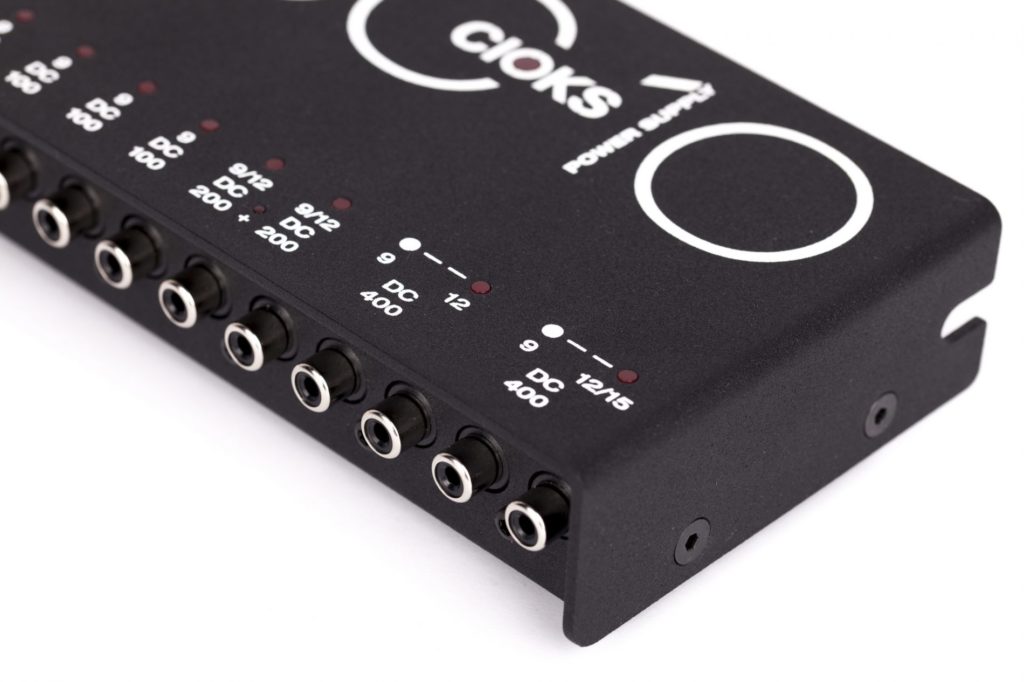

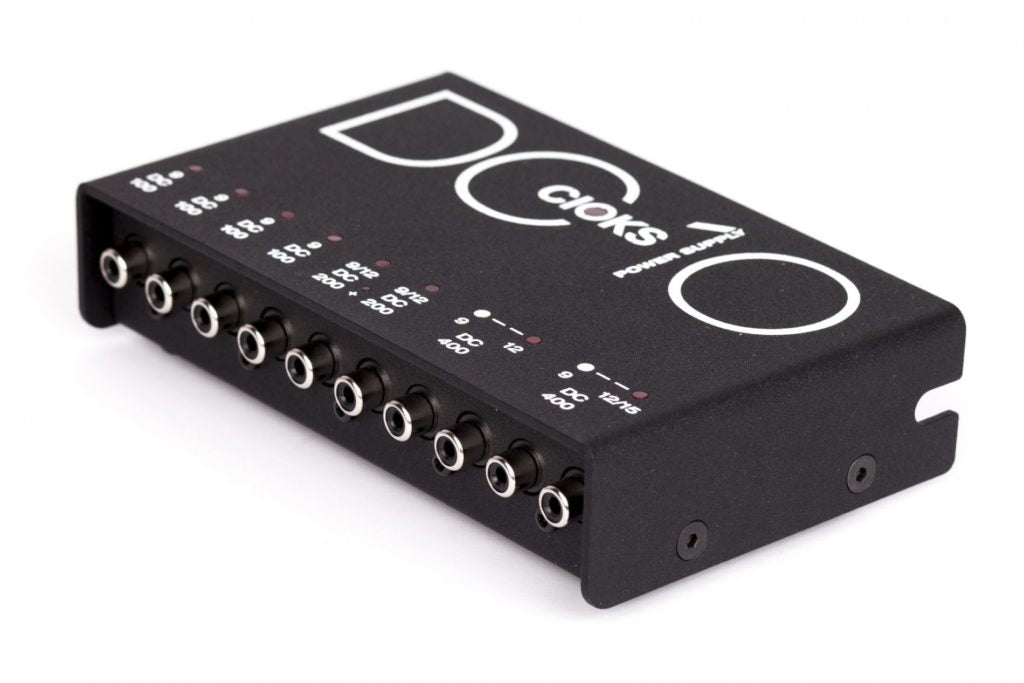

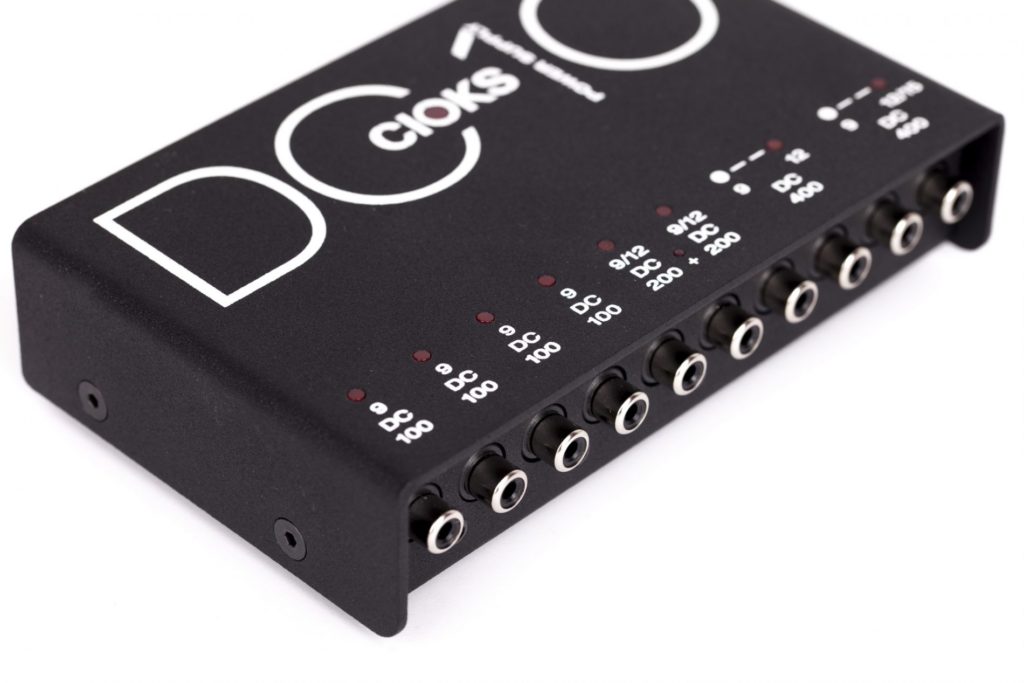

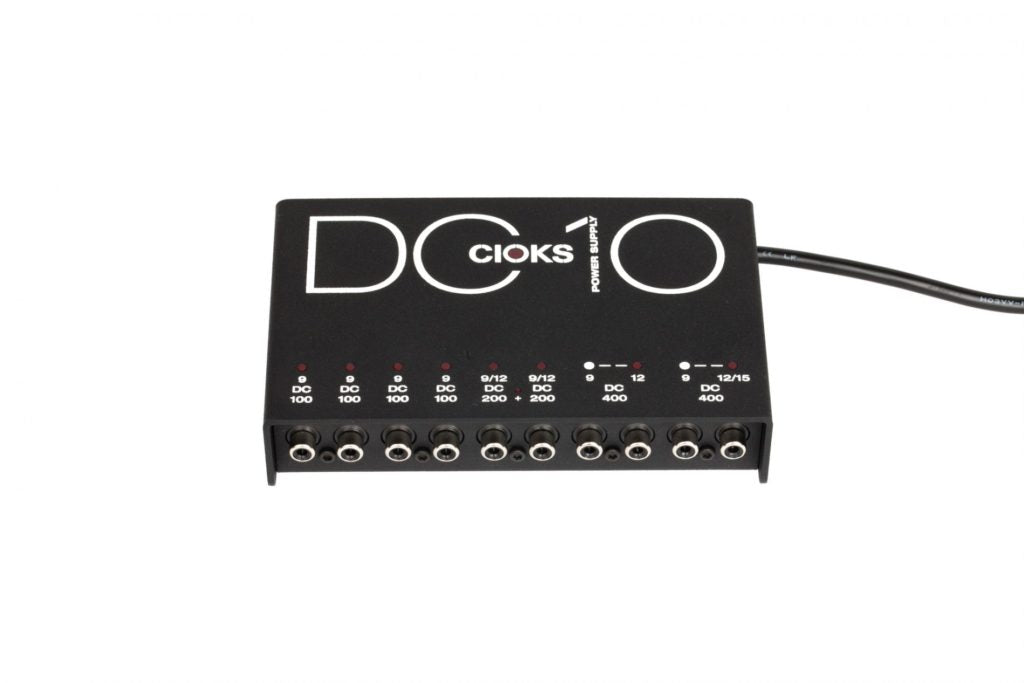

The CIOKS DC-10, a professional-level power supply, features 10 outlets in eight isolated sections along with a pair of switchable 9/12-volt DC outlets and a 12/15-volt DC outlet. In addition to LED monitoring for each outlet, the DC10 is also equipped with a global status LED in the CIOKS logo. The DC-10 includes a total of 16 flex cables as well as mounting hardware for Pedaltrain and Temple Audio pedalboards.

Included Flex cables

• 8 x Standard Flex Type 1 — 5.5mm/2.1mm center-negative DC plug, black
• 1 x Standard Flex Type 2 — 5.5mm/2.1mm center-positive DC plug, red
• 2 x Standard Flex Type 4 — 5.5mm/2.5mm center-positive DC plug, green
• 1 x Standard Flex Type 5 — 3.5mm tip positive jack plug, black
• 1 x Standard Flex Type 6 — 9-volt battery clip, black
• 1 x Split Flex Type 1 — powers two pedals from one outlet, black
• 1 x Stack Flex Type 1 — adds voltages of two outlets, white/black
• 1 x Series Adapter Flex — adds voltages of two outlets, white

Features

• Professional-level pedal power supply with 10 outlets
• Switchable power outlets accommodate most pedals
• Multiple current ratings enable further compatibility

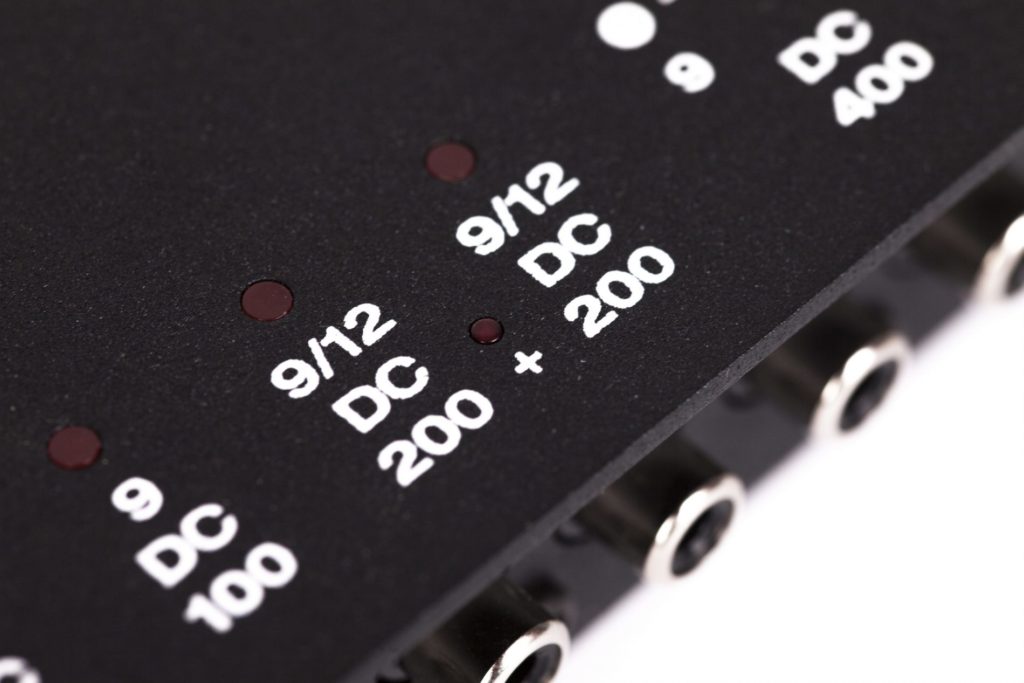

• LED monitoring and provides approximate power usage of each pedal
• Includes 16 flex cables for powering pedals of all kinds
• Short circuit protection keeps your pedals safe from unexpected electrical events
• 120-volt or 230-volt power input allows you to take your power supply to most countries
• Includes mounting hardware for Pedaltrain and Temple Audio pedalboards

Specifications

• Outlet 1-4: 9V DC / 100mA each
• Outlet 5-6: 9 or 12V DC / 200mA each (can be merged into a 400mA section)
• Outlet 7-8: 9 and 12V DC / 400mA
• Outlet 9-10: 9 and 12 or 15V DC / 400mA
• Size: 6.22" x 3.86" x 1.38" (excl. detachable rubber feet)
• Weight: 2.43lbs
