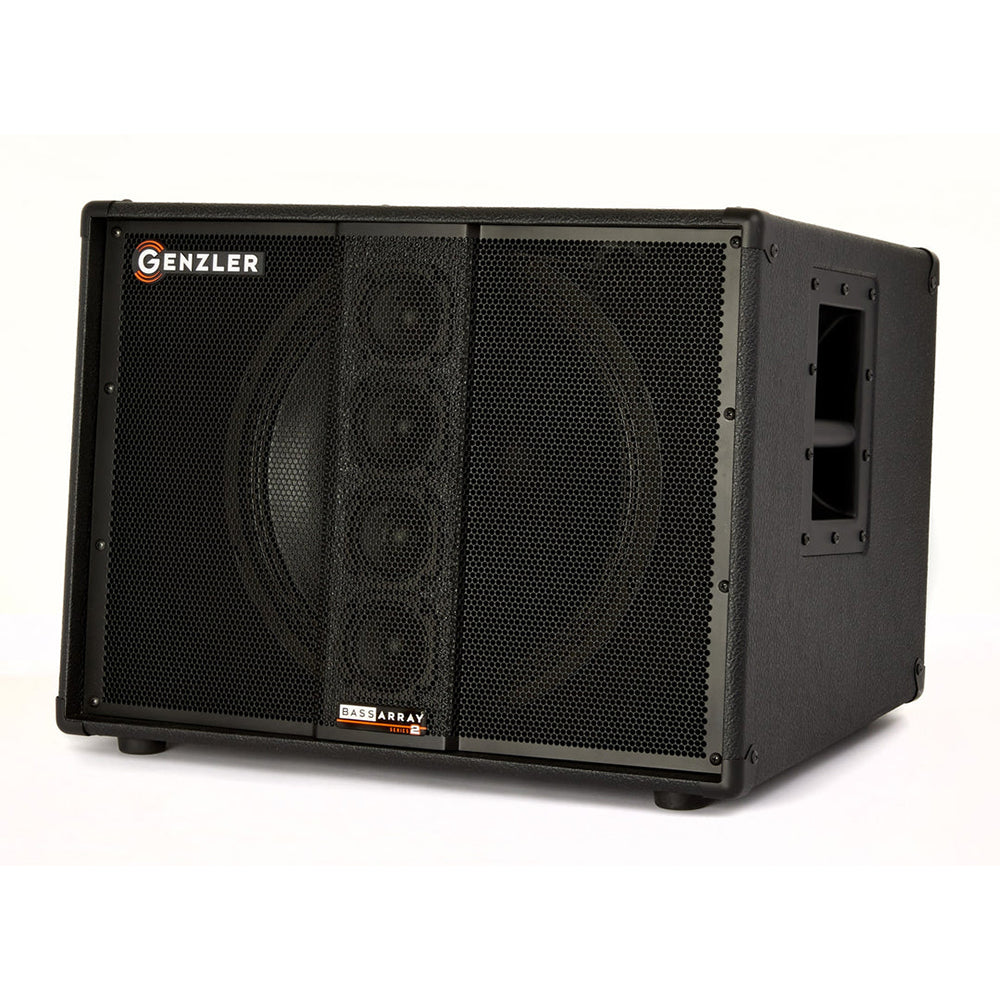

Genzler BA2-115-3SLT, Bass Array SERIES 2 1x15 Cabinet

Description

GENZLER® AMPLIFICATION announces further enhancements to our innovative Bass Array 15-3 bass cabinet design, with the NEW SERIES 2, BA2-115-3SLT — slanted 15″ version of the BA concept delivering a powerful, big output, compact, cabinet design.  Overall tonal characteristics include deep, round, full lows, smooth mid-range character, seamlessly transitioning to extended top-end clarity.

DESIGN BACKGROUND —–

The innovative SERIES 2 Bass Array design blends the benefits of all new Italian-designed speakers — a 15” neodymium woofer in a vented bass reflex design with the performance and pattern control of a 4 x 3” neodymium cone-driver line array element.  Additionally, the placement of the Line Array in front of the 15” woofer further provides a type of “single point source” projection—think of it as concentric speakers, one inside of the other, in the same linear plane.  Also due to line array principles the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern.

The benefits of combining both loudspeaker elements in an extremely compact speaker system are exponential for the player:

• Full, deep, low frequency response from the high efficiency 15” ported woofer.
• Smooth, seamless, clear, and articulate mid-range to high frequency transition across the audio spectrum.
• Broad horizontal dispersion far exceeding conventional woofer/tweeter combinations.
• And now, the NEW SERIES 2 update offers even more advancements with increased power handling, broader frequency response, more detail, mid-clarity, definition, and extended top-end, all in an even lighter-weight cabinet.

What this means in the context of performance is the most focused, defined, musically smooth and seamless response possible throughout the cabinet’s entire broad-range bandwidth.

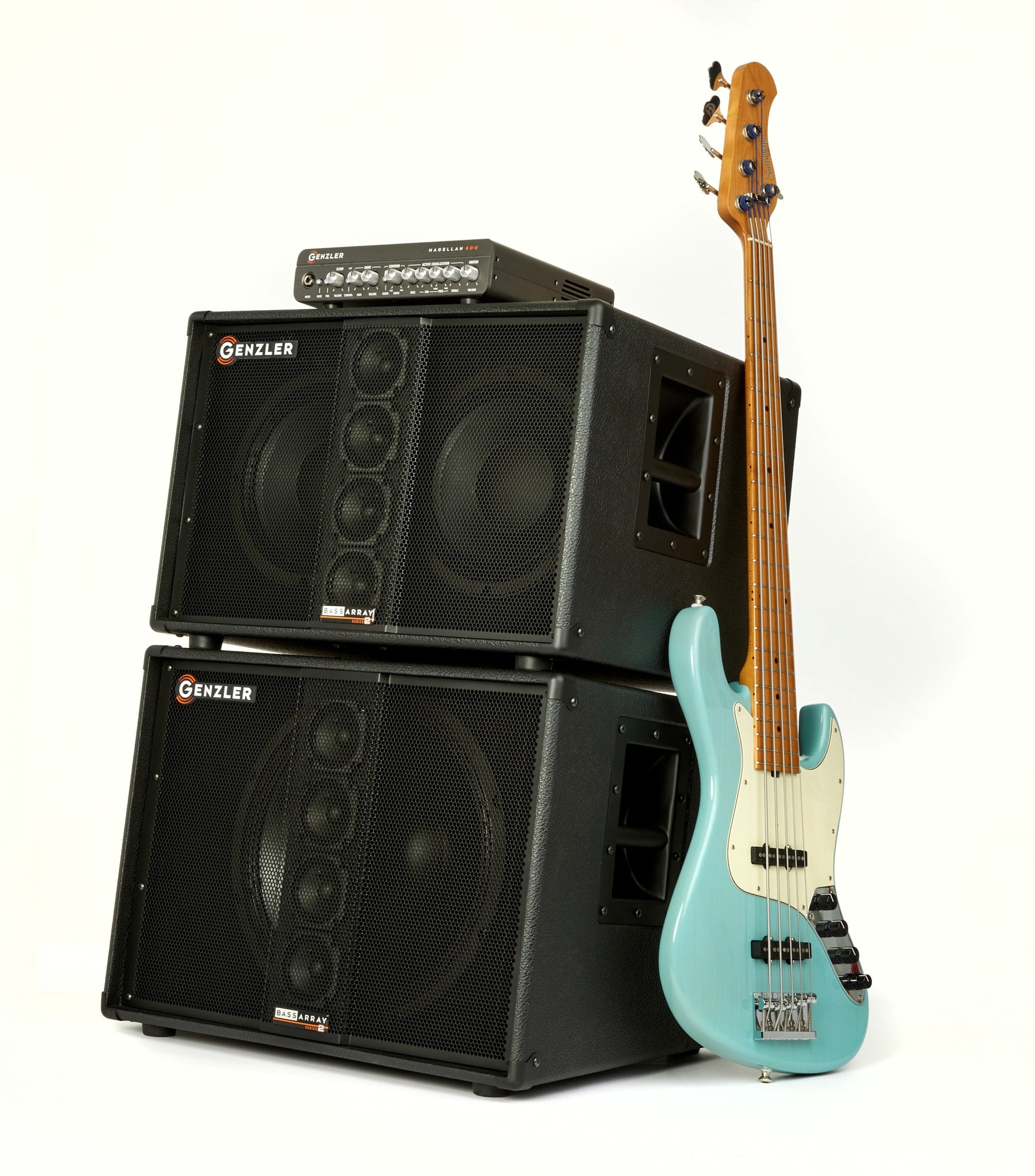

An excellent choice when used as a single enclosure or in combination with additional BA straight or slant cabinets.  This offers multiple options to the player to configure their BA2-115-3 SLT stack for the best coverage of the stage or performance venue.

The BA2-115-3SLT cabinet features include:

• Neodymium 15” Woofer w/4 x 3” Neodymium Line Array Drivers
• Ported Cabinet Design
• Cabinet Built w/Lite-ply & Baltic Birch Plywood
• Side Recessed Flush Handles
• Dual Speakon® and ¼” Input Jacks

Specifications

Shipping Data:

• Carton Dimensions: 27″H x 22″W x 22″D
• Shipping Weight: 43 Lbs

Speaker Components:

• One — Premium Neodymium 15″ loudspeaker utilizing a fiberglass former voice coil with a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity.
• Four — Premium Neodymium 3″ full-range, mid/high cone drivers utilizing a fiberglass former voice coil, a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity. These drivers are loaded into a sealed line array stack.

Input Panel/Crossover Network:

• Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure.
• Two — Speakon® NL-2 connector and two – ¼” sealed jacks; to reduce rear cabinet air loss and noise.

Cabinet:

• Cabinet Built w/Lite-ply & Baltic Birch Plywood
• Heavy-duty textured black vinyl.
• Black metal corners and side-mounted recessed handles.
• Custom, curved grille with a unique center “pleat” to protect the array column.
• Large rubber feet.
