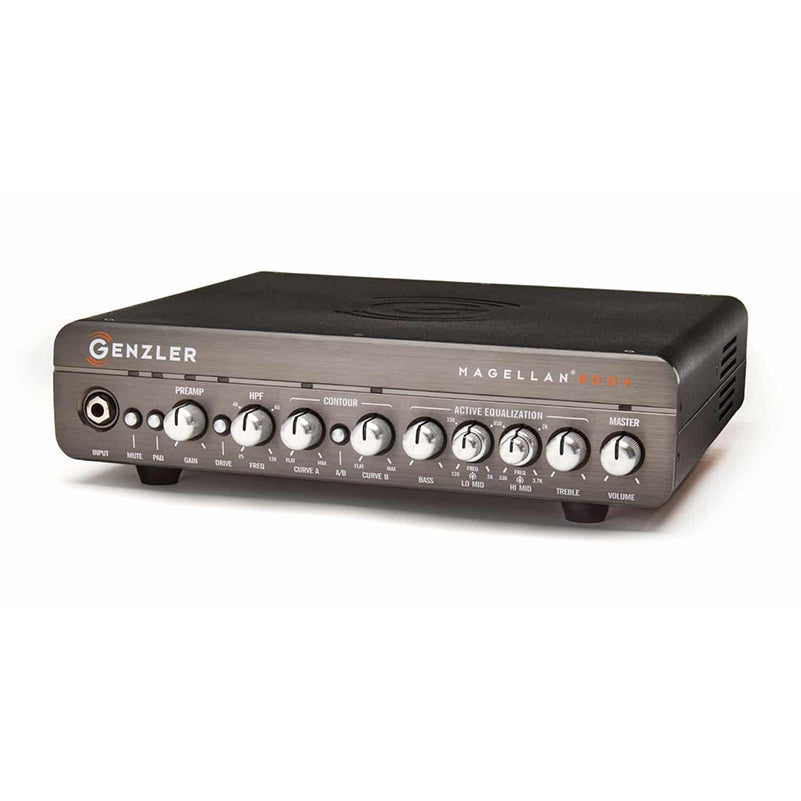

Genzler Magellan 800+ Bass Amplifier

After 10 years in service, GENZLER® AMPLIFICATION is proud to introduce the next generation of this 800-watt professional, tour-class bass amp — the new MAGELLAN® 800+.   Carrying forward the legacy of night-after-night reliability, the MAGELLAN® 800+ reaches even higher achievements in performance with several new features, improved preamp circuitry, expanded EQ network; all within the same rugged chassis and developed with the same stringent design and build expertise we are known to achieve.

The MAGELLAN® 800+ delivers the most powerful, feature-laden, compact bass amplifier available in its class.  This new model offers improved dynamic response and feel, along with superior low-noise thresholds and increased dynamic headroom.  This is exactly what players have come to expect from the GENZLER® design team – innovation, performance, reliability and versatility.

The MG-800+® provides the tonal pallet needed to cover all the bassist’s amplifier requirements: from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures and dynamic — with “weighted feel to the notes”.  All of this encased in the same classic styling of an all-aluminum chassis, weighing only 6.25 lbs.

The MAGELLAN® 800+ is equipped with an expanded list of features:

• Updated input circuitry for enhanced instrument loading
• Foot-switchable DRIVE circuitry
• Variable HPF (High Pass Filter)
• Dual Contour Circuit — Foot-switchable and separately adjustable
• 4 Band Active EQ w/two sweepable midrange frequencies
• Highest-grade op-amps through-out for lower noise and higher dynamic headroom

Specifications

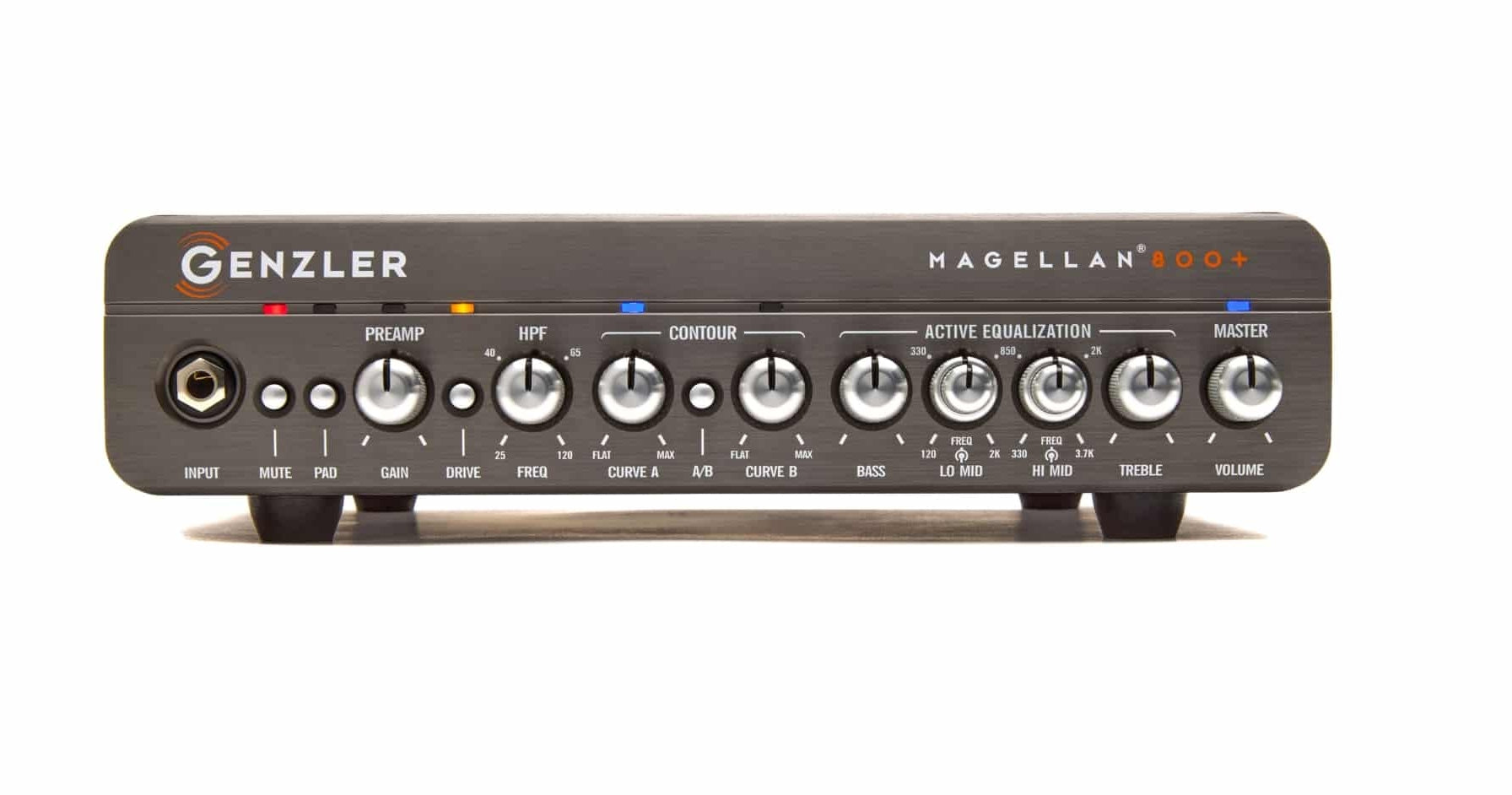

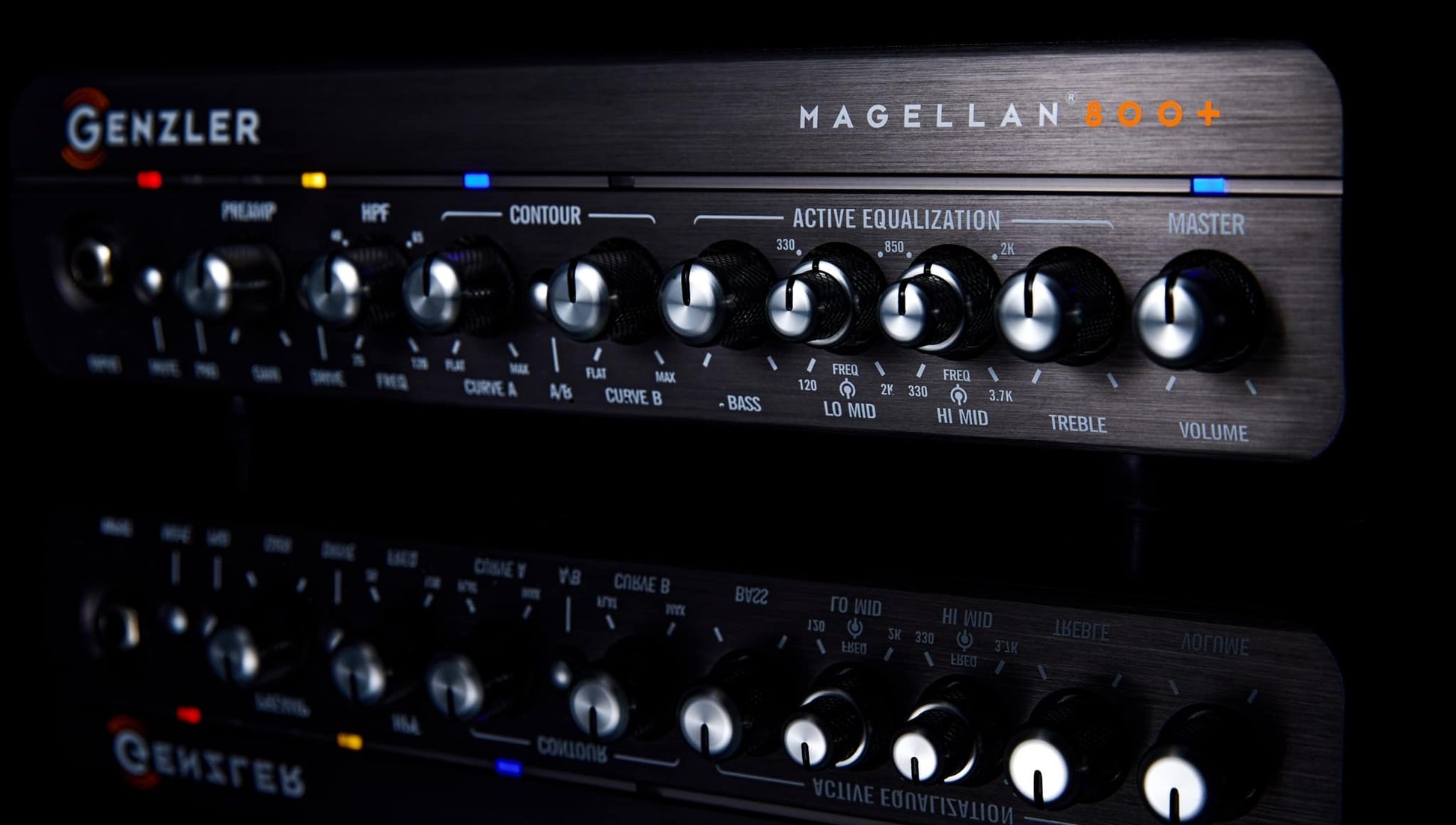

FRONT PANEL FEATURES:

• ¼” INPUT
• SIGNAL MUTE SWITCH
• INPUT PAD (- 8.5dB)
• GAIN LEVEL CONTROL
• DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume
• HPF—HIGH PASS FILTER — Variable from 25 – 120Hz
• DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable
  • Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs
  • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
  • Flat Position — Full Bypass
• ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS
• Bass:         +/- 15dB @ 75Hz
• Lo Mid:     +/- 15dB variable from 120Hz – 2K Hz
• High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
• Treble:       +/- 15dB @ 6K Hz
• MASTER VOLUME CONTROL

REAR PANEL FEATURES —-

• IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms
• DUAL SPEAKON® SPEAKER OUTPUTS
• HEADPHONE OUTPUT

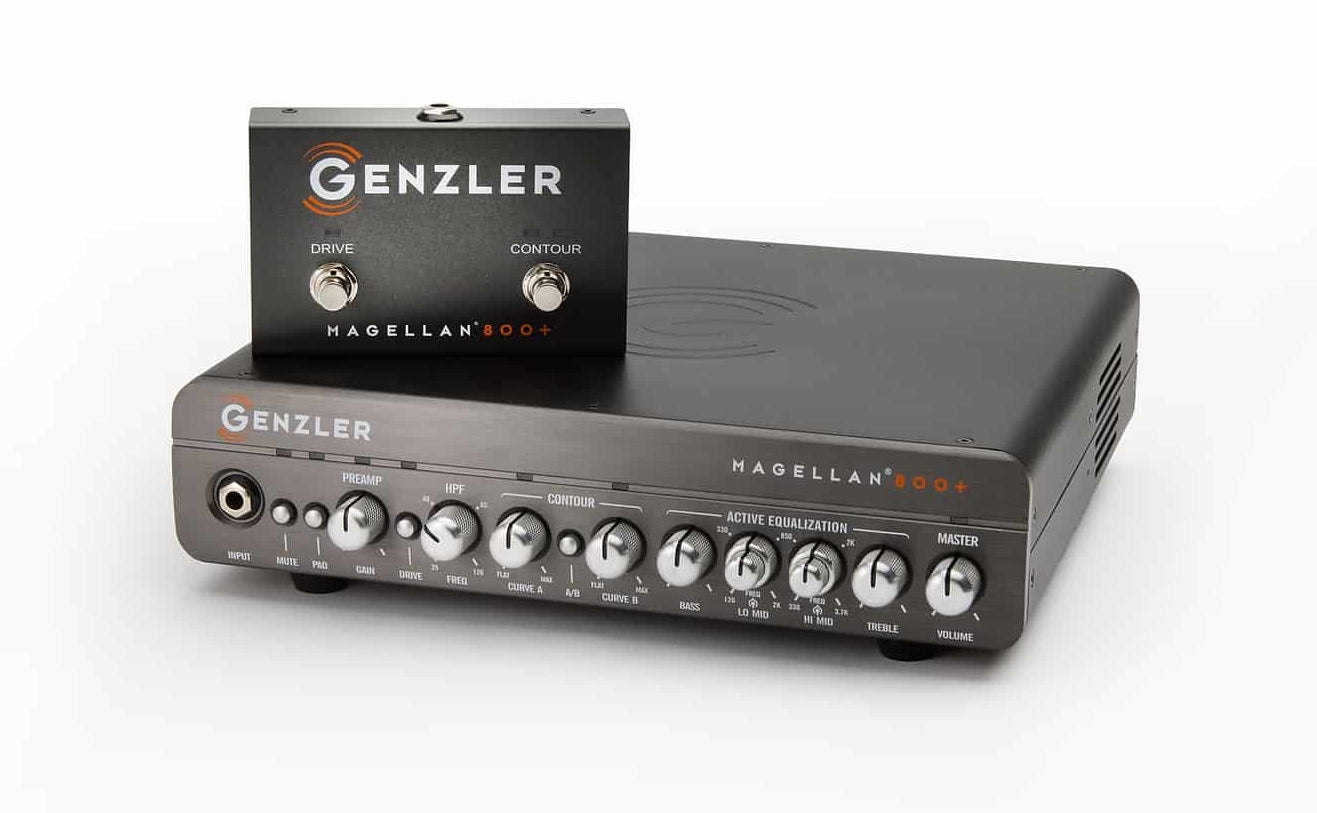

• FOOTSWITCH INPUT JACK — For optional 2 button footswitch
• EFFECTS LOOP
• TUNER OUTPUT JACK
• DIRECT OUTPUT INTERFACE — PRE/POST
• THERMAL SENSING VIARIABLE SPEED FAN COOLING
• AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL
• POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots

SPECIFICATIONS:

• POWER OUTPUT:  400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
• MINIMUM SPEAKER LOAD:  67 Ohms
• OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz
• DIMENSIONS: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
• WEIGHT: 25 LBS (2.83Kg)

SHIPPING DATA:

• DIMENSIONS: 5”L x 13”D x 5.75”H (419.1mm x 330.2mm x 146.02mm)
• WEIGHT: 9 LBS (4.08 Kg)
