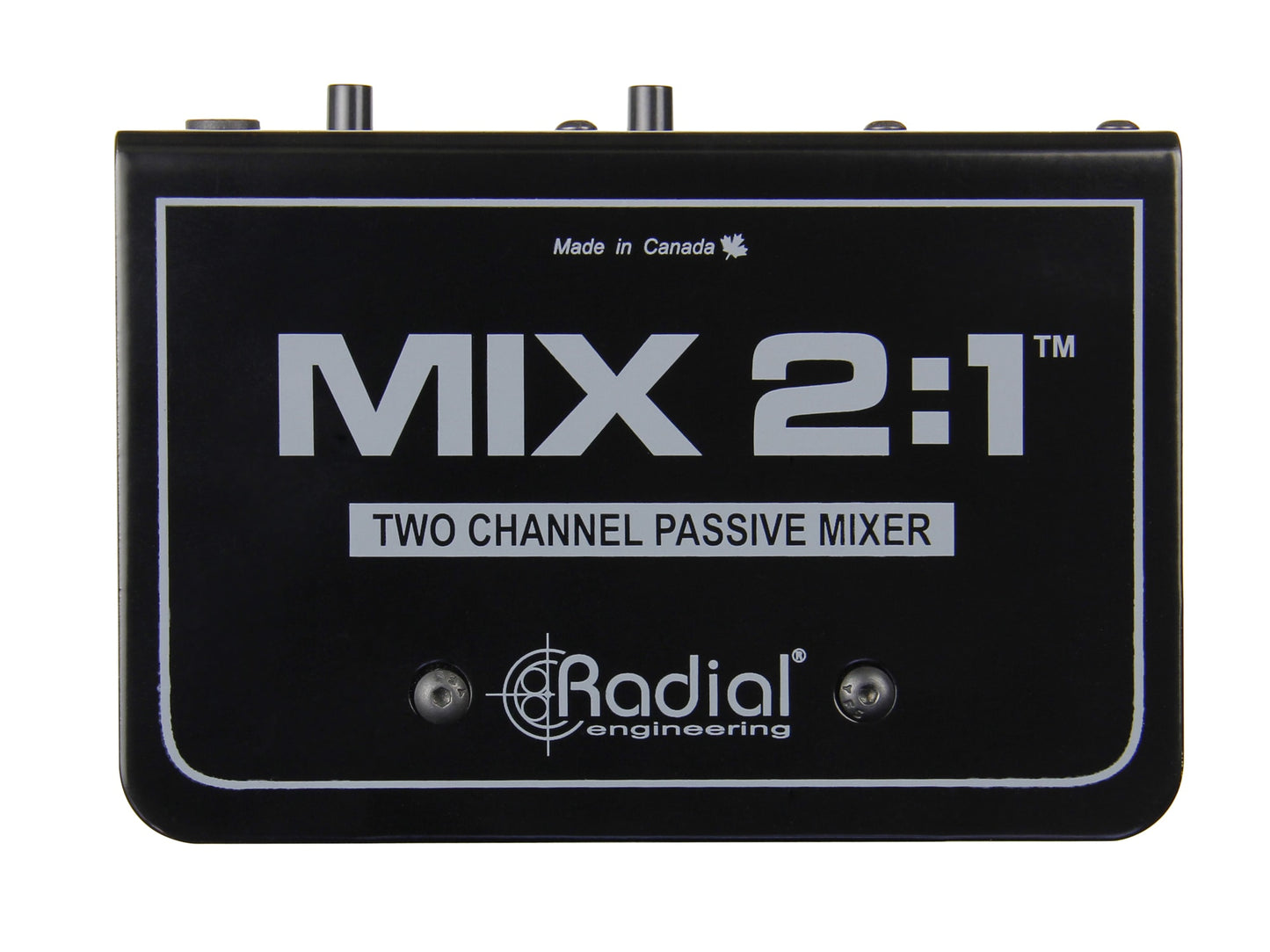

Radial Mix 2:1 Two Channel Passive Summing Mixer
Radial Mix 2:1 Two Channel Passive Summing Mixer
Out of stock
Couldn't load pickup availability
Two-channel Audio Combiner & Mixer
The MIX 2:1™ is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two signals together and balance their relative input levels.
Combine two balanced mic or line-level signals

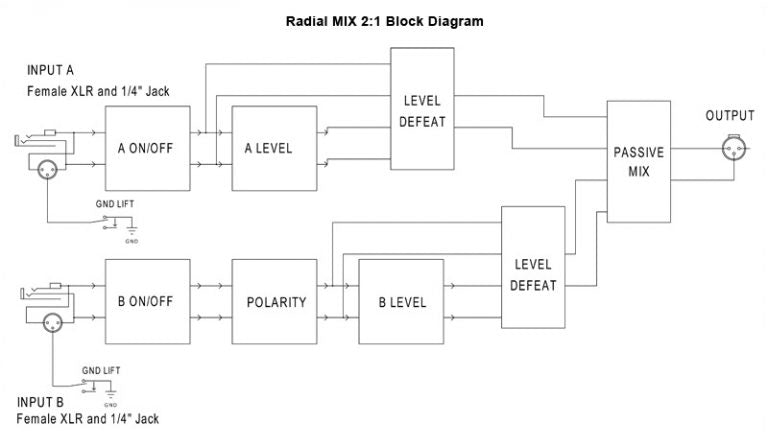

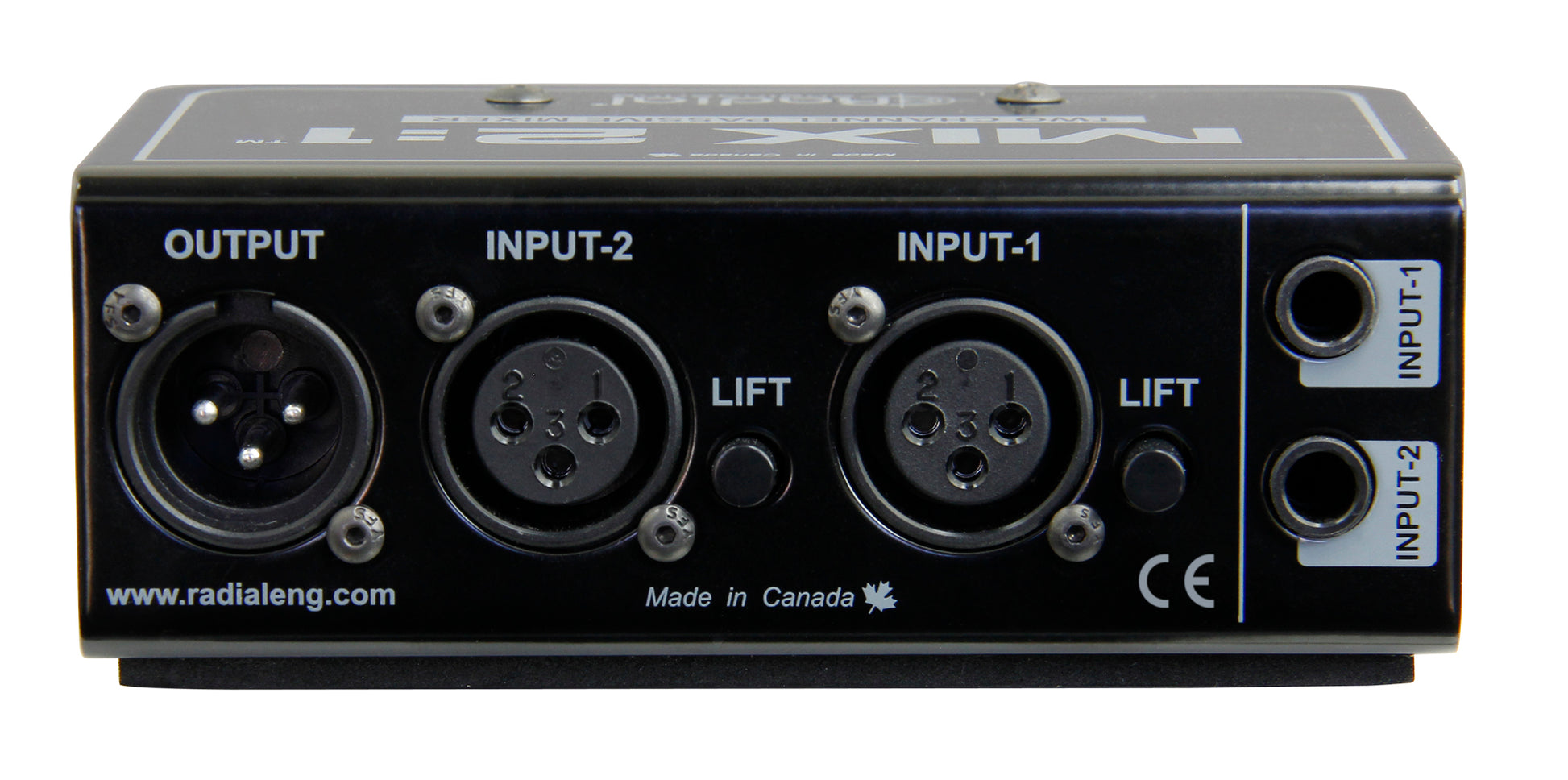

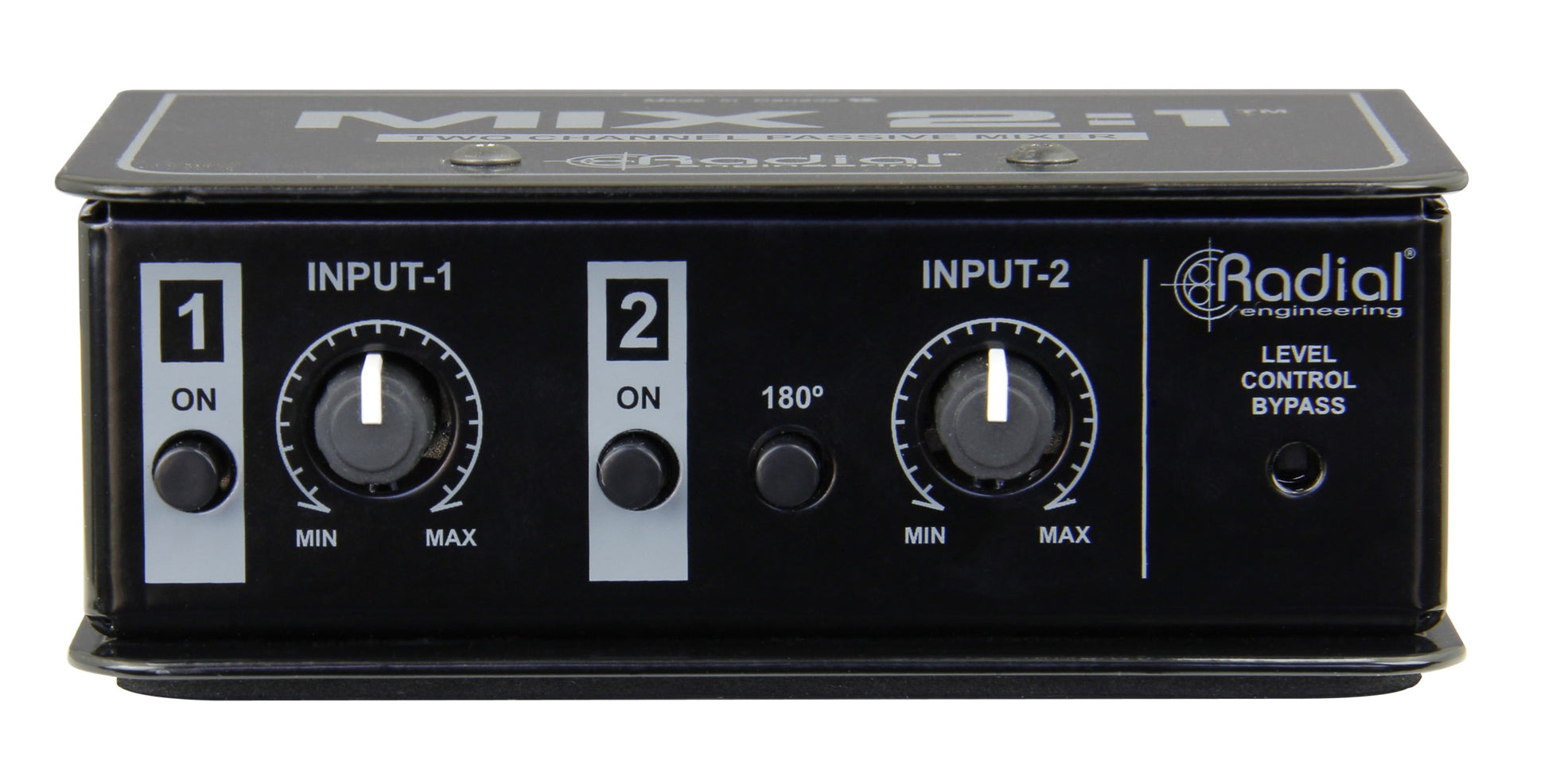

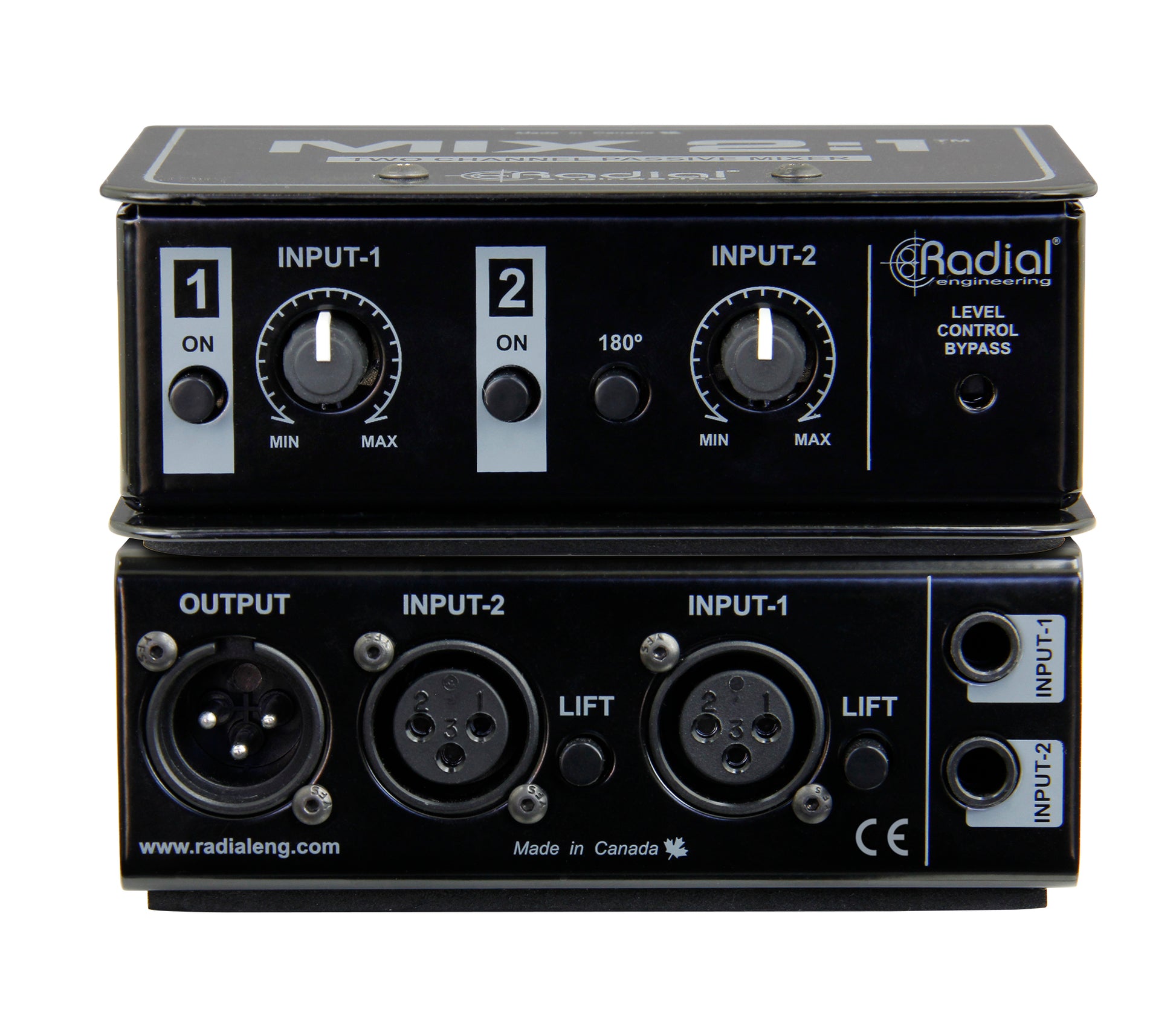

The MIX 2:1 makes it easy to sum together any two signals, whether it's two microphones on a single guitar amplifier, or the stereo line outputs of a mixing console. At the inputs of the MIX 2:1, both ¼" TRS and XLR connectors are available, with ground lift switches to eliminate buzz and hum from ground loops and ensure noise-free operation. A trim control is also featured on each input, so if you are connecting two separate mono sources such as the outputs of two mic preamps, they can each be attenuated as needed to match their levels at the output. After both signals are passively summed together, they feed a single XLR output that can be connected to a powered speaker, or the input of a console or recording interface.
Mix 2:1 Applications

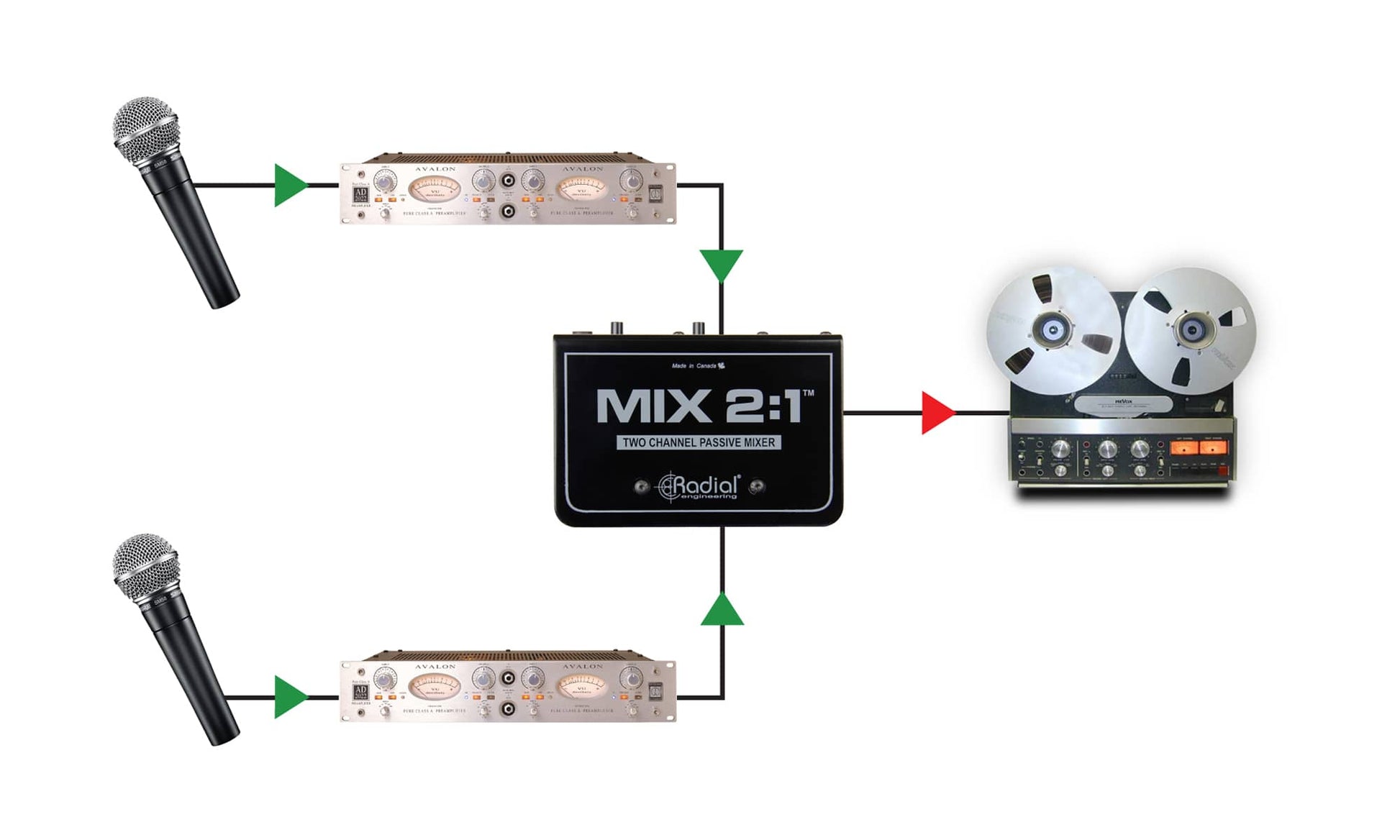

Mix the output of two mic preamps to a single track
Combine two tracks to a single input on your audio interface. Use the 180° phase flip to ensure phase coherency between the two inputs.

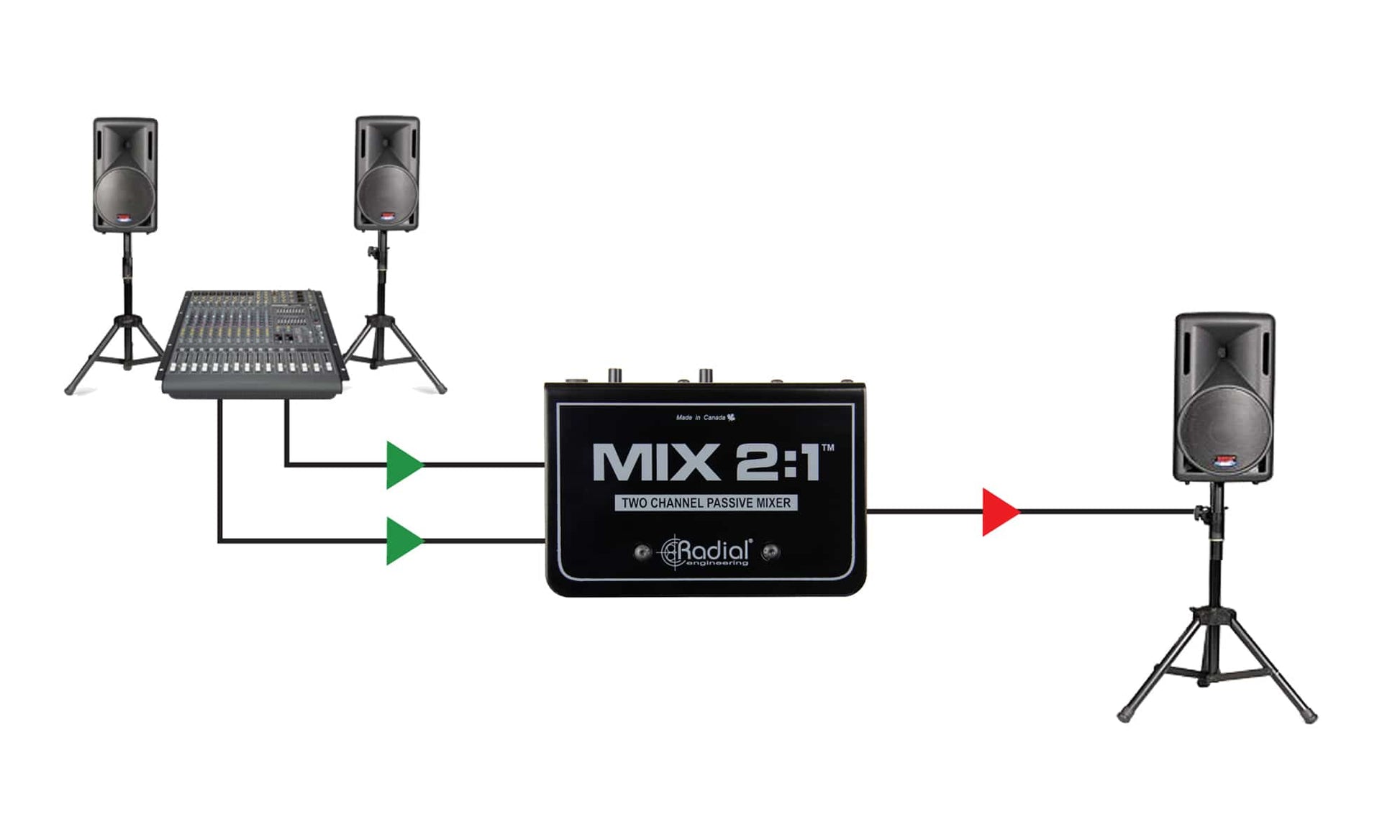

Summing a stereo aux to a mono input
Engage the level control bypass to sum both channels at unity gain into the mono input of a powered speaker or a recording device.

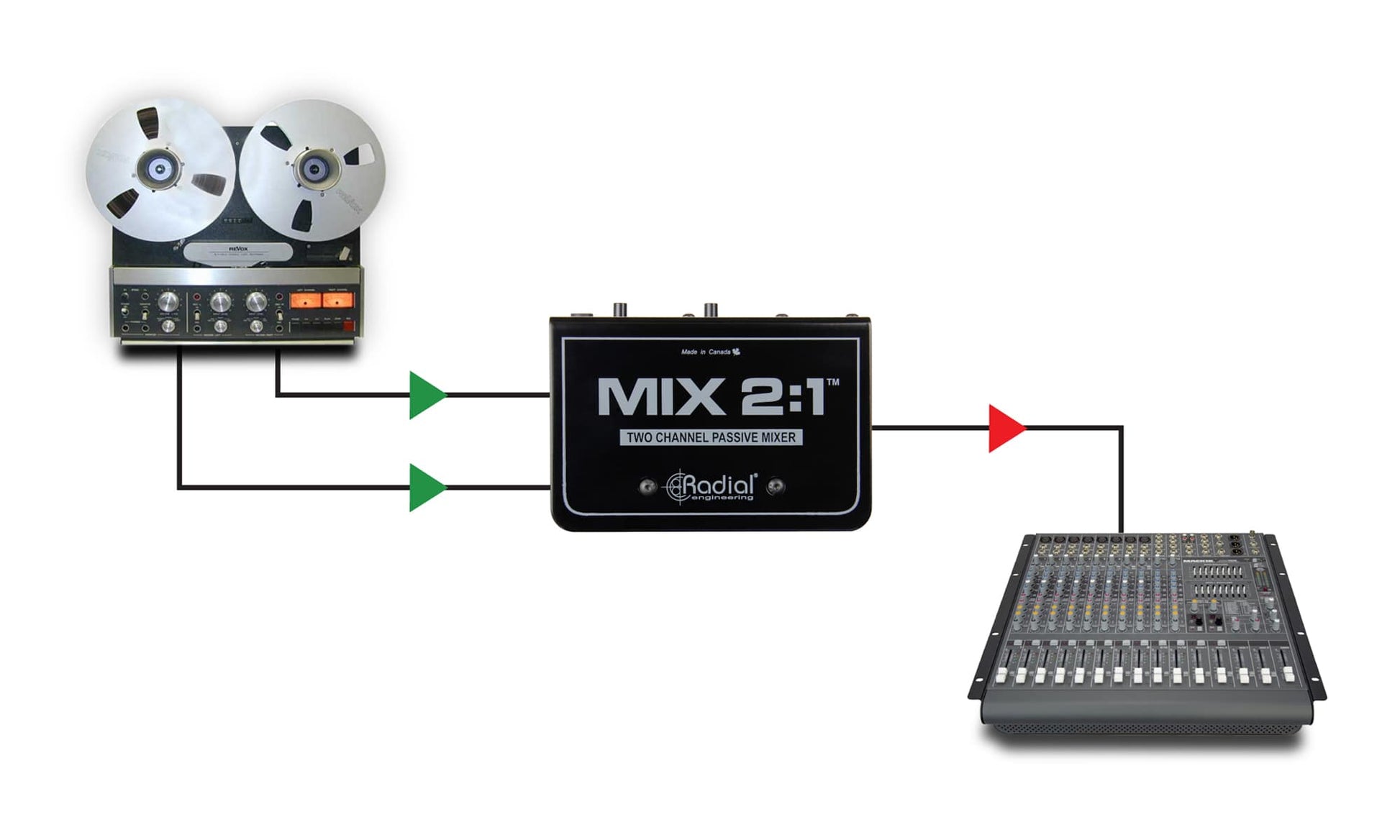

Summing a stereo source to a single channel on a console
When you’re short on channels, the MIX 2:1 allows you to sum a stereo output down to mono, using only one channel on the console.
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive mixer | |
| Frequency response: | 20Hz to 20kHz | |
| Dynamic range: | >133dB | |
| Total harmonic distortion: | >0.005% @ 0dBu | |
| Intermodulation Distortion: | >0.002% @ 0dBu | |
| Phase Deviation: | 0° @ 20Hz, 0° @ 1kHz, +2° @10kHz | |
| Input Impedance: | 8 kΩ | |
| Output Impedance: | 1 kΩ | |
| Common Mode Rejection Ratio: | >80dB | |
| Noise Floor: | -113dBu | |
| Maximum Input: | >+ 20dBu | |
| Features | ||
| 180° polarity reverse, Ground lift, Level Control | ||
| Input Connectors: | 1/4", XLR | |
| Output Connectors: | XLR | |
| General | ||
| Construction: | 14-gauge steel chassis and outer shell | |
| Size (L x W x D): | 5" x 3.25" x 1.85" (12.7 x 8.3 x 4.7cm) | |
| Weight: | 1.48lb (0.67kg) | |
| Shipping size (L x W x D): | 6.25" x 4.12" x 3" (15.9 x 10.5 x 7.6cm) | |
| Shipping weight: | 1.77lb (0.8kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
