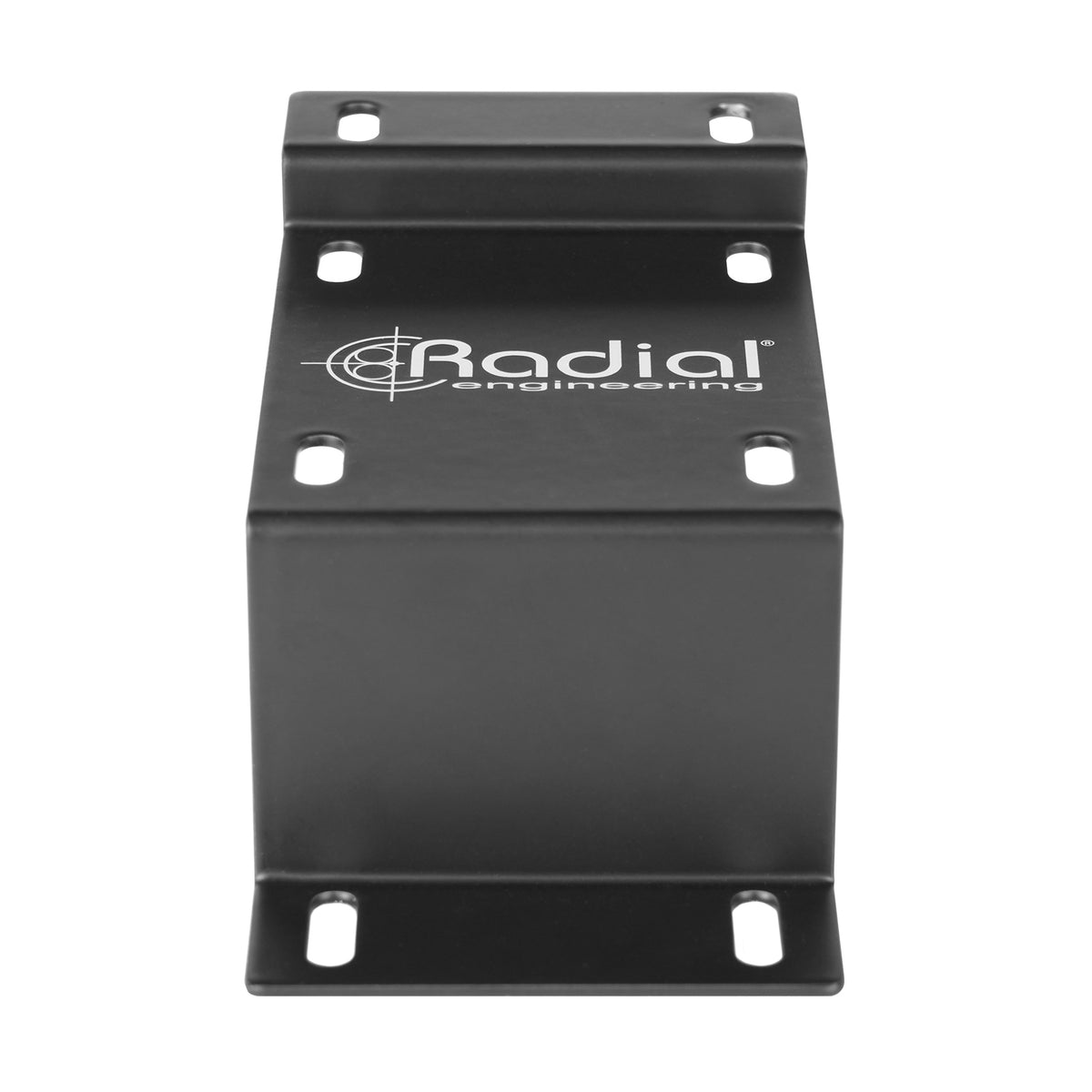

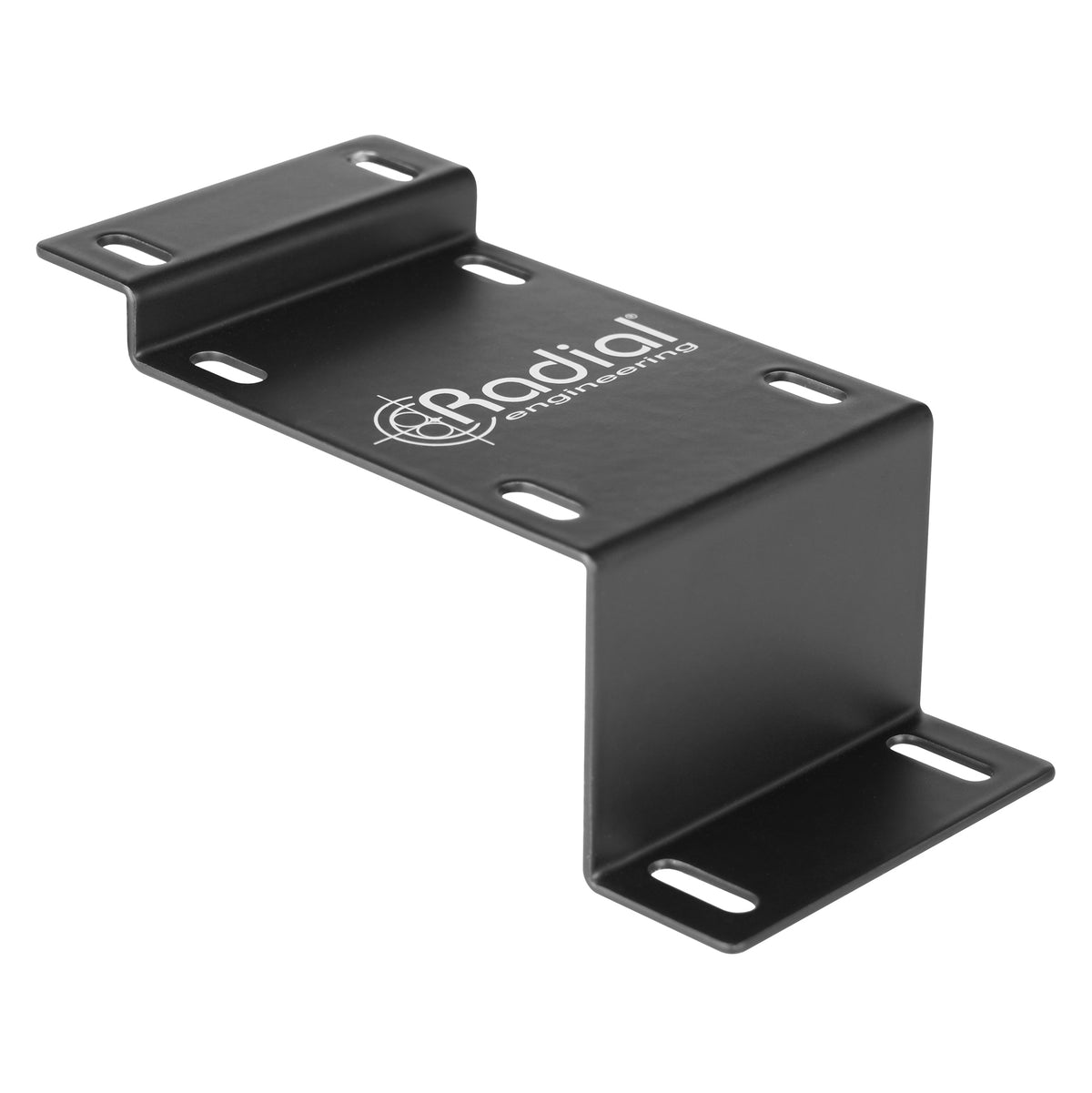

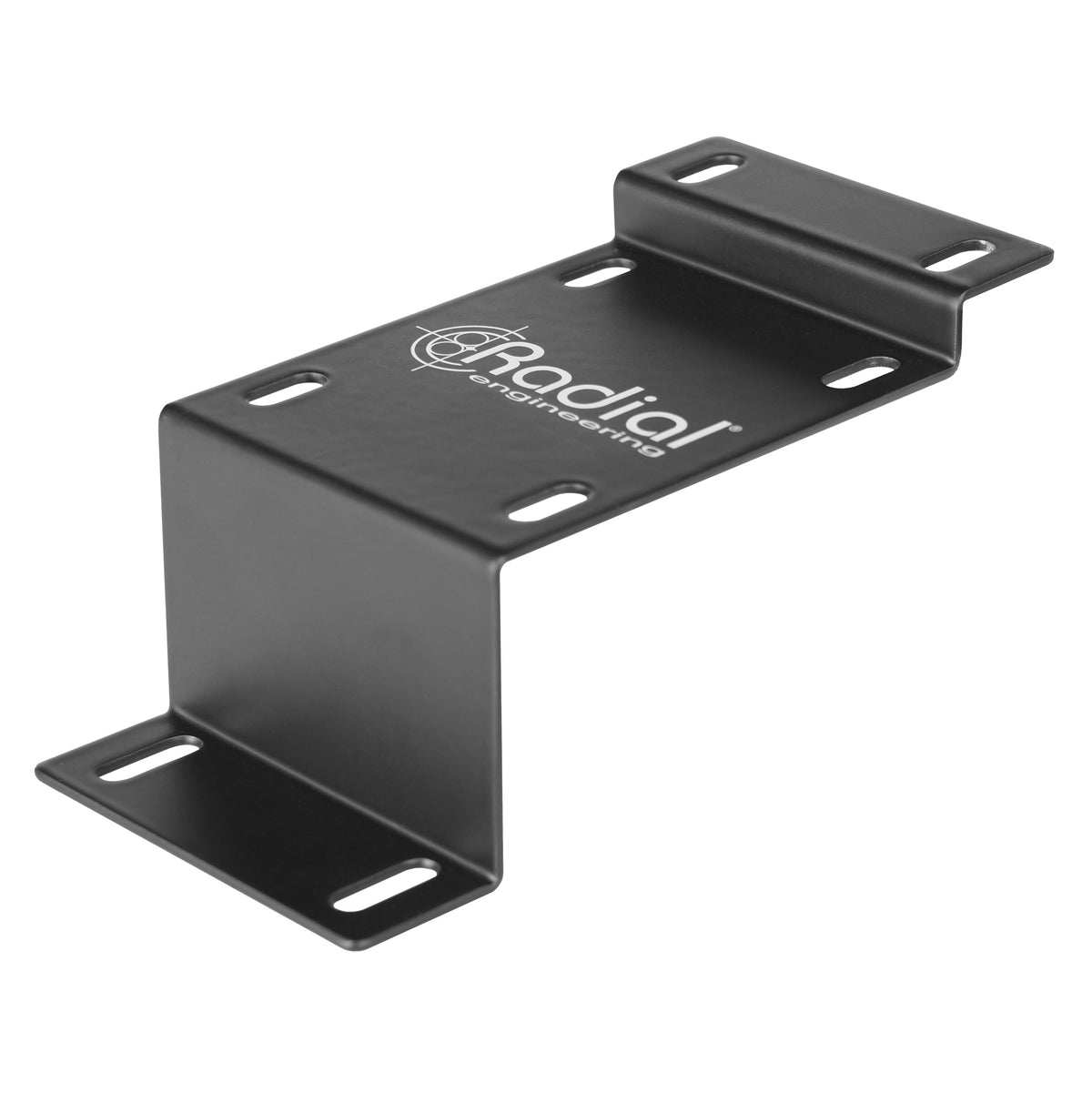

Radial’s TrainTrack Plus pedalboard mounting brackets are a simple, effective tool for affixing Radial J-Class devices – such as the JDI, Highline Stereo, and other Radial devices with the same dimensions – to the underside of a pedalboard for a more streamlined setup.

TrainTrack Plus brackets ship with all the necessary hardware to securely mount your Radial product on either side of a pedalboard, utilizing the screw holes already present in the Radial device, allowing for easy removal for standalone use.

Although designed for use with Pedaltrain® pedalboards (Classic JR and larger), TrainTrack Plus solid metal brackets can also be mounted on certain modular pedalboard models.

For full installation instructions on Pedaltrain® and modular pedalboards, please refer to Radial’s TrainTrack and TrainTrack Plus Installation Guide.

View the updated compatibility list below to ensure your Radial device and pedalboard are compatible with TrainTrack Plus.

• J48 - Active Direct Box
• J48 - Stereo Active Direct Box
• JDI - Passive Direct Box
• JDI Stereo - Passive Direct Box
• J33 - Phono Preamp & DI
• JDX 48 - Amplifier Direct Box
• JPC - Computer Direct Box
• ProAV2 - Stereo Multimedia Direct Box
• ProD2 - Stereo Passive Direct Box
• BT-Pro V2 - Stereo Bluetooth Direct Box
• JS2 - Microphone Splitter
• JS3 - Microphone Splitter
• LX-2 - Line-Level Splitter & Attenuator
• LX-3 - Line-Level Splitter
• Pro-Iso - +4dB to -10dB Converter
• ProMS2 - Microphone Splitter
• Twin-Iso - Line Level Isolator
• Highline Stereo - Stereo Passive Line Isolator
• J+4 - Stereo Line Driver
• J-Iso - Stereo +4dB to -10dB converter
• SGI Stereo - Stereo Instrument Line Driver
• JCR - Studio Reamper
• Relay Xo - Active Output Switcher
