John Suhr Technologies

Suhr Dual Boost Pedal, Black Edition

Suhr Dual Boost Pedal, Black Edition

3 in stock

Regular price $249.00 USD
Regular price Sale price $249.00 USD
Sale Sold out
Shipping calculated at checkout.

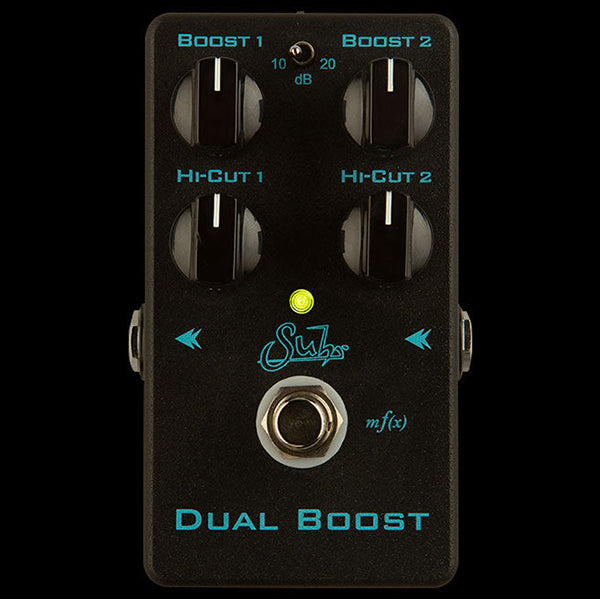

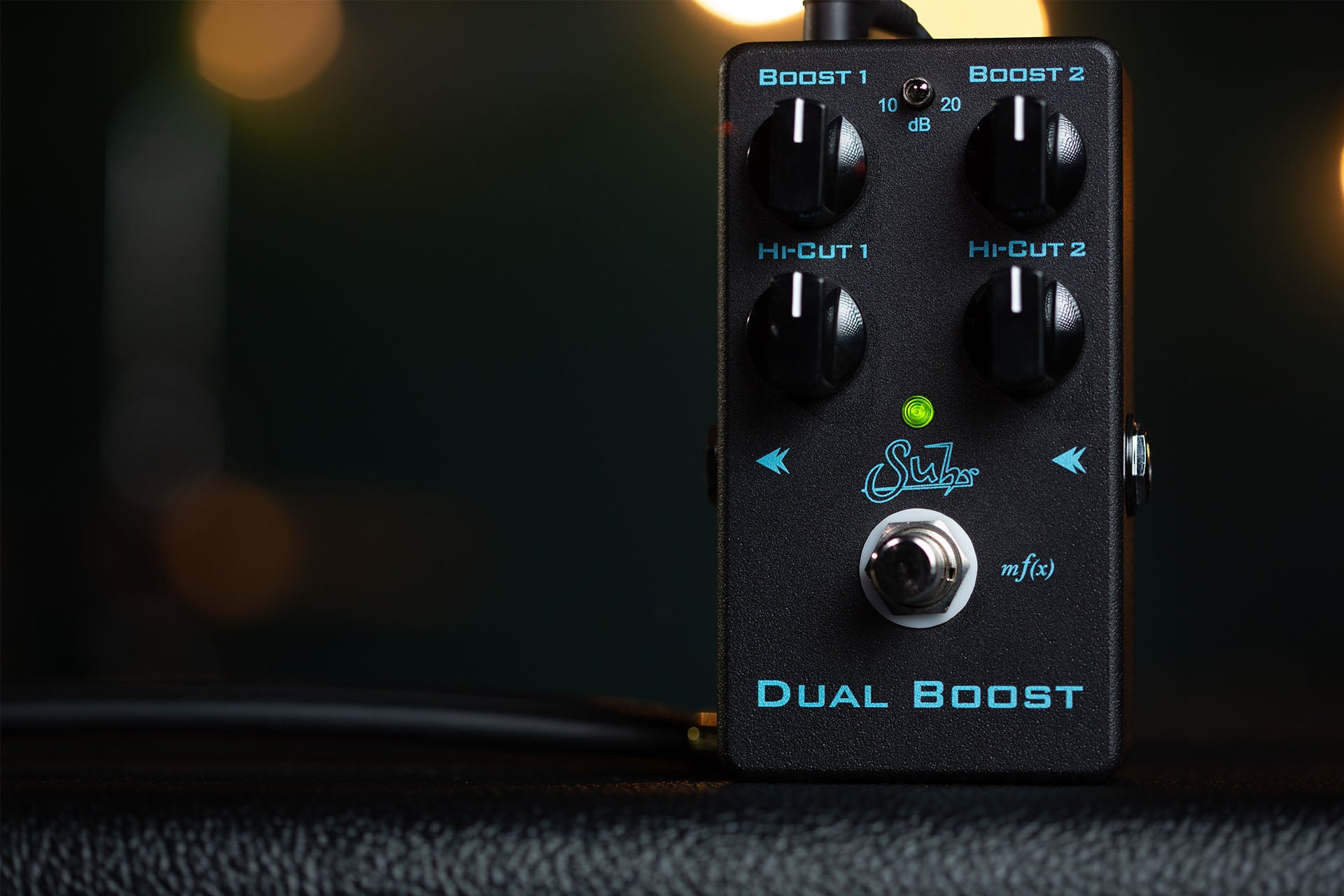

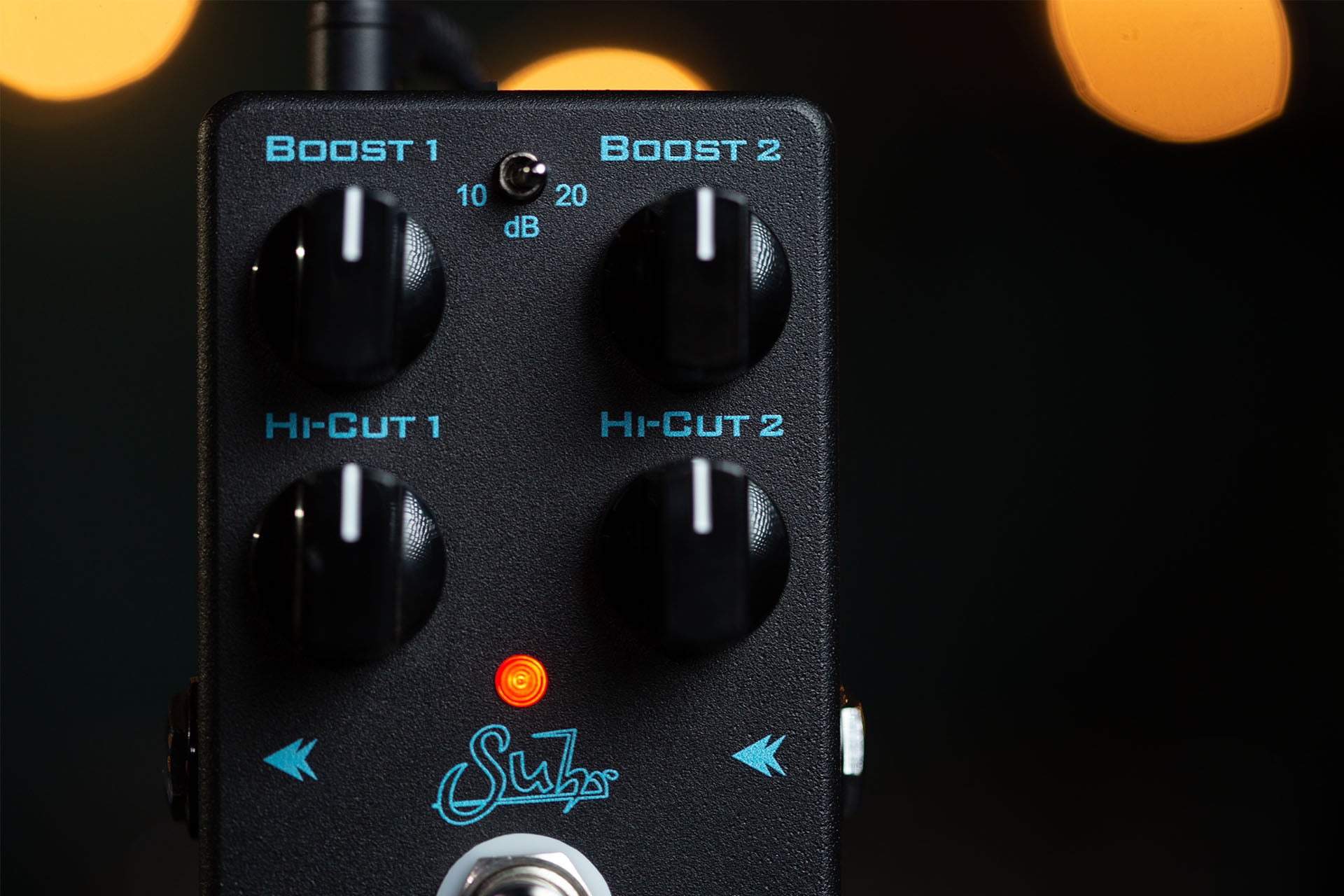

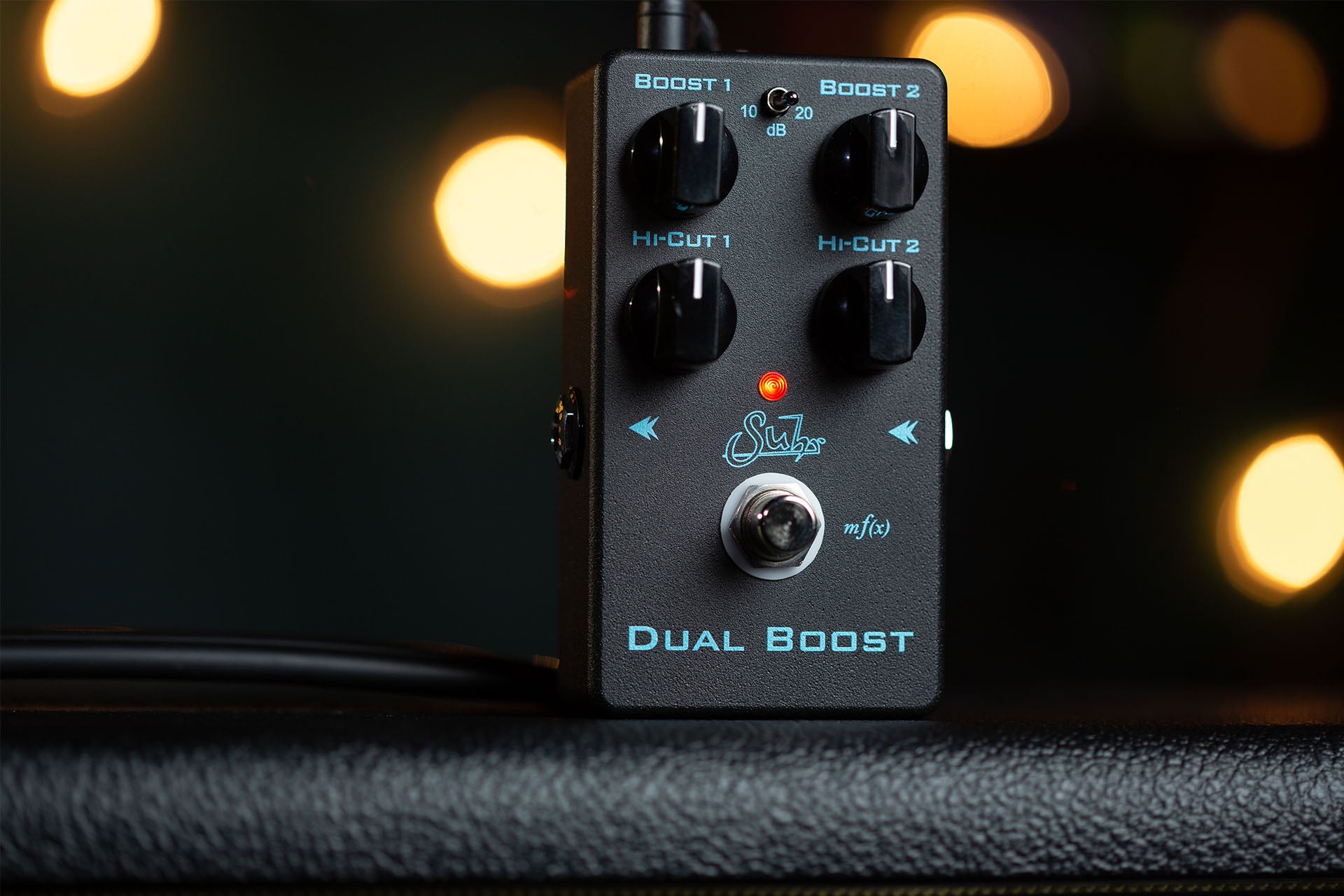

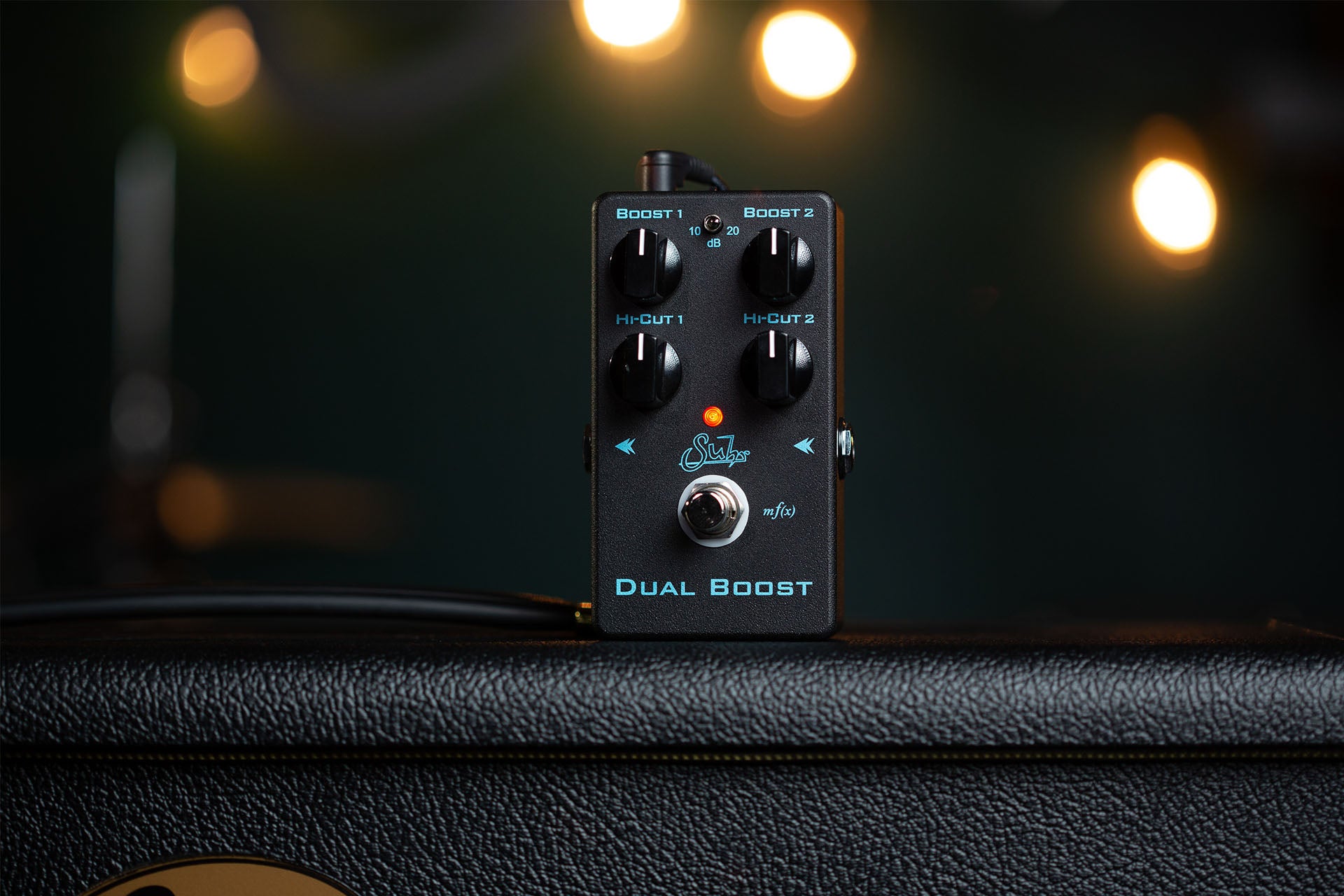

THE NEW DUAL BOOST Dual-Channel Boost

The Dual Boost is a versatile, dual-mode, transparent clean boost, housed within a compact, pedalboard friendly enclosure.

Constructed with the goal of delivering unrivaled sound quality, in an easy to use package, the Dual Boost pairs the highest quality components with an on-board charge pump circuit that delivers a pure audio path, superior dynamics, and wide dynamic range, all from a single 9-volt battery or 9-volt regulated power supply.

The Dual Boost features two independent modes, (each with their own Boost and Hi-Cut controls), a global Boost Range switch (+10dB/+20dB), and our proprietary mfx (Multi-Function Technology) switching. No matter what your needs may be, the Dual Boost offers a comprehensive solution to preserving and boosting your signal without changing or coloring your original tone.

DUAL CHANNEL BOOST/BUFFER/LINE DRIVER

Two channels of pristine, clean boost. Each channel has an independent Boost and Hi-Cut control. The channels are switchable via our m(fx) technology. By simply pressing and holding the footswitch for approximately one second you can switch from Boost 1 (green) to Boost 2 (red).

The selectable global boost range switch sets the rage of the boost to either +10dB or +20dB.

ULTIMATE QUALITY

The Suhr Dual Boost is built with ultra low distortion and low noise components that have been selected for superior signal transparency. The internal charge pump circuit makes for a boost pedal with increased headroom and dynamic range.

MF(X) TECHNOLOGY

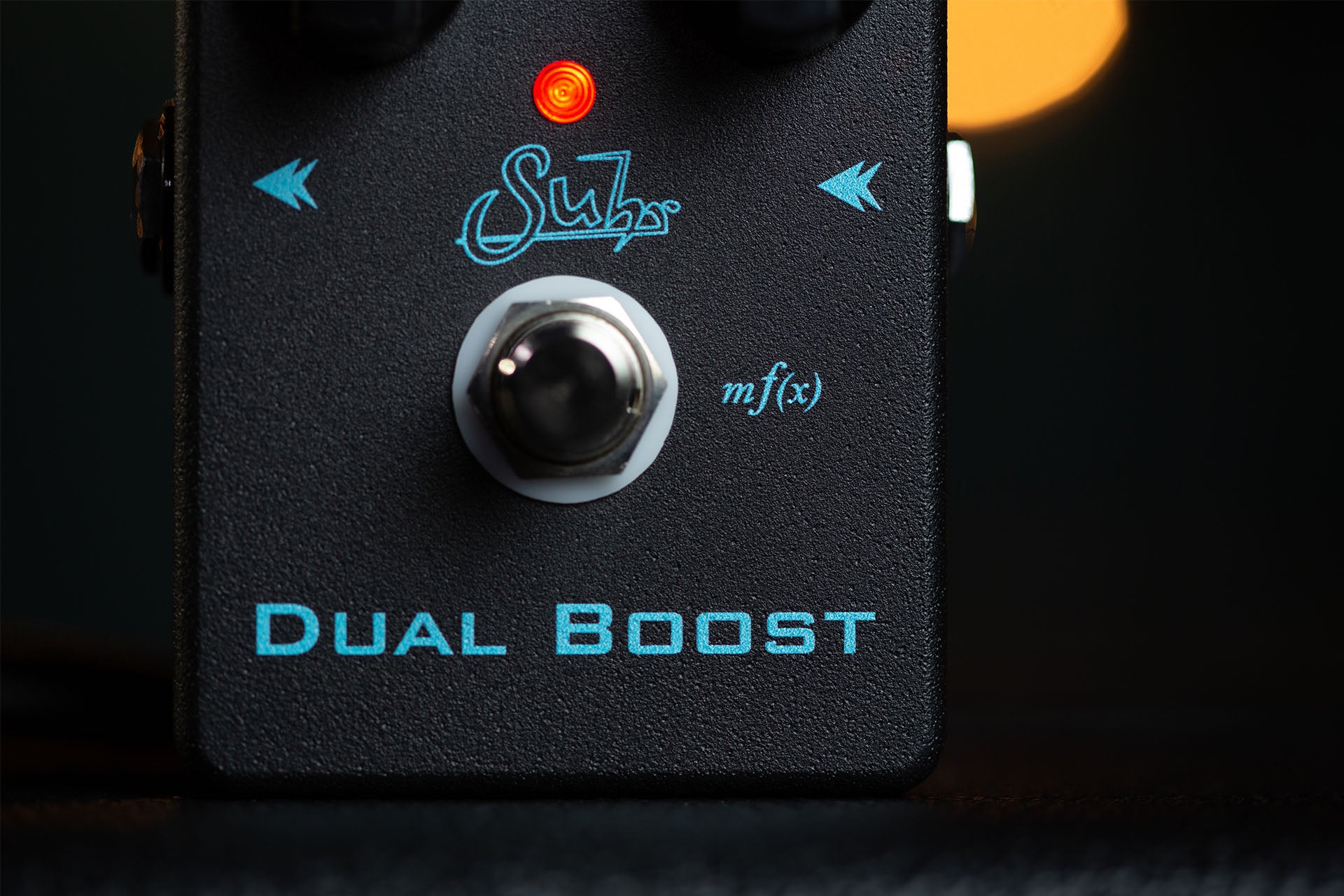

Switch between Boost 1 and Boost 2 in mid performance by pressing and holding the footswitch.

ADVANCED FEATURES

Selectable Bypass Mode: Via an internal switch, you can choose to have the Dual Boost operate in true bypass, or buffered bypass modes.

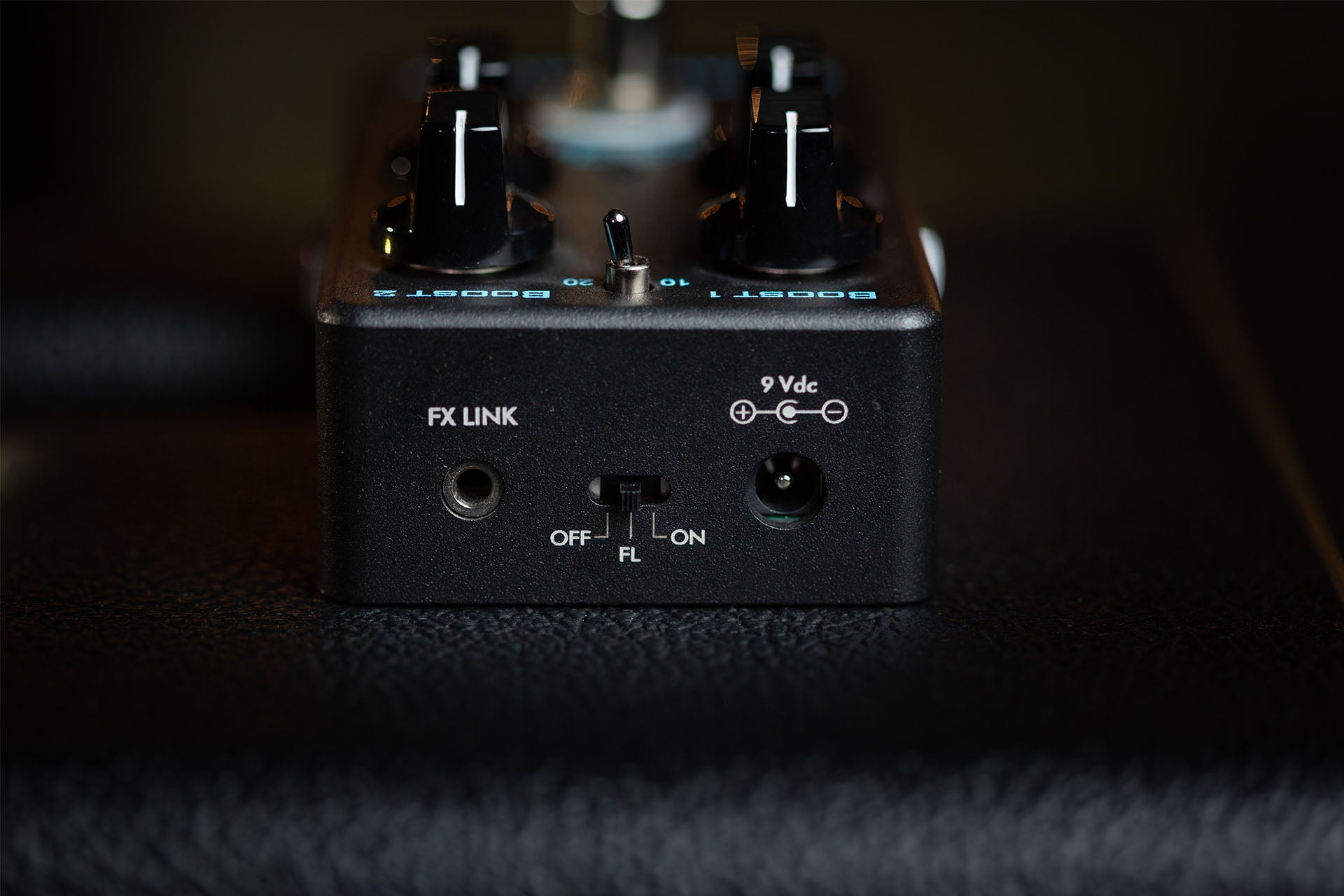

FX Link: The FX Link connector allows the pedal’s switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

Low Battery Monitor: Dual Boost incorporates a unique battery monitor that alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

SPECIFICATIONS

Street Price: $249
SKU: 03-BST-0006
Input Impedance: 1M Ohm
Output Impedance: < 1K Ohm
Power Connector: 9Vdc regulated, center negative, 2.1mm x 5.5mm
Operating Voltage: 4.5V to 9V (normal 9V)
Maximum Voltage: 10Vdc
Reverse Battery Protection: Yes
Over Voltage Protection: Yes
Current Consumption: 21mA (MAX)
Estimated Battery Life: 19 Hours (ON) to 19.775 (OFF) [Alakline]
FX Link Connector: 1/8" Mono
FX Link Max Voltage: 3.3Vdc
Shield → Tip: Activate Boost 1
Shield → Ring: Activate Boost 2
ROHS Compliant: Yes
Dimensions: 2.5”(W) x 4.5”(D) x 1.25”(H)
Weight: 0.6lb


USER GUIDE

Suhr Dual Boost User Guide
