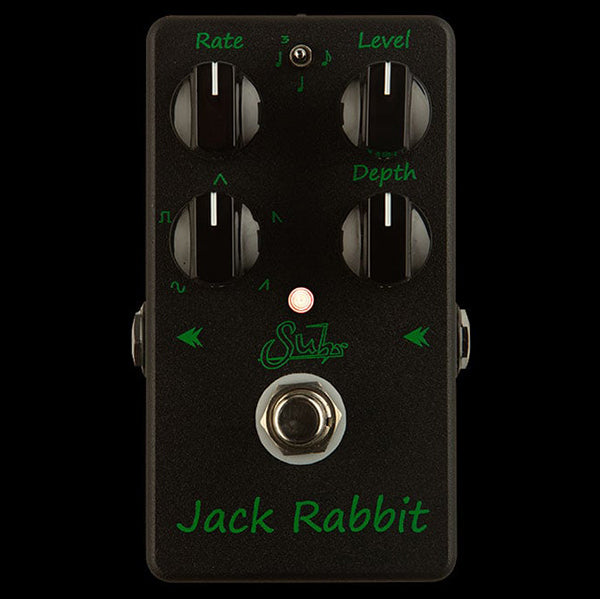

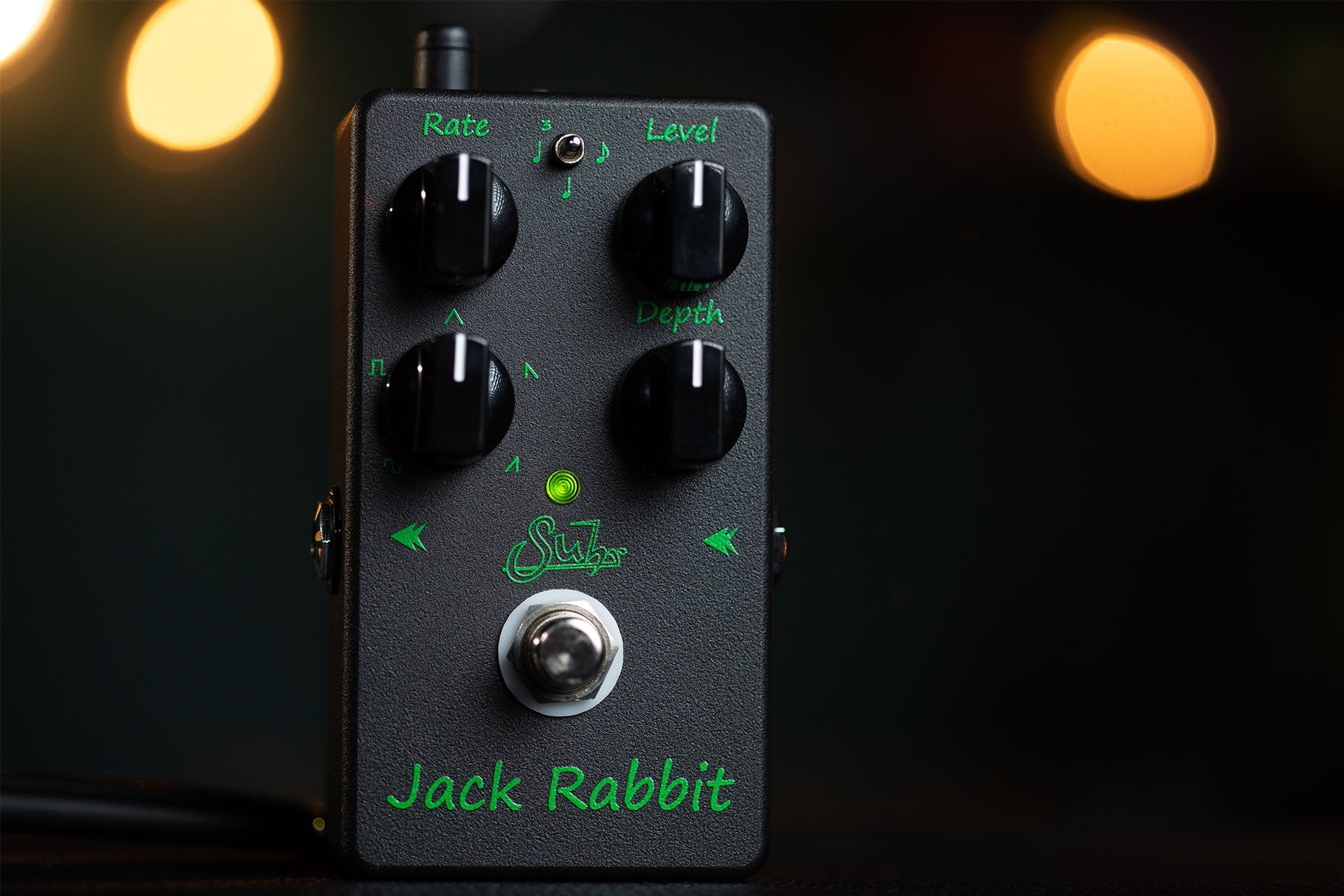

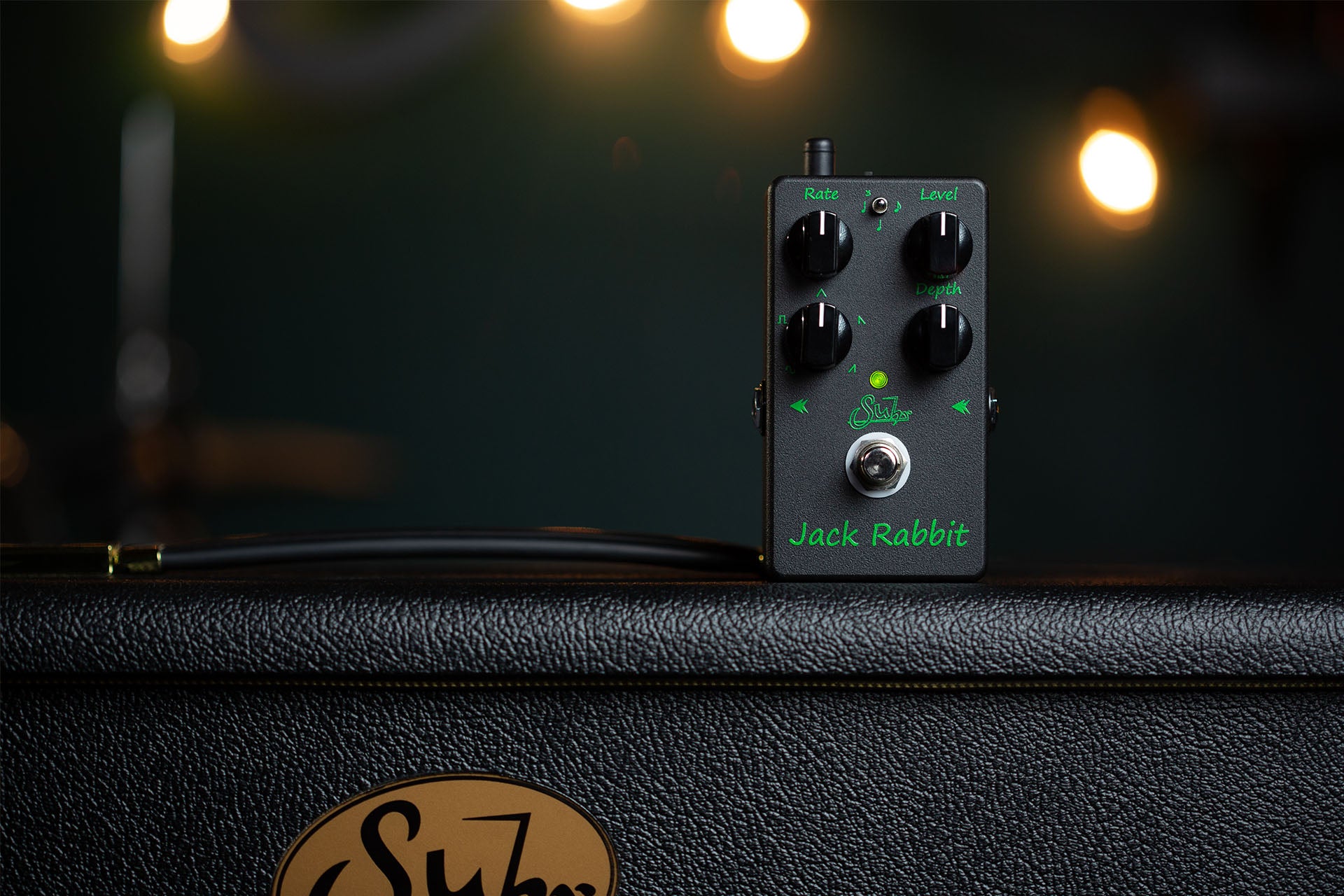

Suhr Jack Rabbit, Black Edition

Suhr Jack Rabbit, Black Edition

3 in stock

Regular price $249.00 USD
Regular price Sale price $249.00 USD
Sale Sold out
Shipping calculated at checkout.

THE NEW JACK RABBIT BLACK EDITION

TREMOLO

Jack Rabbit is a high quality analog pedal, that delivers a wide variety of tremolo effects – from warm wobble to whacked out. It features simple control over tempo by incorporating both tap, and strum tempo modes. It’s modulation rate spans from 1Hz to 20Hz and utilizes a tempo subdivision switch. The 1/8” stereo TRS input jack called FX LINK allows the pedal to be controlled by an external switch box or effects switching system with TRS control output jacks, such as the BOSS® ES-8 or ES-5.

CONTROLS

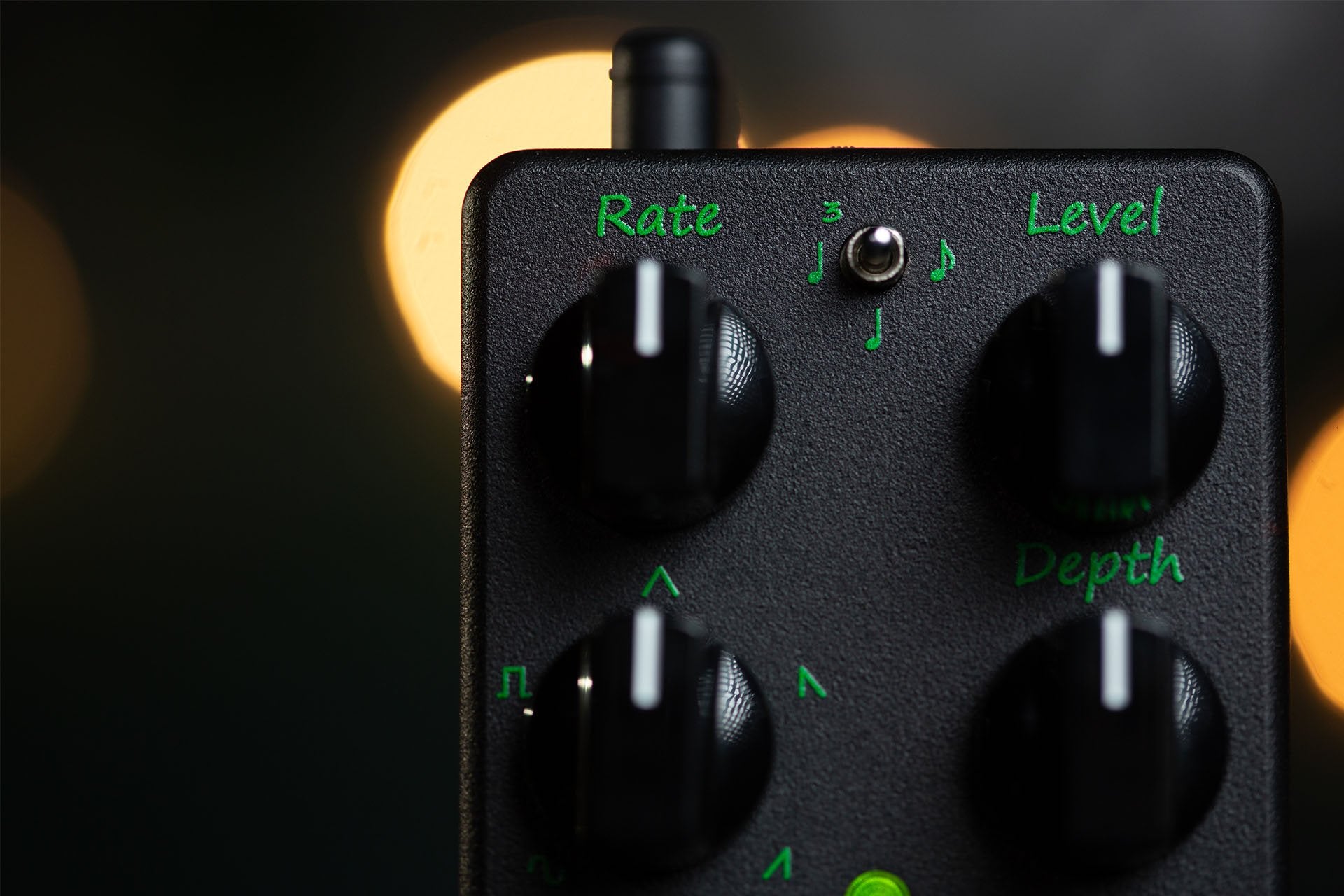

Jack Rabbit features a flexible and easy to tweak layout. Rate: Controls the speed of the tremolo effect, from 1Hz to 20Hz. Level: Controls the output level of the pedal, from +0dB to +14dB. Depth: Controls the depth of the tremolo effect. Waveform: Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.

TEMPO CONTROLS

TEMPO SUBDIVISION SWITCH: Jack Rabbit features quarter note, eighth note, and quarter note triplet subdivisions. TAP TEMPO: In addition to using the Rate control, the tempo can be set by using the built in tap tempo and strum tempo modes. Tap tempo is accessed by pressing and holding Jack Rabbit’s footswitch for approximately one second (please see the manual for details).

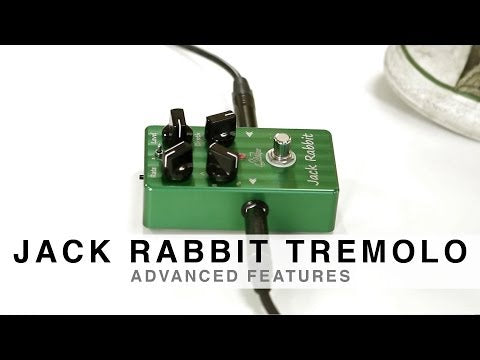

ADVANCED FEATURES

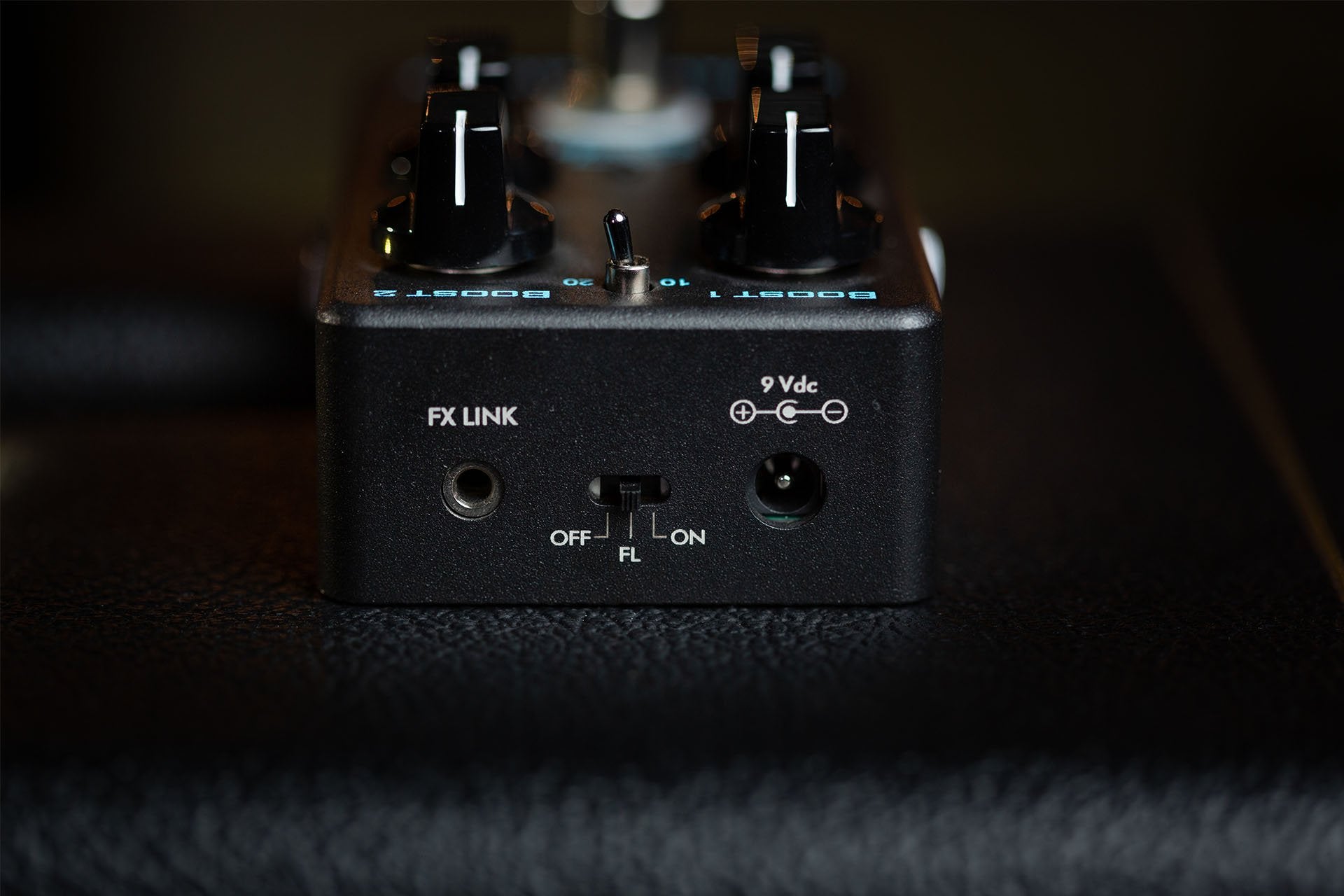

True Bypass: Jack Rabbit is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off. FX Link: The FX Link connector allows the pedal’s switching and tap tempo function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state. Low Battery Monitor: A unique battery monitor circuit alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

SPECIFICATIONS

Street Price: $249
SKU: 03-JAC-0002
Input Impedance: 1M Ohm
Output Impedance: 600 Ohm
Power Connector: 9Vdc regulated, center negative, 2.1mm x 5.5mm
Operating Voltage: 5V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Reverse Battery Protection: Yes
Over Voltage Protection: Yes
Current Consumption: < 20mA
Estimated Battery Life: 25-50 hours of continuous use
FX Link Connector: 1/8" Stereo
FX Link Max Voltage: 3.3Vdc
Shield → Tip: Activate On/Off
Shield → Ring: Activate Tap Tempo
ROHS Compliant: Yes
Dimensions: 2.5”(W) x 4.5”(D) x 1.25”(H)
Weight: 0.75lb


USER GUIDE

Suhr Jack Rabbit User Guide
