John Suhr Technologies

Suhr Reactive Load I.R.

Suhr Reactive Load I.R.

2 in stock

Regular price $599.00 USD
Regular price Sale price $599.00 USD
Sale Sold out
Shipping calculated at checkout.

REACTIVE LOAD I.R.

EVERYTHING YOU NEED, NOTHING YOU DON’T.

The new Reactive Load I.R. builds upon the legacy of what is already widely regarded as the industry standard for accurate speaker cabinet load replacement: the original Suhr Reactive Load. Reactive Load I.R. incorporates exciting new features to the groundbreaking design of the original Reactive Load – making it the ultimate all-in-one solution for speaker cabinet replacement

As the name suggests, Reactive Load I.R. adds impulse response technology to the original Reactive Load, allowing you to quickly and easily access an array of an expertly mic’d speaker cabinets. It comes preloaded with 16 Suhr speaker cabinet impulse responses captured by Celestion. Reactive Load I.R. is an open system, so you can load 3rd party impulse responses via the USB port.

PRACTICE

Reactive Load I.R. is also the ideal practice tool. The auxiliary input allows you to plug in your smartphone or other audio source and JAM along to your favorite songs through the headphone output, all while using your tube amp.

PLAYING LIVE

The Reactive Load I.R. eliminates the need to mic your speaker cabinet and gives you the ability to send the FOH engineer a perfectly mic’d guitar sound that is consistent night after night, without mic bleed issues.

Pre-loaded with authentic Suhr cabinets.

Included with Reactive Load I.R. are 16 impulse responses of authorized Suhr speaker cabinets created by Celestion. Included are impulse responses from the Suhr Badger, Bella, Hedgehog, PT, and 412 cabinets. For a full list of included impulse responses, please see the user guide.

Reactive Load I.R. is an open system, which means you can connect it via USB to a computer and load your favorite third party impulse responses.

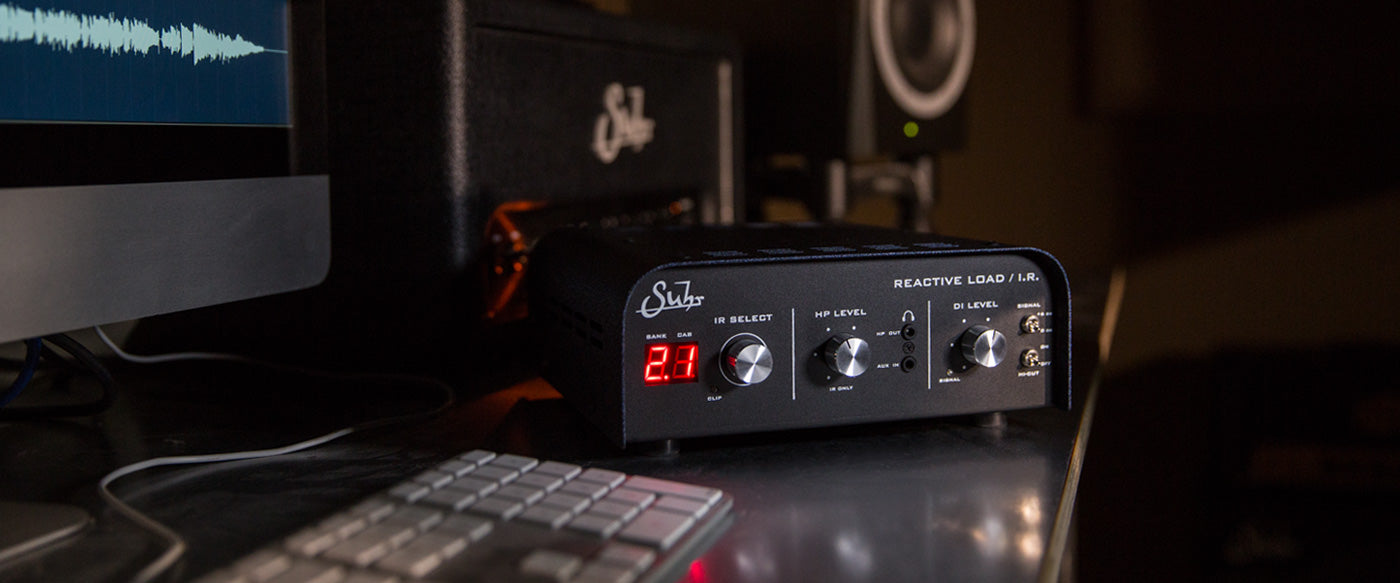

The best partner in the bedroom.

Silently practice with your tube amp. No DAW required.

Connect your tube amp and headphones to the Reactive Load I.R. You’ll hear the I.R. processed signal through the headphones, and if you want to jam along with tracks, no problem. Connect any stereo 1/8″ audio source to the AUX IN connection on the Reactive Load I.R. and you’ll hear the I.R. processed signal along with your backing tracks through the headphones.

Industry standard reactive load.

The original Reactive Load is renowned by many as the standard for speaker cabinet load replacement. The same dynamic, analog accurate, load technology is at the heart of the Reactive Load I.R.

The load circuitry has been meticulously designed to preserve the character, nuance of tone and the essential feeling of being connected to a real cabinet. The addition of impulse response technology allows for speaker cabinets and microphones to be sampled, not just simulated, making I.R.s sound virtually indistinguishable from a real cabinet and mic.

SPECIFICATIONS

STREET PRICE: $599
SKU: 07-RCL-0002
SPEAKER INPUT IMPEDANCE: 8 Ohm
BALANCED LINE OUTPUT IMPEDANCE: 600Ω (Maximum)
UNBALANCED LINE OUTPUT IMPEDANCE: 600Ω (Maximum)
MAXIMUM RECOMMENDED INPUT POWER: 150 Watts RMS
INCLUDED SPEAKER IMPULSE RESPONSES: Badger 1x12 - Celestion Vintage 30
Bella 1x12 - Celestion V-Type
PT 2x12 - Celestion Creamback
Hedgehog 2x12 - Celestion G12-65
Suhr 4x12 - Celestion Greenback
Suhr 4x12 - Celestion Vintage 30
I.R. FORMAT: .WAV, Mono, 24bit, 48kHz, 20.5 ms
(I.R.s greater than 20.5 ms will be truncated to 20.5 ms)
I.R. OUTPUT LATENCY: 1.2 milliseconds
POWER SUPPLY: Included. 9Vdc, center negative, 2.1mm x 5.5mm
OPERATING VOLTAGE: 9Vdc
MAXIMUM VOLTAGE: 12Vdc
CURRENT CONSUMPTION: <200mA
ROHS COMPLIANT: Yes
DIMENSIONS: 8.8" (W) x 8.9" (D) x 3.6" (H)
WEIGHT: 6.7lb



USER GUIDE

Suhr Reactive Load I.R. User Guide
