John Suhr Technologies

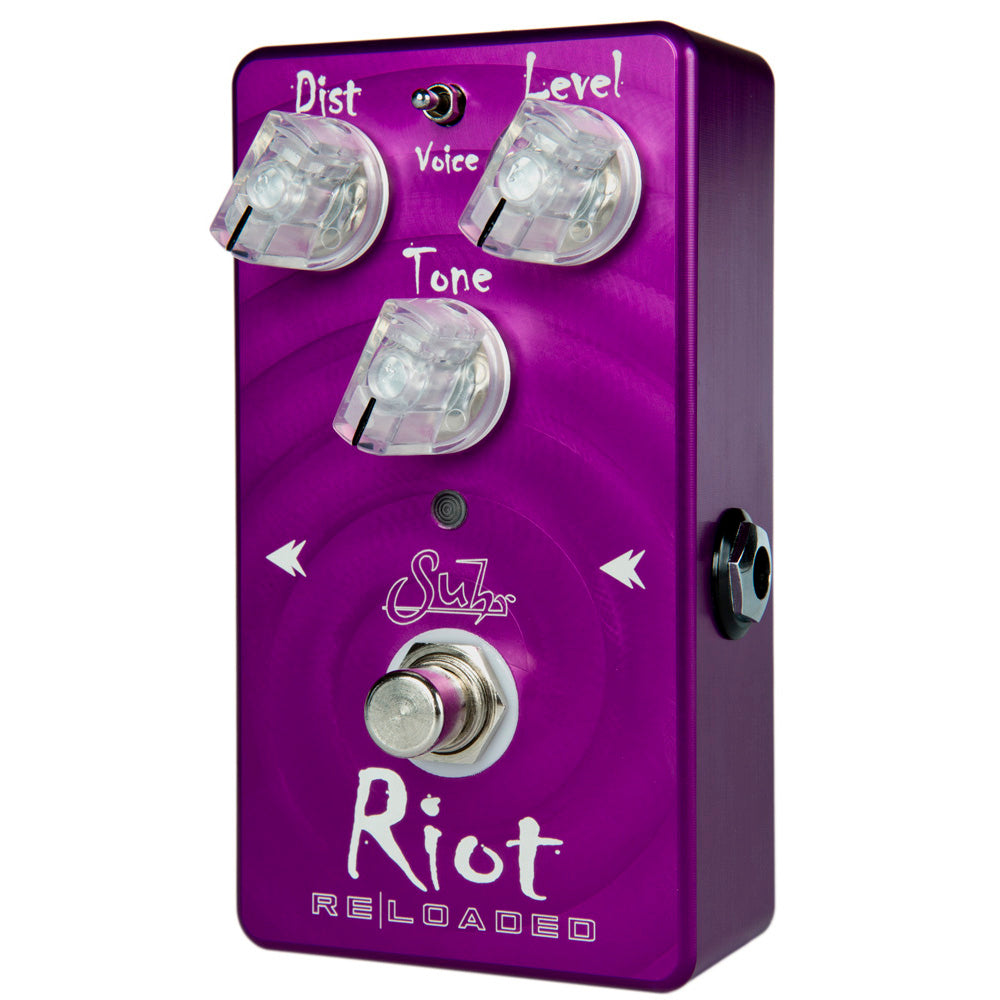

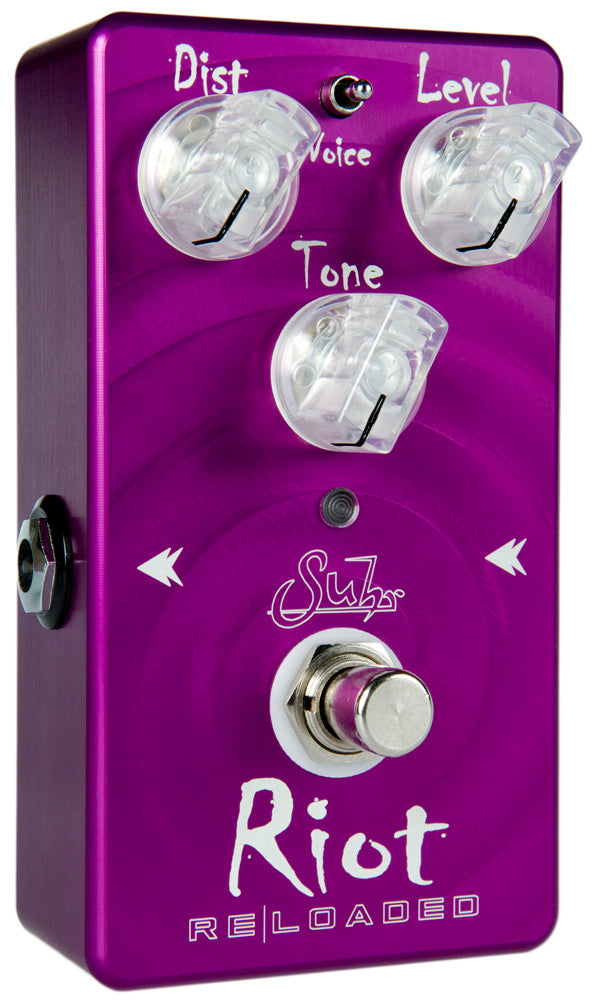

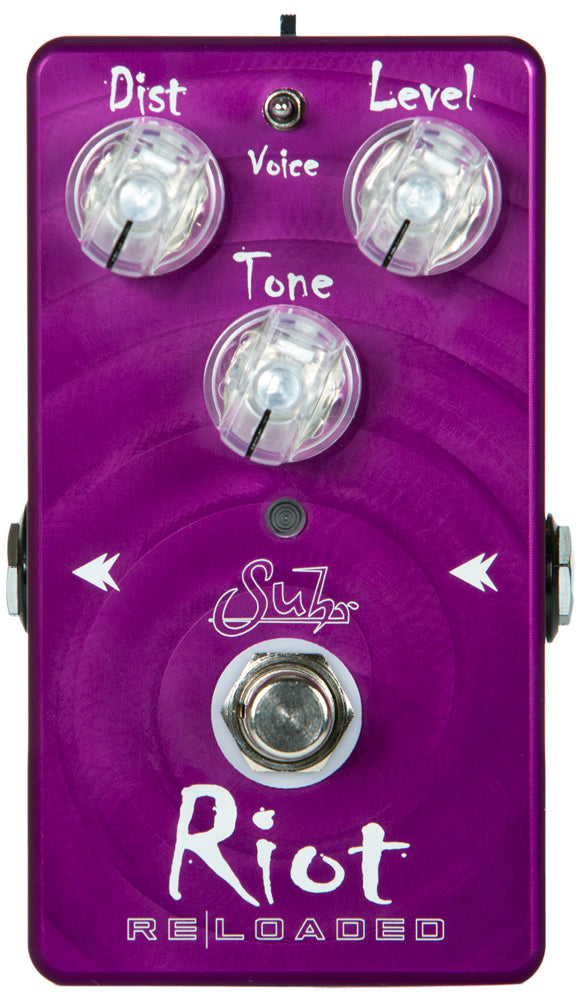

Suhr Riot Reloaded Distortion Pedal

Suhr Riot Reloaded Distortion Pedal

3 in stock

Regular price $169.00 USD
Regular price $200.00 USD Sale price $169.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

In 2009, Suhr shipped their very first Riot distortion pedal. Riot became an overnight success, offering players the ability to transform a clean amp into a versatile Classic Rock tone machine.

Riot Reloaded is the result of countless hours of listening, testing, and tweaking their original distortion circuit to create a pedal that is amp-like, aggressive, in your face, and features more gain (30% more than our original Riot).

An excellent companion to the original Riot, Riot Reloaded is a versatile distortion pedal that delivers a broad spectrum of Hi-Gain tones, with an amp-like feel, in a compact stompbox.

AMP-LIKE PERFORMANCE

Riot Reloaded responds dynamically to every nuance of your playing, just like the overdrive channel of a modded amplifier. With a simple twist of your volume knob, you can easily morph from mild chunk to full on metal assault.

GAIN TO SPARE

Riot Reloaded offers over 30% more gain than the original Riot. Suhr's engineers balanced the dual gain stages to increase saturation and upper harmonics, resulting in improved midrange articulation, more sustain, and a tighter three-dimensional sound.

TONE SHAPING

The tone control was modified to emphasize upper mid frequencies for a sweeter, more cutting tone, without sounding harsh or fatiguing.

VOICE SWITCH

The versatile three position voicing switch provides Classic, Modern (Full bodied), and Scooped EQ settings.

True Bypass

Riot is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off.

FX Link

The FX Link connector allows the pedal’s switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

Low Battery Monitor

Riot incorporates a unique battery monitor that alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

SPECIFICATIONS

STREET PRICE: $200
SKU: 03-RIO-0002
INPUT IMPEDANCE: 1M ohm
OUTPUT IMPEDANCE: 600 ohm
POWER CONNECTOR: 9Vdc, center negative, 2.1mm x 5.5mm
OPERATING VOLTAGE: 4V to 18V (nominal 9V)
MAXIMUM VOLTAGE: 20Vdc
REVERSE BATTERY PROTECTION: Yes
OVER VOLTAGE PROTECTION: Yes
CURRENT CONSUMPTION: 8mA
ESTIMATED BATTERY LIFE: 75 – 100 hours of continuous use
DIMENSIONS: 2.5”(W) x 4.5”(D) x 1.25”(H)
WEIGHT: 0.75lb
FX LINK CONNECTOR: 1/8" Mono
FX LINK MAX VOLTAGE: 3.3Vdc
SHIELD → TIP: Activate Pedal
ROHS COMPLIANT: Yes
AGENCY APPROVALS: N/A



USER GUIDE

Suhr Riot Reloaded User Guide
